5200 Multi Purpose and 5200 Multi Purpose HF Gas Analysers
05230001A / Revision 9
57
6.7.5 Starting a new data log batch
1. With the Measurement screen displayed, press the soft key. The Data
logging screen will then be displayed (see Figure 42).
2. Press the soft key. A new batch will then be started within the data log (and
the batch sequence number of the next measurement will be reset to "1").
6.7.6 Outputting the data log
2. Use the and soft keys to highlight the "Output log" option, then press
the soft key. The output of the data log will be initiated, and the
Measurement screen will then be shown again.
2. To store the measurement data in
the data log, press the soft
key.
A Log taken screen (Figure 43) is
then displayed for a few seconds to
verify that the measurement data
has been stored in the data log,
then the Measurement screen is
shown again

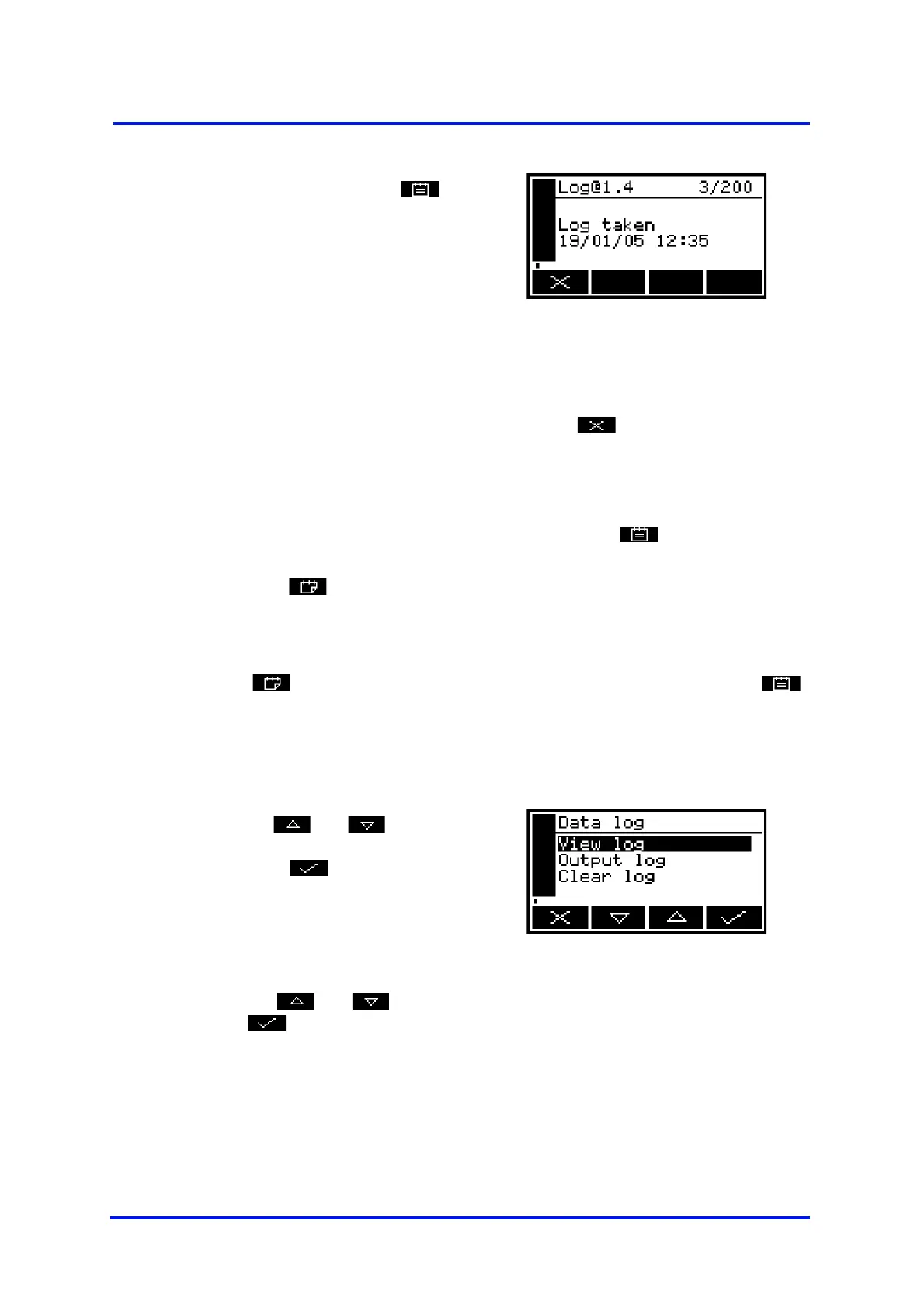

Figure 43 - The Log taken screen
+
To return to the Measurement screen without storing the captured sample
measurement data in the data log, press the soft key when the data
logging screen is displayed.
+
No new measurement data is entered into the data log when you press
the soft key. To enter data into the new batch, you must press the
soft key again, or use the procedure given in Section 6.7.4.
1. With the Menu screen displayed,
use the and soft keys to
highlight the "Data log" option, then
press the soft key. The Data
log options screen will then be
displayed, as shown in Figure 44.
Figure 44 - The Data log options screen
+
The data log will only be output if you have correctly configured the serial
output parameters as described in Section 6.7.2.
