5200 Multi Purpose and 5200 Multi Purpose HF Gas Analysers
05230001A / Revision 9
81
APPENDIX
A4 RS232 CONNECTION DETAILS
A4.1 Overview
The serial port on the rear of the Multi Purpose (see Figure 2) is an RS232 ± 5.5 V
9-way ‘D’ type connector.
The pins on the connector are used as shown in Figure A1 below:

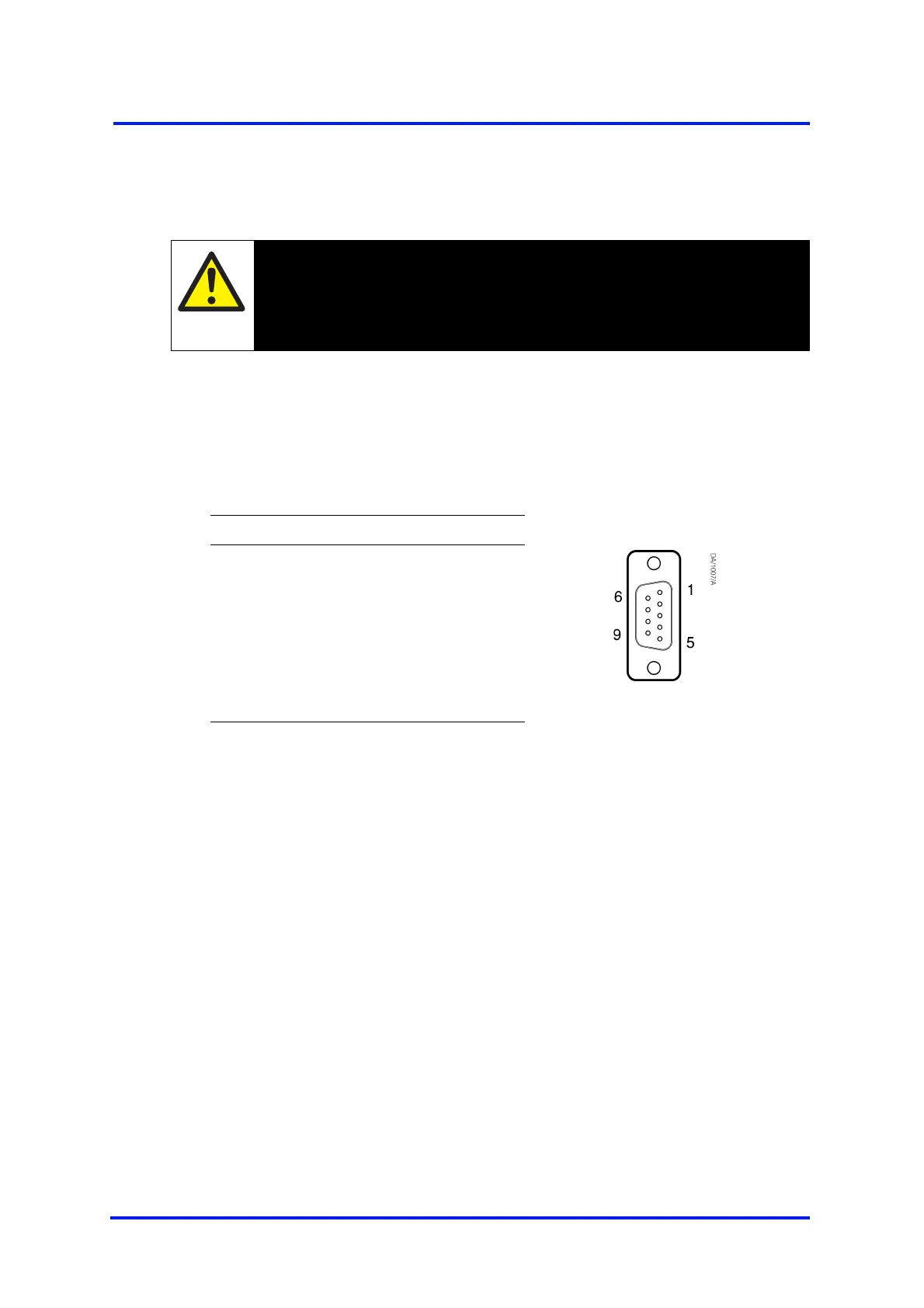

Figure A1 - RS232 connection pin details
A4.2 Connecting the Multi Purpose to a PC
The Multi Purpose can be directly connected to the 9-way ‘D’ type serial port (usually
designated "COM1" or "COM2") on your PC. To comply with EMC immunity
standards, we recommend that you use the serial output cable supplied. If you do not
use the cable supplied, use a compatible 9-way ‘D Null Modem’ cable (with a
recommended maximum length of 3 m), with female-to-female connectors.
If your PC only has USB serial ports, use a commercially available 9-way ‘D’ type serial
to USB converter to connect the Multi Purpose to one of the serial ports.
WARNING
Ensure that the electrical installation of any equipment connected to the
Multi Purpose conforms with all applicable local and national electrical
safety requirements.
Pin(s) Use
1 Not used
2 Rx (to Multi Purpose)
3 Tx (from Multi Purpose)
4 Not used
50 V
6, 7, 8, 9 Not used
