4.8 The Settings screen
Alternatively, press the soft key to display the Menu screen again.
4.9 The Information screen
Note that the information shown on the screen will vary, depending on the Multi
Purpose model.
After viewing (and if necessary recording) the information shown on the screen, press
the soft key to display the Settings screen again, or press and hold the soft
key to show the Measurement screen again.

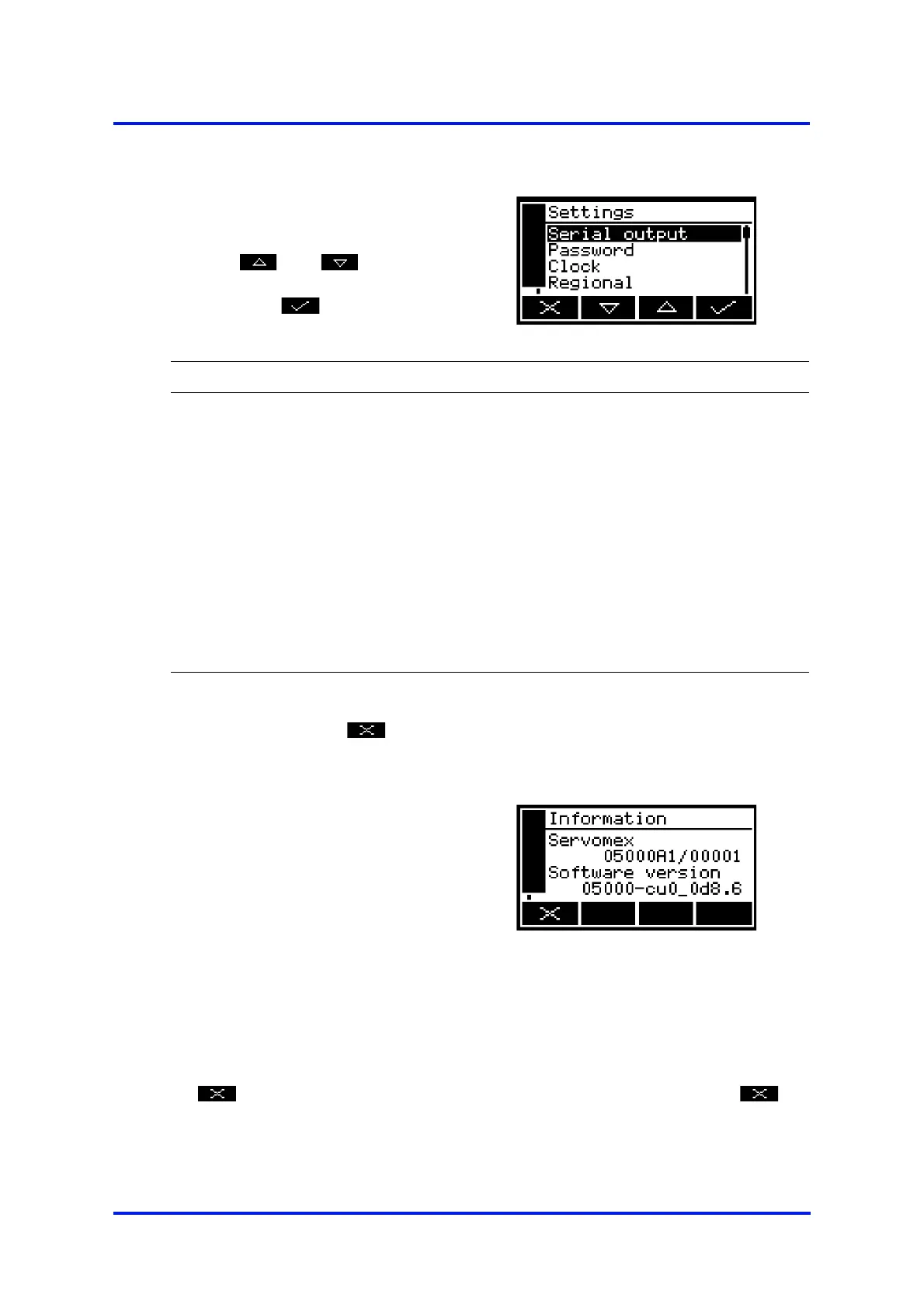

The Settings screen is shown in
Figure 6.
Use the and soft keys to
highlight the required screen option,
then press the soft key to display
the selected screen, as shown below:
Figure 6 - The Settings screen
Screen Use Section
Serial output Configuring the serial output parameters 6.7.2
Password Changing the password. 5.3.2
Clock Setting the clock time and/or date. 5.3.2
Regional Changing regional settings (language and so on). 5.3.3
Backlight Adjusting the backlight timer duration. 6.8.1
Contrast Adjusting the contrast of the screen. 6.8.2
Power save * Selecting/deselecting ‘power save’ operation. 5.3.4
Security Selecting the security level. 5.3.1
Information Viewing Multi Purpose system information. 4.9
* Only available on a Multi Purpose with the optional rechargeable battery fitted.
A typical Information screen is shown
in Figure 7.
This screen shows information (such
as the Multi Purpose serial number
and the version of the operating
software embedded in the Multi
Purpose) which is useful to the
Servomex support team.
Figure 7 - Typical information screen
+
You may be asked to provide the information from this screen to the
Servomex support team; for example, as an aid to fault diagnosis.
