5200 Multi Purpose and 5200 Multi Purpose HF Gas Analysers
05230001A / Revision 9
59
6.7.9 Printing a sample measurement report
If you have selected printed outputs (see Section 6.7.1), you must manually initiate the
printing of each sample measurement report.
Press the soft key when you want to print a report. Refer to Appendix A3 for the
format of the printed sample measurement report.
6.8 Adjusting the display
At any time, you can adjust the screen display to suit the ambient light conditions, as
described in Sections 6.8.1 and 6.8.2.
6.8.1 Adjusting the backlight timer
When the Multi Purpose is first switched on, the backlight goes on to illuminate the
screen. If no soft key is pressed, the backlight will remain on for the preset ‘backlight
time’, and will then go off. The timer associated with the backlight time is restarted
whenever a soft key is pressed (that is, the backlight remains on for the backlight time
after the last soft key press). To adjust the backlight time:
1. On the Settings screen, highlight the "Backlight" option, then press the soft
key. The Backlight timer screen will then be displayed, as shown in Figure 47.
2. Change the backlight time (Duration) setting as required, then press the
soft key.

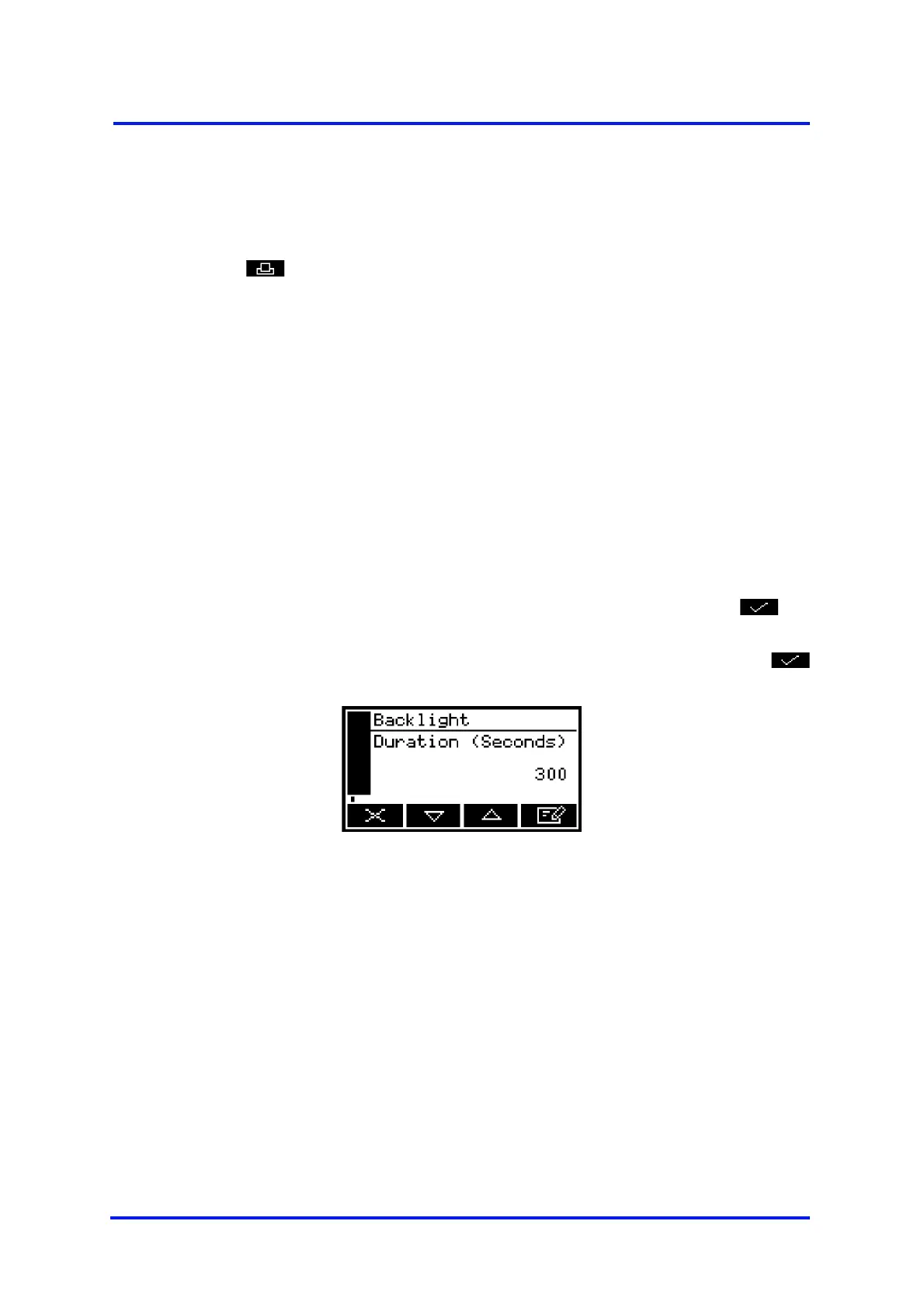

Figure 47 - The Backlight timer screen
+
The backlight time (Duration) can be set between 0 and 999 seconds. Set
the backlight time (Duration) to 0 seconds to leave the backlight permanently
switched on.
