5200 Multi Purpose and 5200 Multi Purpose HF Gas Analysers
05230001A / Revision 958
6.7.7 Viewing the data log
1. With the Menu screen displayed, use the and soft keys to highlight
the "Data log" option, then press the soft key. The Data log options screen
will then be displayed, as shown in Figure 44.
2. Use the and soft keys to highlight the "View log" option, then press
the soft key. The View log (batch) screen is then displayed, alternating with
the View log (date) screen: see Figures 45 and 46.
3. Use the and soft keys to scroll through all of the measurements
stored in the data log.
4. When you have finished viewing the data log, press the soft key or the
soft key to display the Data log options screen again.
6.7.8 Clearing the data log
1. With the Menu screen displayed, use the and soft keys to highlight
the "Data log" option, then press the soft key. The Data log options screen
will then be displayed, as shown in Figure 44.
2. Use the and soft keys to highlight the "Clear log" option, then press
the soft key. The screen will then show an "Are you sure?" message:
• Press the soft key to clear the data log. The Data log options screen is
then displayed again.
• Press the soft key to display the Data log options screen again without
clearing the data log.

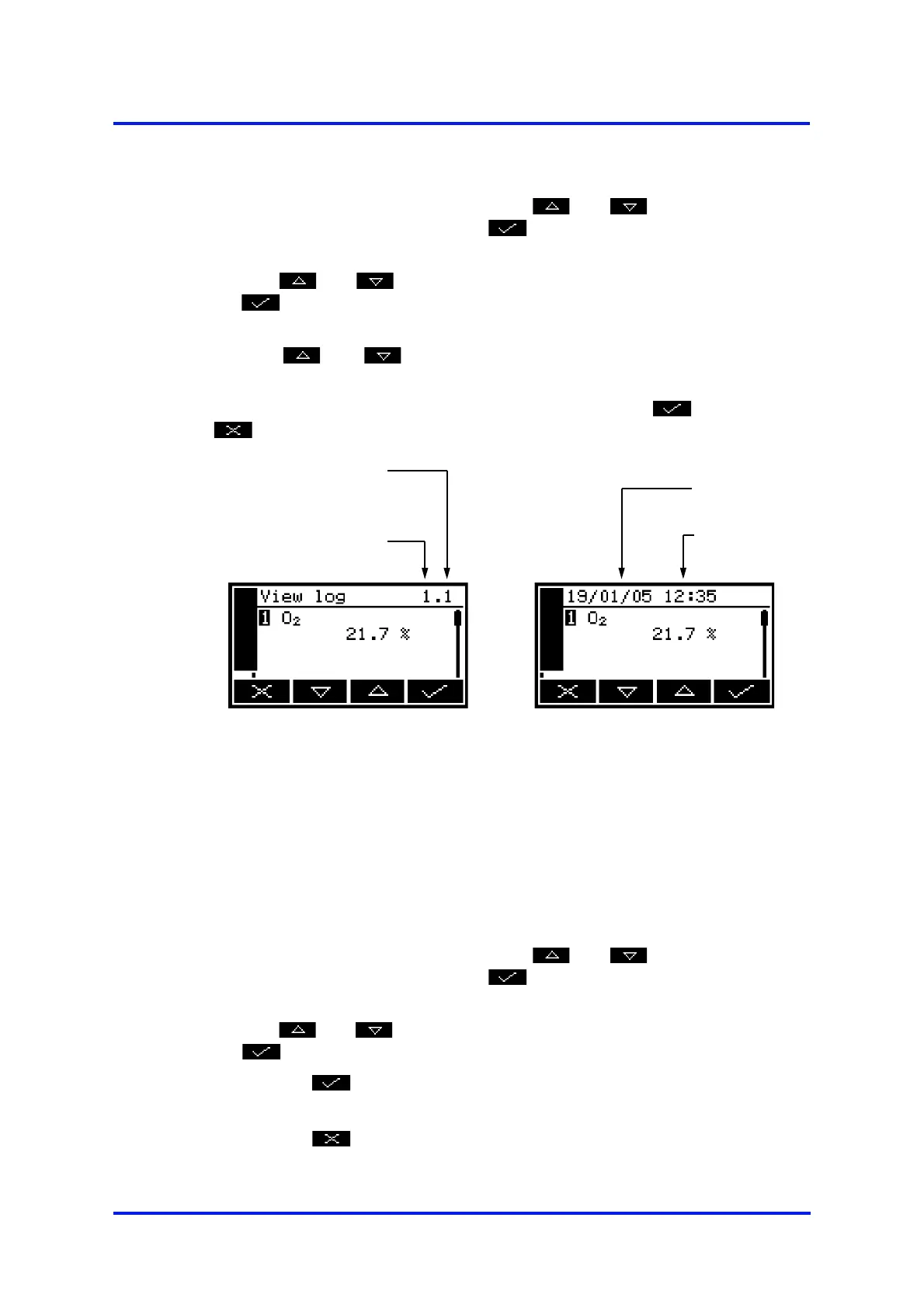

Figure 45 - The View log (batch)
screen
Figure 46 - The View log (date)
screen
+
Ensure that you have viewed the data log (see Section 6.7.7) or have output
the data log if required (see Section 6.7.6) before you clear the log.
+
You cannot clear batches or individual measurements from the data log.
Batch number
Sequential number
of measurement in
the batch
Date of sample
measurement
Time of sample
measurement
