5200 Multi Purpose and 5200 Multi Purpose HF Gas Analysers
05230001A / Revision 940
2. Use the and soft keys to highlight the "X-Interference" menu option,
then press the soft key:
• If your Multi Purpose is configured for a single sample measurement, the X-
Interference offset screen is then displayed, as shown in Figure 23. Continue
at Step 4.
• If your Multi Purpose is configured for 2 sample measurements, the X-
Interference select screen will then be displayed, as shown in Figure 22.
Continue at Step 3 below.

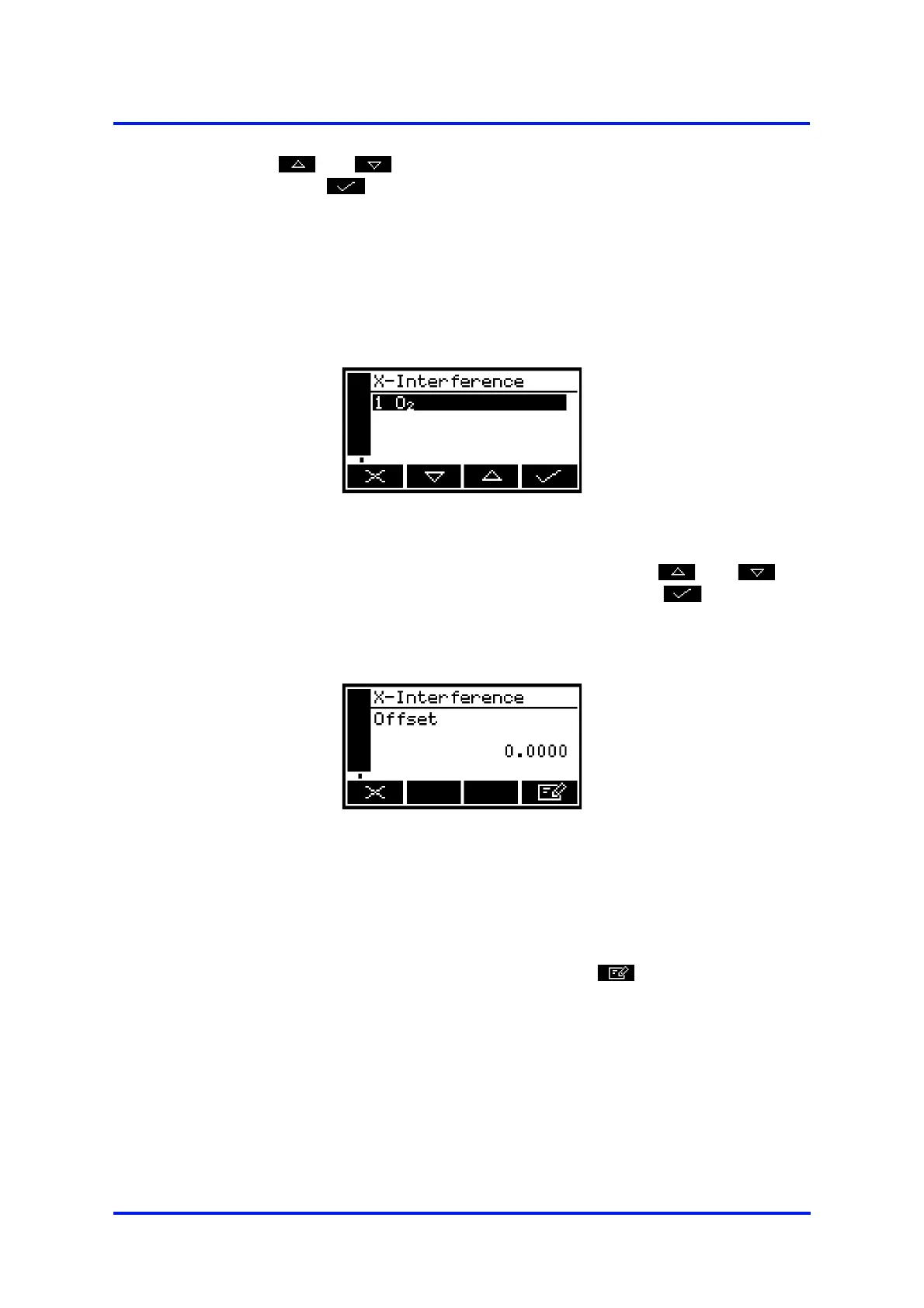

Figure 22 - The X-Interference select screen
3. With the X-Interference select screen displayed, use the and soft
keys to highlight the required measurement, then press the soft key.
The X-Interference offset screen is then displayed, as shown in Figure 23.
Continue at Step 4 below.
Figure 23 - The X-Interference offset screen
4. The offset value shown on the X-Interference offset screen is the correction
which will be applied to oxygen sample measurements before they are displayed
(or output).
If you want to change the offset value, press the soft key, then edit the
displayed offset as described in Section 4.10.
