Device structure
Nameplate positions
Operating Instructions – MOVIMOT
®
advanced
17
3.3 Nameplate positions
The 2 nameplates for MOVIMOT
®
advanced can be found on positions X and 2.
3.3.1 Overview

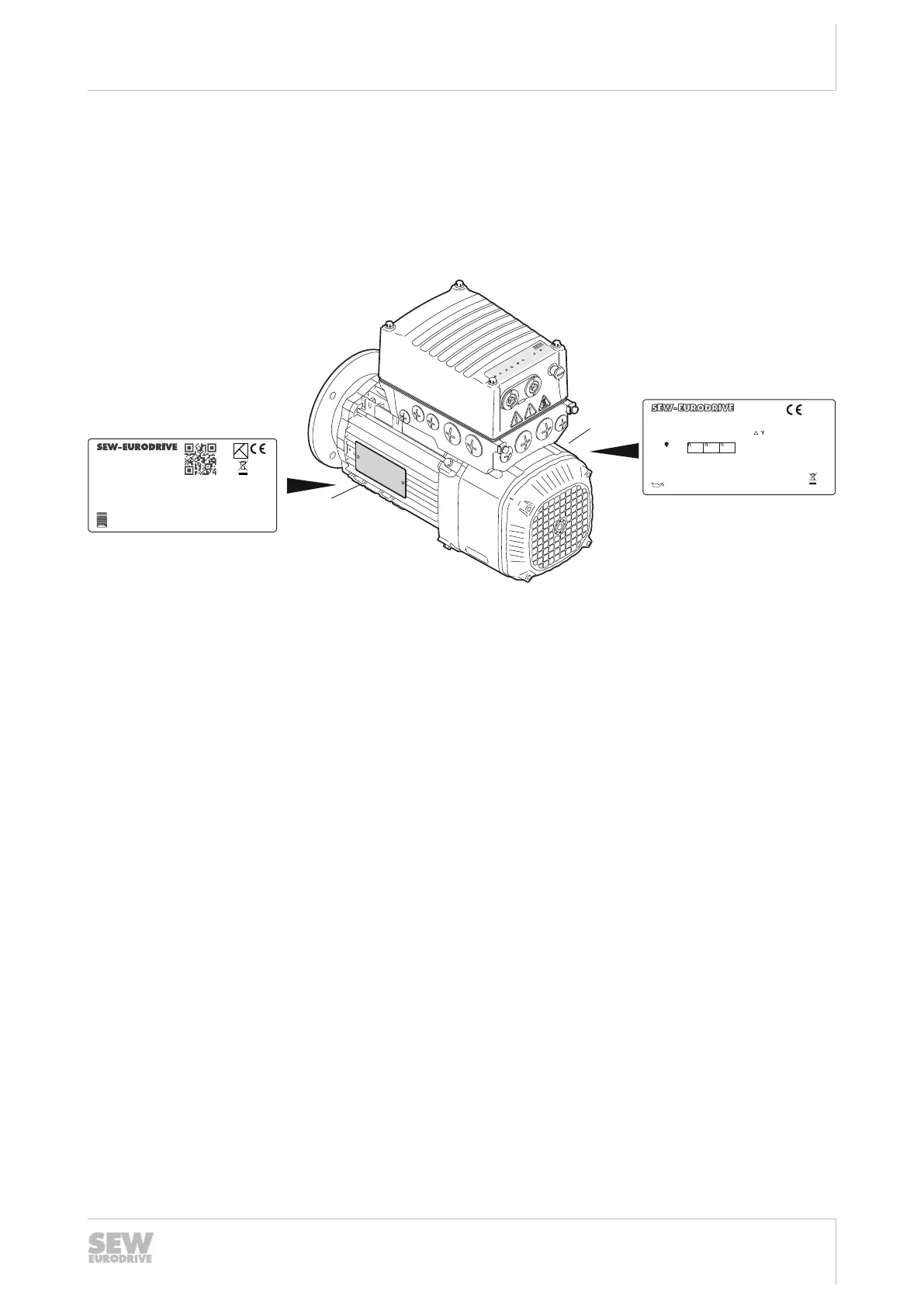

The following figure shows the positions of the nameplates:
X
2
76646 Bruchsal / Germany
KA47 DRN80M
01.1234567890.0001.20
Inverter duty
VPWM 3~IEC60034
Hz 50
kW 0.75 S1
Cos
Th.Kl.
i 19,58
kg 31.000
Nm 97 IM M1A
130(B)
100%
82.9%
0,74
r/min 1440/74 V230/400
A3,05/1,75 IE3
IP 54
/
CLP
220 Miner.Öl/0.8 l
188 578 2
Jahr 2020
Made in Germany
75%
82.9%
50%
80.7%
76646 Bruchsal / Germany
KAF127R87DRN100LS4/BE2HR/DI/DAC/EI8Z/IV
01.1234567890.0001.20
0055
IES2
3~ IEC60034 ML
P
MA
A
nRHz
kW
Nm
03
2.2
322
1:1400
fN 50...60
nA
r/min
V 0,05...65,1UN 380...500
IN 4.90
2603 382840
TEFC Made in Germany
01
FS
32164048011
25891936/EN – 05/2020
