Device structure
Example nameplate and type designation of electronics
Operating Instructions – MOVIMOT
®
advanced
23

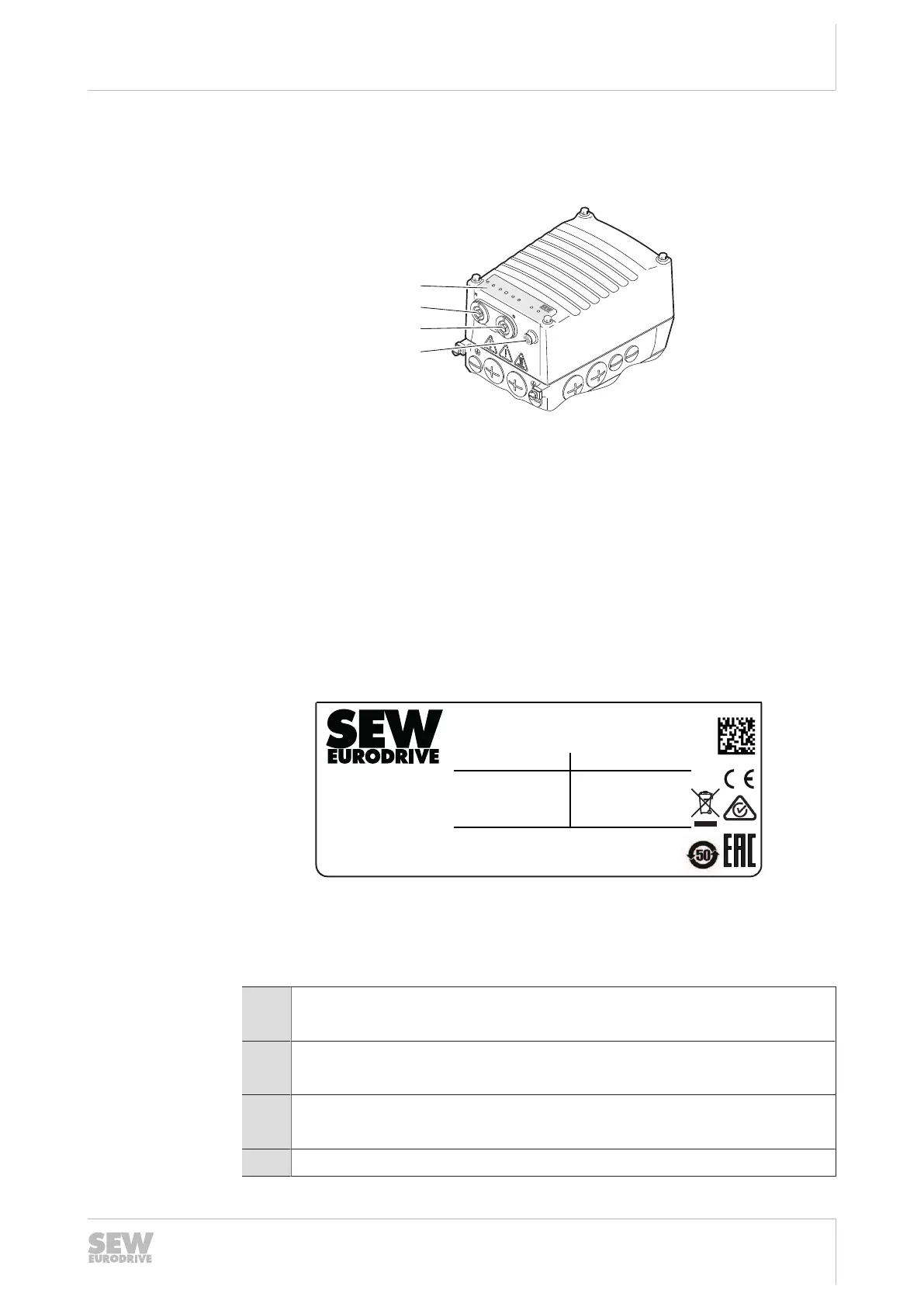

3.7.2 Electronics cover (outside)
The following figure shows one of the electronics cover designs using one size as an
example:
[1]
[2]
[3]
[4]
9007228529750667
[1] LED displays and designation plate of electronics cover
[2] Potentiometer f1 (underneath the screw plug)
[3] Potentiometer f2 (underneath the screw plug)
[4] Plug connectors
3.8 Example nameplate and type designation of electronics
3.8.1 Nameplate
The following figure gives an example of a nameplate of the electronics cover. For the
structure of the type designation, refer to chapter "Type designation of the electronics
cover".
Eingang/Input
U= AC 3x380...500V
I=
AC 1.8A
f= 50...60Hz
T= -25°C...+40°C ML 03
Status: 00 00 00 00 00 00 00 00 00
00 00 00 00 00 00 00 00 00
U= 3x0V...Uinput
I= AC 2.0A
AC 6.0AImax=
f= 0...599Hz
Ausgang/Output
Type: DBC10A-0020-503-A-000-000
S0#: 01.1234567890.0001.19
D-76646 Bruchsal
Made in Germany
18014427492841739
3.8.2 Type designation of the electronics cover
The following table shows the type designation of the electronics cover:
DBC Product family
DBC = Electronics cover Direct Binary Communication
1 Communication type
1 = Binary
0 Connection configuration
0 = M12 plug connector on electronics cover (standard)
A Communication version
25891936/EN – 05/2020
