Technical data and dimension sheets
Screw fittings
Operating Instructions – MOVIMOT
®
advanced
254

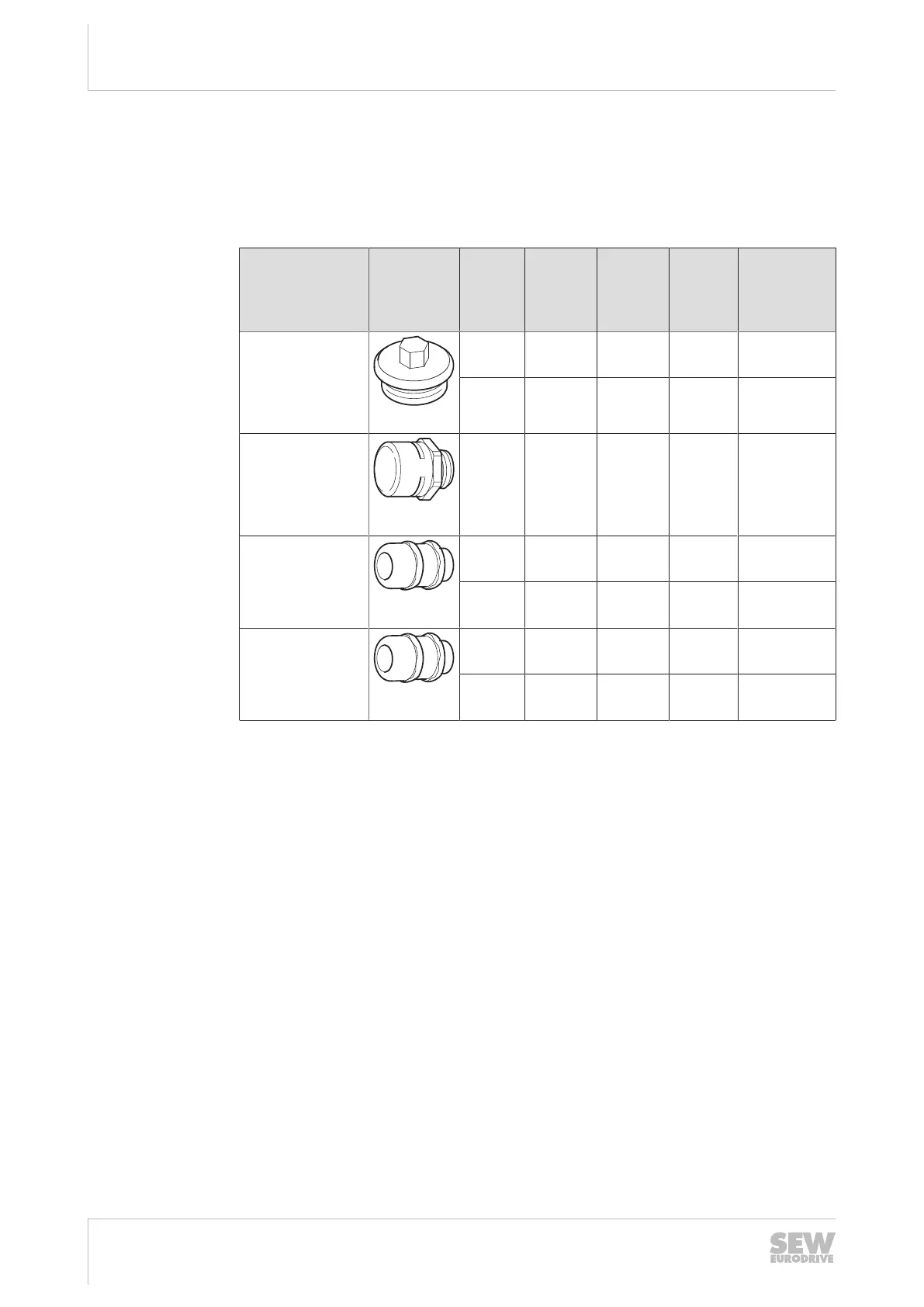

11.8 Screw fittings
The following tables show the screw connections available from SEW-EURODRIVE.
11.8.1 Cable glands / screw plugs / pressure compensation
Type of screw
fitting
Image Con-
tent
Size Tighten-
ing
torque
1)
Outer
cable
diame-
ter
Part num-
ber
Screw plugs
external
hexagon (made
of stainless
steel)
10
pieces
M16×1.
5
6.8Nm – 18247342
10
pieces
M25×1.
5
6.8Nm – 18247350
Pressure com-
pensation
screw fittings
(made of stain-
less steel)
1 piece M16×1.
5
4Nm – 28214617
EMC-compliant
cable gland
(brass,
nickel-plated)
10
pieces
M16×1.
5
4Nm 5 to
9mm
18204783
10
pieces
M25×1.
5
7Nm 11 to
16mm
18204805
EMC-compliant
cable gland
(made of stain-
less steel)
10
pieces
M16×1.
5
4Nm 5 to
9mm
18216366
10
pieces
M25×1.
5
7Nm 11 to
16mm
18216382
1) The specified torques must be adhered to with a tolerance of +/-10%.
The cable retention in the cable gland must withstand the following removal force of
the cable from the cable gland:
• Cable with outer diameter >10 mm: ≥ 160 N
• Cable with outer diameter < 10 mm: = 100 N
25891936/EN – 05/2020
