Operating Instructions – MOVIMOT
®
advanced
258
11.10 Mounting positions
11.10.1 Mounting positions of MOVIMOT
®
advanced stand-alone motors with IEC flange
Position of electronics cover and cable entry

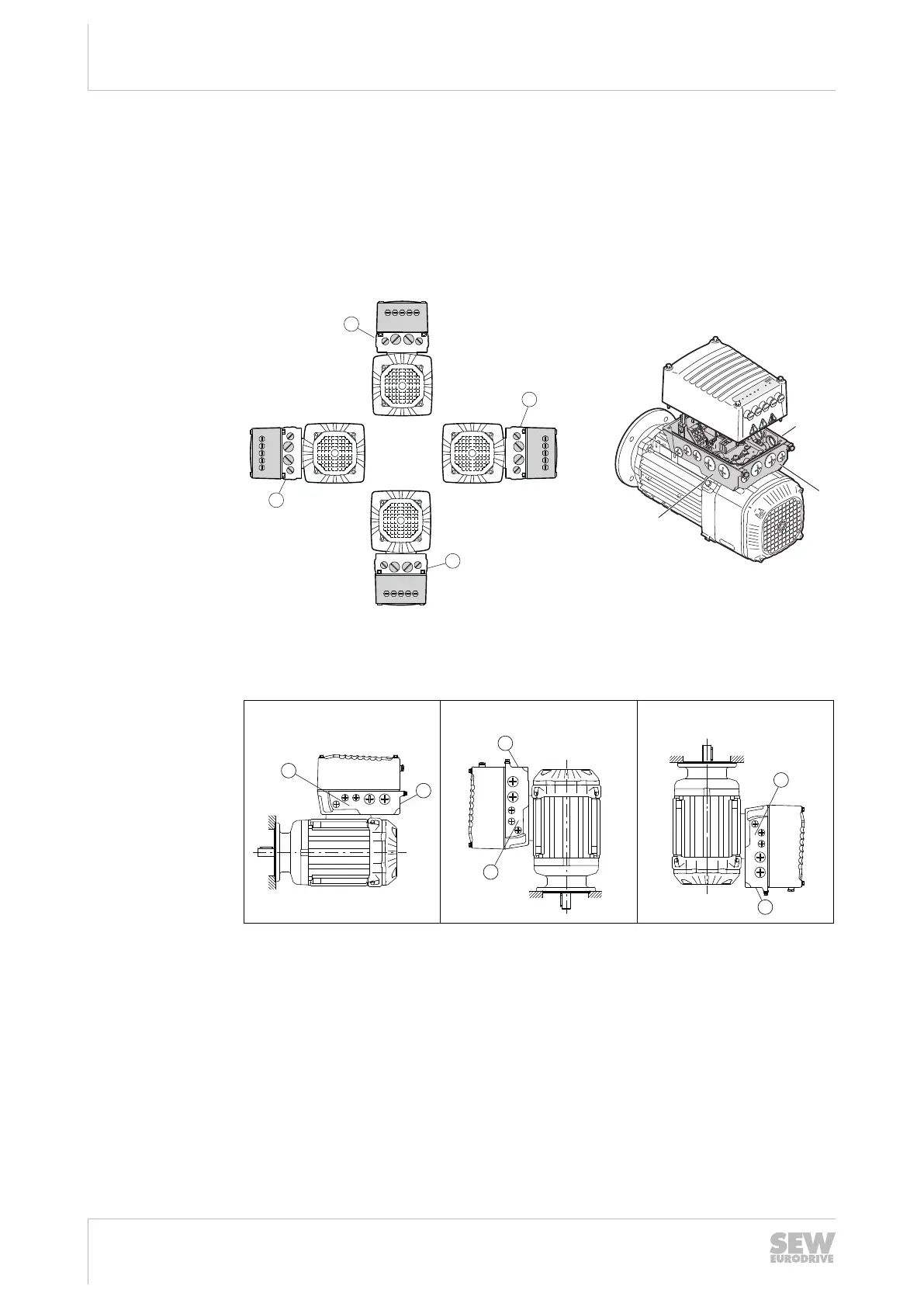

The following figure shows the mounting positions of the MOVIMOT
®
advanced drive
unit with IEC flange:
T / 270°
L / 180°
B / 90°
R / 0°
X
X
X
X
3
X
2
32625090955
Mounting positions
IM B5
IM V1
IM V3
X
3
3
X
3
X
32625257739
Flange mounting Flange mounting
Input end facing down
Flange mounting
Input end facing up
