Technical data and dimension sheets
Technical data
Operating Instructions – MOVIMOT
®
advanced
234

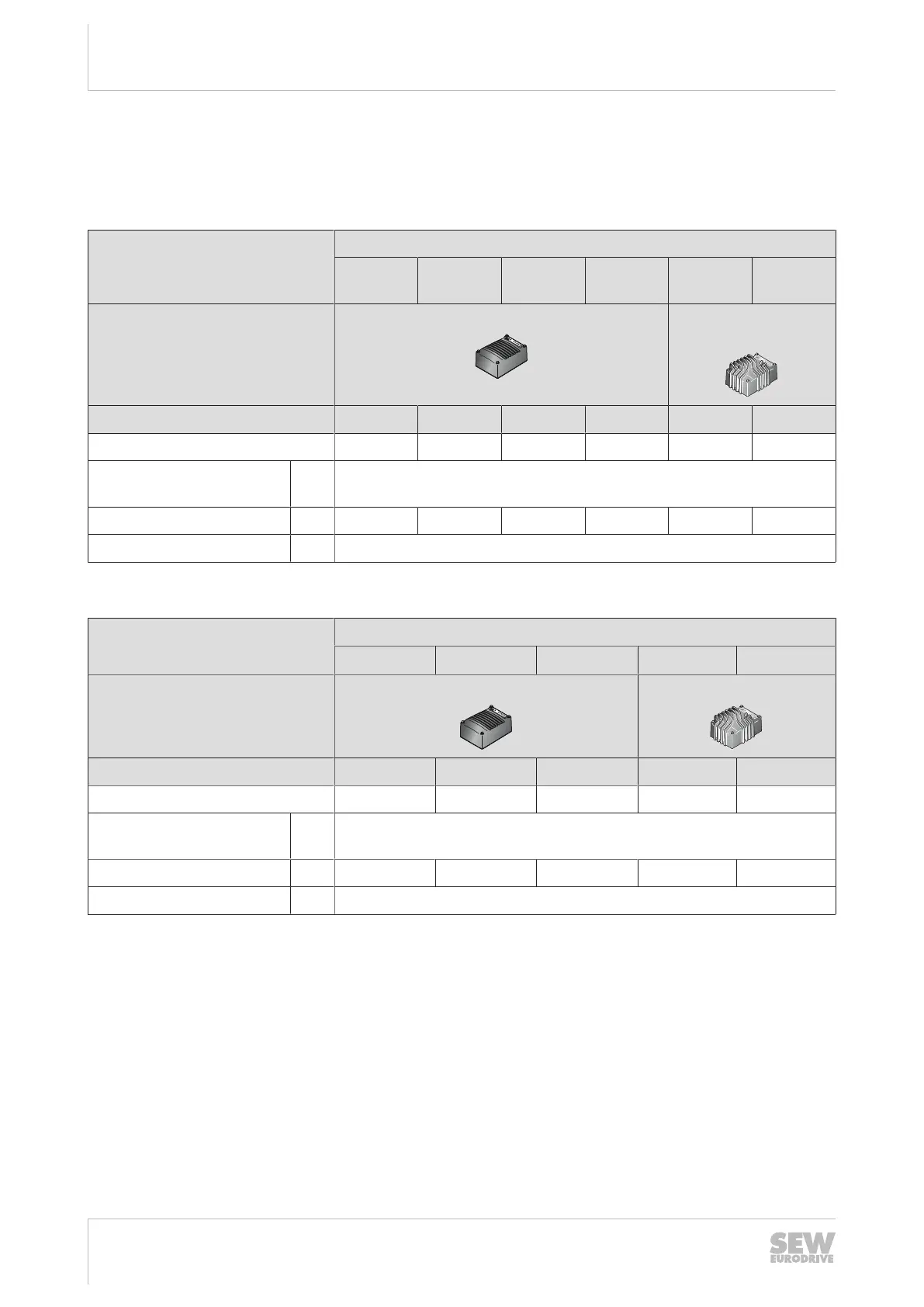

11.3 Technical data
11.3.1 General technical data of MOVIMOT
®
advanced
Input (connection type:
W
)
MOVIMOT
®
advanced DRN..
71M4/D.. 80MK4/D.. 80M4/D.. 90S4/D.. 90L4/D.. 100LS4/
D..
Size of the electronics cover Size1 Size 1 with cooling
fins
Electronics cover (inverter) 0020 0020 0025 0032 0040 0055
Nominal line current 2.0A 2.0A 2.5A 3.2A 4.0A 5.5A
Nominal line voltage AC
(to EN50160)
U
line
3 x 380 – 500V
Nominal line current AC I
line
1.05A 1.33A 1.80A 2.63A 3.51A 4.90A
Line frequency f
line
50–60Hz ±10%
Input (connection type:
m
)
MOVIMOT
®
advanced DRN..
71M4/D.. 80MK4/D.. 80M4/D.. 90S4/D.. 90L4/D..
Size of the electronics cover Size1 Size 1 with cooling fins
Electronics cover (inverter) 0020 0025 0032 0040 0055
Nominal line current 2.0A 2.5A 3.2A 4.0A 5.5A
Nominal line voltage AC
(to EN50160)
U
line
3 x 380 – 500V
Nominal line current AC I
line
0.95A 1.13A 1.42A 2.07A 2.96A
Line frequency f
line
50–60Hz ±10%
