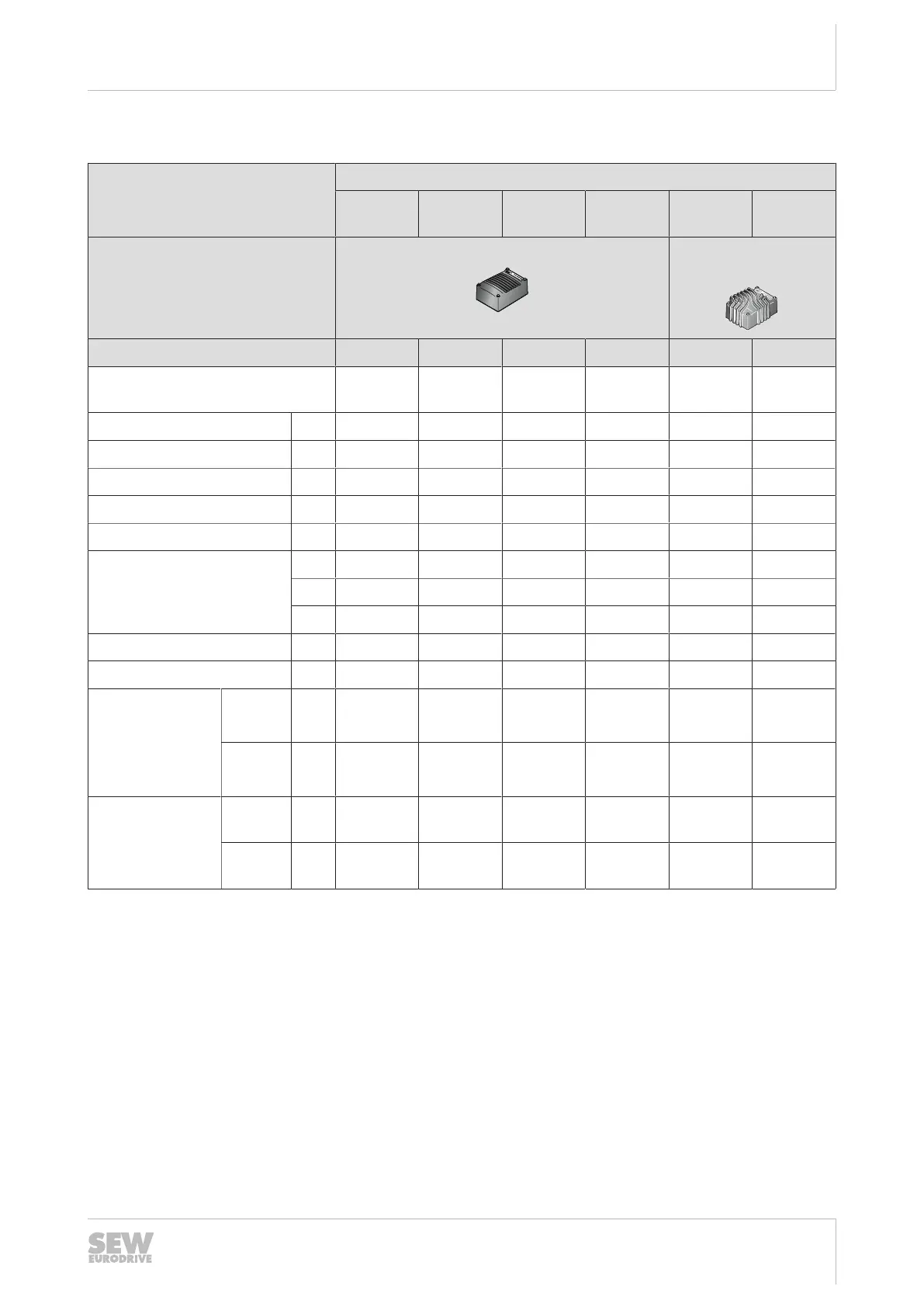

Technical data and dimension sheets
Technical data
Operating Instructions – MOVIMOT
®
advanced
235
Motor 230/400V, 50Hz (connection type:
W
, operating point of motor 400V/50Hz)
MOVIMOT
®
advanced DRN..
71M4/D.. 80MK4/D.. 80M4/D.. 90S4/D.. 90L4/D.. 100LS4/
D..
Size of the electronics cover Size1 Size 1 with cooling
fins
Electronics cover (inverter) 0020 0020 0025 0032 0040 0055
Nominal output current of the
electronics cover
2.0A 2.0A 2.5A 3.2A 4.0A 5.5A
Nominal power P
N
0.37kW 0.55kW 0.75kW 1.1kW 1.5kW 2.2kW
Nominal torque M
N
2.5Nm 3.65Nm 4.95Nm 7.2Nm 9.8Nm 14.5Nm
Overload capacity of M
N
200% 200% 200% 200% 200% 200%
Nominal speed n
N
1400min
-1
1400min
-1
1400min
-1
1400min
-1
1400min
-1
1400min
-1
Nominal motor current I
Mot
1.02A 1.29A 1.75A 2.55A 3.4A 4.75A
Motor efficiency η
50%
74.3% 78.6% 80.7% 83.5% 84.6% 86.4%
η
75%
77.3% 81.0% 82.9% 85.0% 86.1% 87.5%
η
100%
77.3% 80.8% 82.9% 84.5% 85.6% 86.9%
Brake type
1)
BE05 BE1 BE1 BE2 BE2 BE5
Braking torque
1)
M
B
5Nm 7Nm 10Nm 14Nm 20Nm 28Nm
Inertia Without
brake
J
mot
7.14
10
-4
kgm
2
17.1
10
-4
kgm
2
24.7
10
-4
kgm
2
54.0
10
-4
kgm
2
67.2
10
-4
kgm
2
81.4
10
-4
kgm
2
with
brake
1)
J
BMot
8.44
10
-4
kgm
2
18.6
10
-4
kgm
2
26.2
10
-4
kgm
2
58.7
10
-4
kgm
2
71.9
10
-4
kgm
2
87.4
10
-4
kgm
2
Mass Without
brake
11.5kg 15.6kg 19.0kg 23.8kg 27.0kg 33.6kg
with
brake
1)
14.1kg 19.8kg 23.2kg 29.7kg 32.9kg 39.5kg
1) Standard brake. For technical data of the optional brake, refer to the "DR..71-315, DRN63-315, DR2..56-80 AC Motors" operating in-
structions.
