Device structure
Example nameplate and type designation of the drive unit
Operating Instructions – MOVIMOT
®
advanced
18
3.4 Example nameplate and type designation of the drive unit
3.4.1 Nameplates
The MOVIMOT
®
advanced drive unit is always equipped with 2 nameplates:
• Nameplate 1: Data of the drive unit.
• Nameplate 2: Data of the motor.
The following figures show examples of the nameplates of the drive unit and the mo-
tor. For the structure of the type designation, refer to chapter "Type designation".

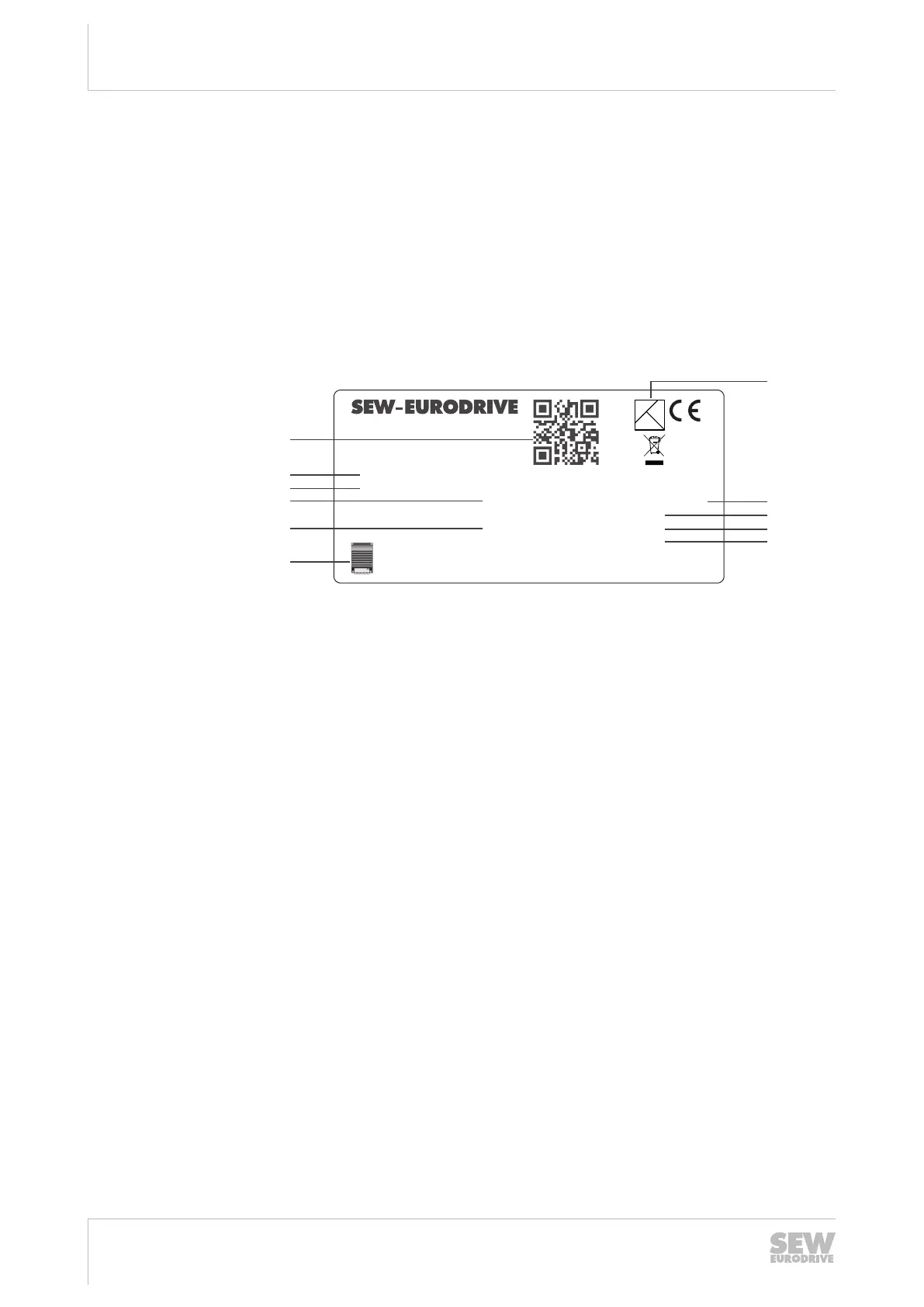

Nameplate of the drive unit
76646 Bruchsal / Germany
R87DRN100LS4/BE2HR/DI/DBC/EI8Z/IV
01.1234567890.0001.20
0055
IES2
3~ IEC60034 ML
P
MA
A
nRHz
kW
Nm
03
2.2
322
1:1400
fN 50...60
nA
r/min
V 0,05...65,1UN 380...500
IN 4.90
2603 382840
TEFC Made in Germany
01
FS
[1]
[4]
[5]
[2]
[3]
[6]
[8]
[7]
[9]
[10]
[11]
32420567691
[1] 2D QR Code. Includes the serial number and a link to the drive unit data on the
SEW-EURODRIVE website (IoT Label).
[2] Type designation of the drive unit
[3] Serial number
[4] Nominal input voltage of the drive unit
[5] Nominal input current of the drive unit
[6] Nominal output current of the assigned electronics cover (inverter) 0055 = 5.5A
[7] FS logo
[8] Output speed range of the drive unit
[9] Speed setting range
[10] Nominal torque of the drive unit
[11] Nominal power of the drive unit
25891936/EN – 05/2020
