11
Technical data and dimension sheets
Technical data
Operating Instructions – MOVIMOT
®
advanced
241
Derating depending on the installation altitude

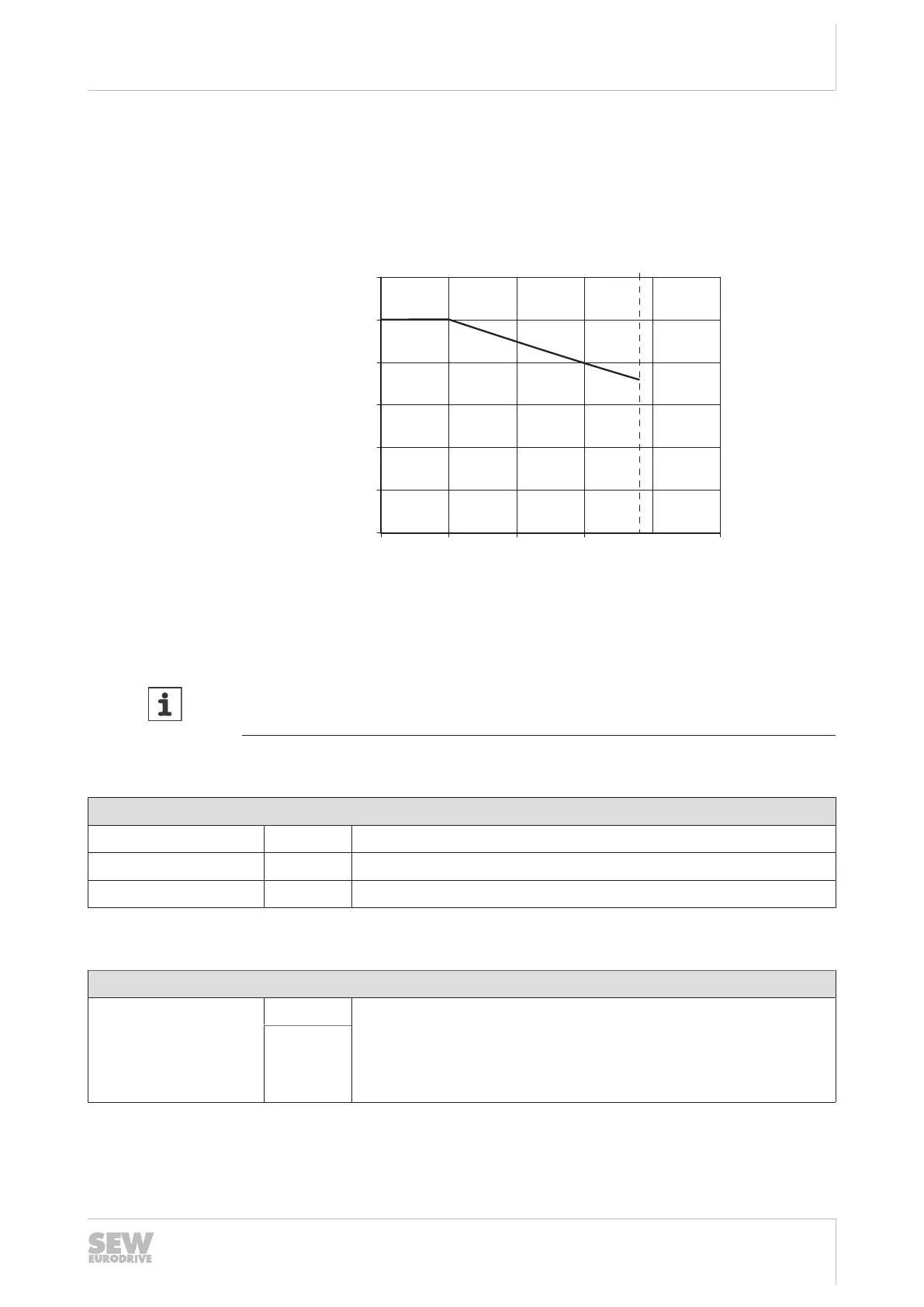

The following diagram shows the factor f
AH
(according to IEC60034-1:2017, Table12)
by which the thermal motor torque has to be reduced depending on the installation
altitude H. Observe the additional chapter "Technical data and dimension drawings" >
"Derating depending on the ambient temperature".
h
0
0.2
0.4
0.6
0.8
1.0
1.2
0 1000 m 2000 m 3000 m 4000 m
3800 m
5000 m
f
AH
25852074635
Notes
INFORMATION
Derating is based on typical operating conditions with a supply voltage of 24 V
(sensor supply, input voltage of STO input).
11.3.4 Current-carrying capacity of terminals
Current carrying capacity of terminals
Line terminals X1 24A (max. loop-through current)
Line terminals X1a 24A (max. loop-through current)
Control terminals X9 10A (max. loop-through current)
11.3.5 DC24V supply
Input for the independent backup voltage supply of the electronics
DC24V input 24V_IN U
IN
= DC24V -10%/+20% according to EN61131-2
Current consumption:
I
E
≤500mA, typically 100mA for electronics
• Plus up to 100mA, for sensor supply
0V24_IN
25891936/EN – 05/2020
