11
Technical data and dimension sheets
Braking resistors
Operating Instructions – MOVIMOT
®
advanced
246
Calculation example
The known values are:
• Average braking power: 144W
• Deceleration ramp: 2s
• 200 brake applications per hour
Calculating the energy from the power of the deceleration ramp:
W P t
W W s
W J
= ×
= ×
=
144 2
288
25296909835
For the deceleration ramp of 2s, you can use deceleration ramp [3] (0.2s) in the dia-
gram. Use the characteristic curve with the shorter deceleration ramp because a
shorter deceleration ramp means more braking energy.
The diagram permits 290 J of braking energy for the 0.2 s deceleration ramp and
200cycles per hour. In this case, the required 288J can be dissipated via BW1.

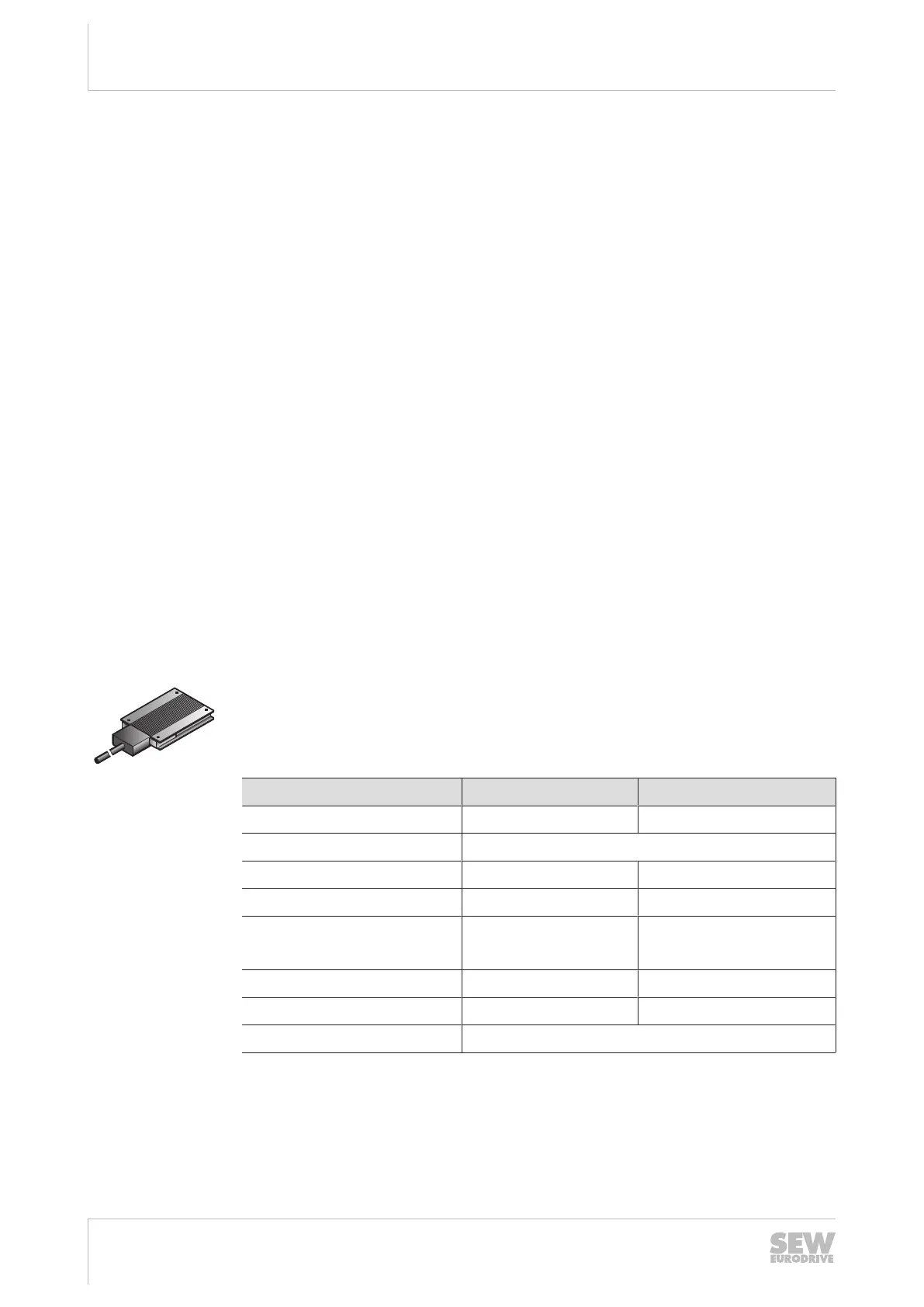

11.4.3 External braking resistor
Operation with external braking resistor is necessary for applications with a large
amount of regenerative energy.
The following table shows the external braking resistors.
BW...-.../K-1.5

Type BW100-005/K-1.5 BW150-003/K-1.5
Part number 08282862 08282927
Function Dissipating the regenerative energy
Degree of protection IP65 IP65
Resistance 100Ω 150Ω
Power rating
in S1, 100% cdf
200W 100W
Dimensions W × H × D 252 × 15× 80 mm 146 × 15× 80 mm
Cable length 1.5 m 1.5 m
Assigned grids BS-005 (part number: 0813152X)
25891936/EN – 05/2020
