11
Technical data and dimension sheets
Dimension drawings of plug connectors in the connection box
Operating Instructions – MOVIMOT
®
advanced
278
11.13.2 Plug connector including mating connector
INFORMATION

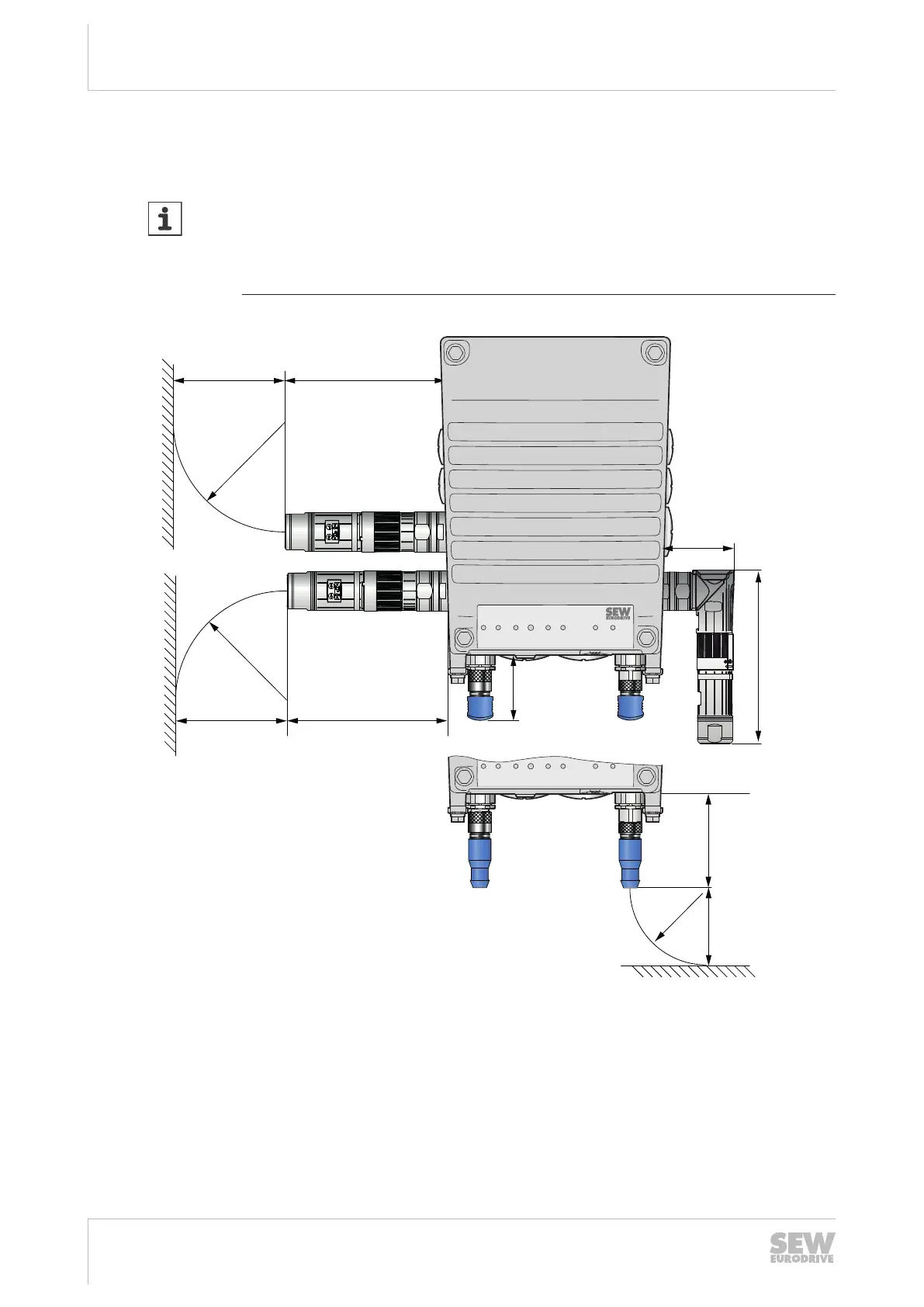

• The following figure shows the additional dimensions/bending radii of the optional
plug connectors including mating connector in connection with prefabricated
cables from SEW‑EURODRIVE.
• For more information, refer to chapter "Plug connector positions".
R28
[4]
28 66
[5]
[4]
[3]
125
113
75
R75
[1]
113
R75
[1]
75
[2]
56
48
[5]
18014423809168779
[1] Bending radius
[2] "Straight" plug connector variant M23
[3] "Right-angle" plug connector variant M23
[4] "Straight" plug connector variant M12
[5] "Right-angle" plug connector variant M12
25891936/EN – 05/2020
