Functional safety

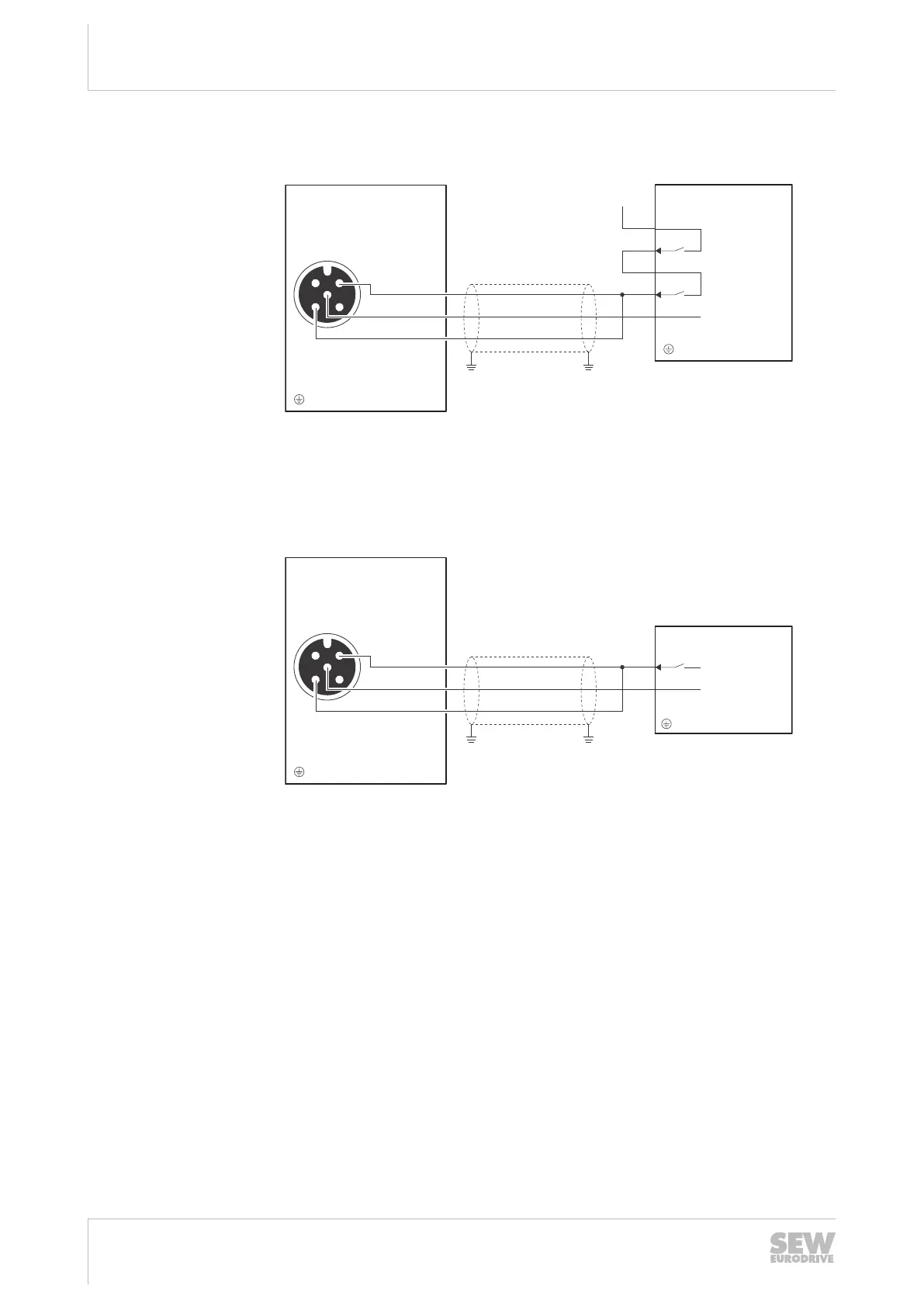

Connections variants
Operating Instructions – MOVIMOT
®
advanced
300
2-pole serial sourcing
X5504
F_STO_P1
F_STO_M
F_STO_P2
[1]
2
5
4
[2]
24 V
F-DOR_22
GND
F-DOR_21
F-DOR_12
F-DOR_11
23875551243
[1]
Drive unit
[2]
External safety device
1-pole sourcing
X5504
F_STO_P1
F_STO_M
F_STO_P2
[1]
2
5
4
[2]
F-DO_P
GND
23875545995
[1]
Drive unit
[2]
External safety device
