12
Functional safety
Connections variants
Operating Instructions – MOVIMOT
®
advanced
302
STO jumper plug
WARNING
Safe disconnection of the device is not possible when using the STO jumper plug.
Severe or fatal injuries.
• Only use use the STO jumper plug if the device is not used to fulfill any safety
function.
WARNING
Disabling of the safety-related disconnection of further devices due to parasitic
voltages when using an STO jumper plug.
Severe or fatal injuries.
• Only use the STO jumper plug when all incoming and outgoing STO connections
have been removed from the device.
A printed red tag is attached to the STO jumper plug.
The STO jumper plug can be connected to the STO plug connector X5504 of the
device. The STO jumper plug deactivates the safety functions of the device.

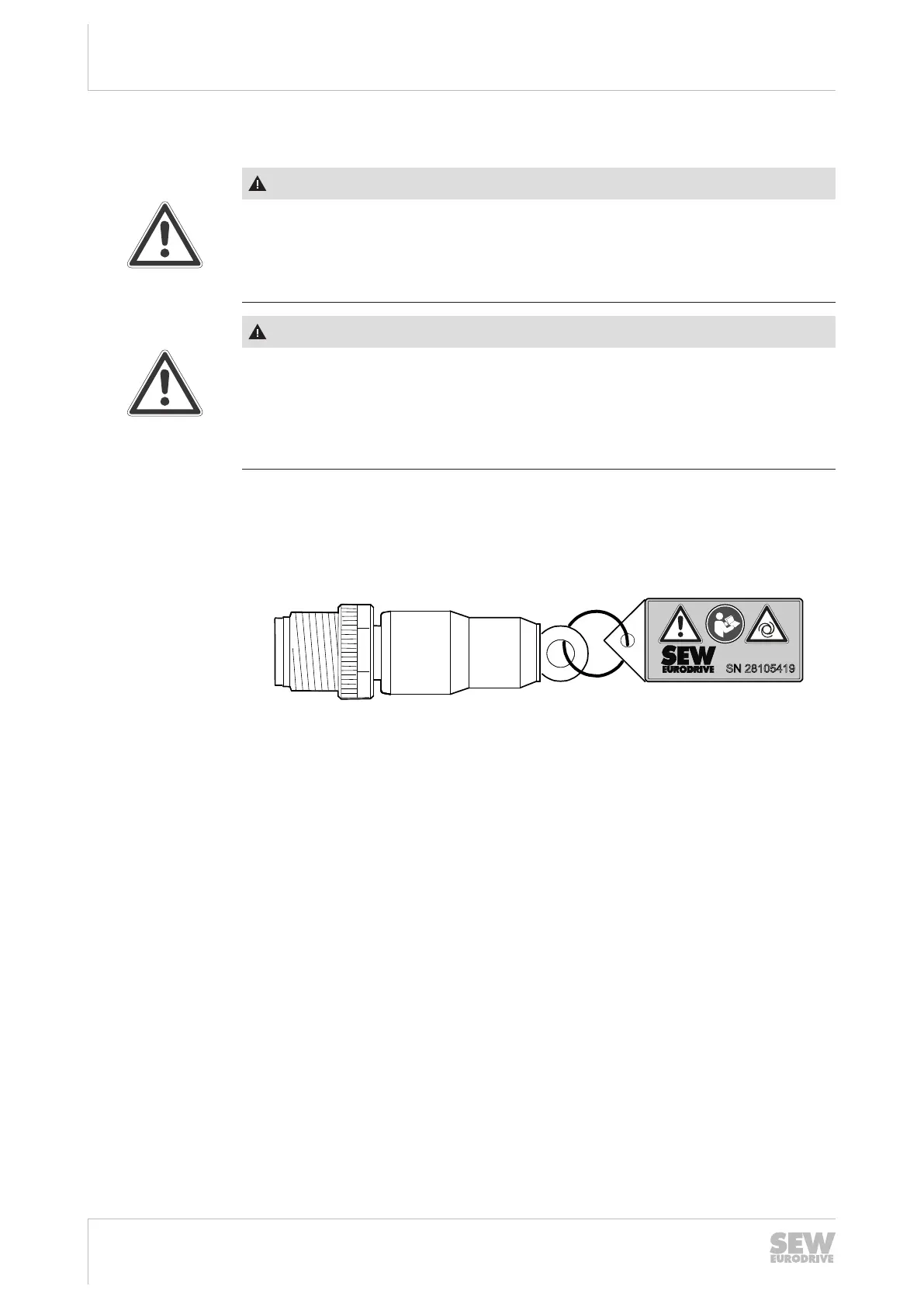

The following figure shows the STO jumper plug with the printed red tag, part number
28105419:
25247142411
25891936/EN – 05/2020
