Mechanical installation
Tightening torques
Operating Instructions – MOVIMOT
®
advanced
34
4.5.2 Cable glands
Tightening torques
Tighten the EMC cable glands optionally supplied by SEW‑EURODRIVE to the fol-
lowing torques:
Screw fitting Part
number
Content Size Outer
cable di-
ameter
Tighten-
ing
torque
EMC cable glands
(nickel-plated brass)
18204783 10 pieces M16×1.5 5 to 9mm 4.0Nm
18204805 10 pieces M25×1.5 11 to
16mm
7.0Nm
EMC cable glands
(stainless steel)
18216366 10 pieces M16×1.5 5 to 9mm 4.0Nm
18216382 10 pieces M25×1.5 11 to
16mm
7.0Nm
Cable gland for exter-
nally routed Ethernet
cable with mini IO plug
connector (brass,
nickel-plated)
25676040 10 pieces M25×1.5 1 x
6.5mm
7.0Nm
25676032 10 pieces M25×1.5 2 x
6.5mm
7.0Nm
The cable retention in the cable gland must withstand the following removal force of
the cable from the cable gland:
• Cable with outer diameter >10mm: ≥ 160N
• Cable with outer diameter < 10mm: = 100N
Example

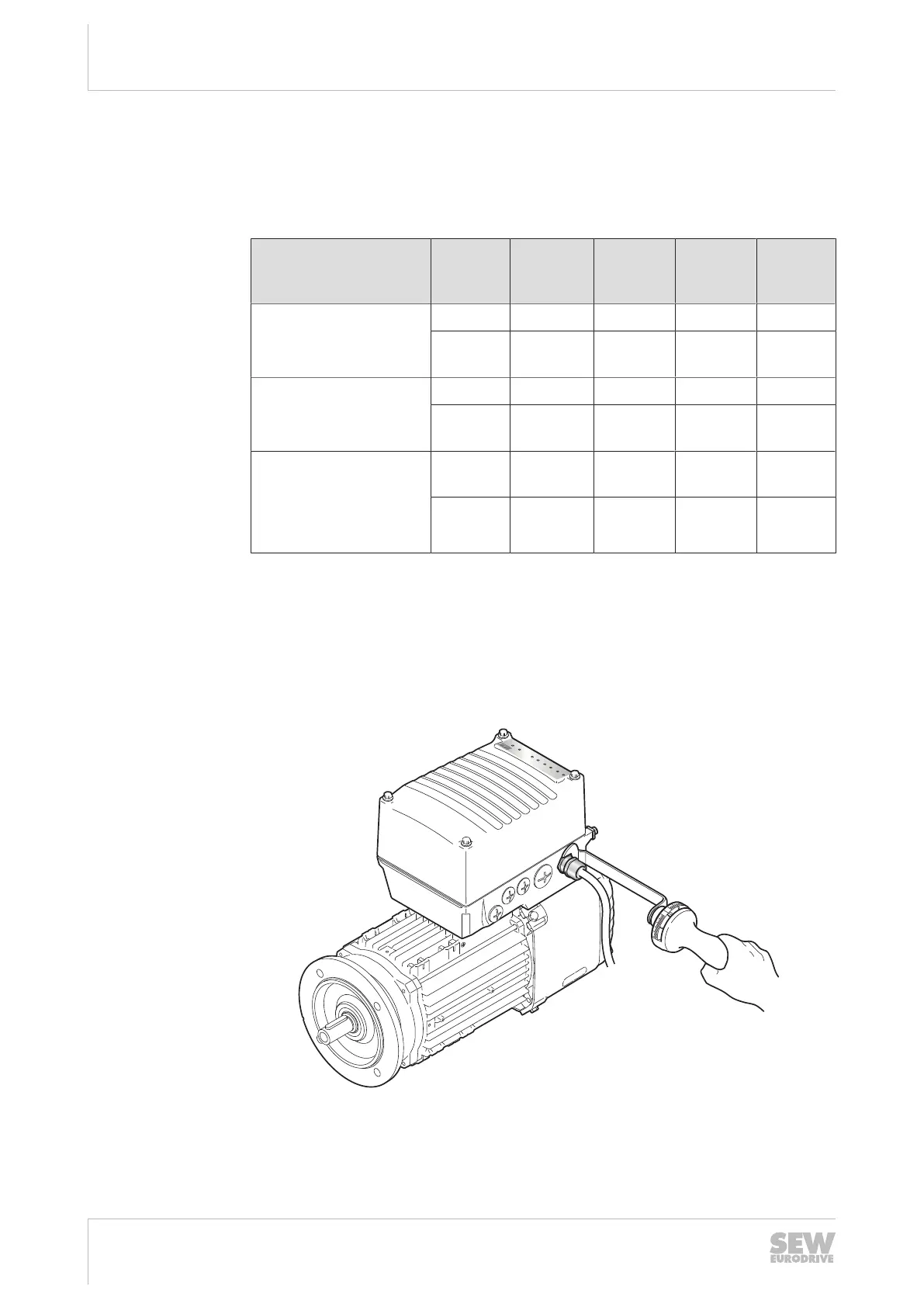

The following figure shows an example of a cable gland:
9007228387032715
25891936/EN – 05/2020
