5
Electrical installation
Installation instructions
Operating Instructions – MOVIMOT
®
advanced
43

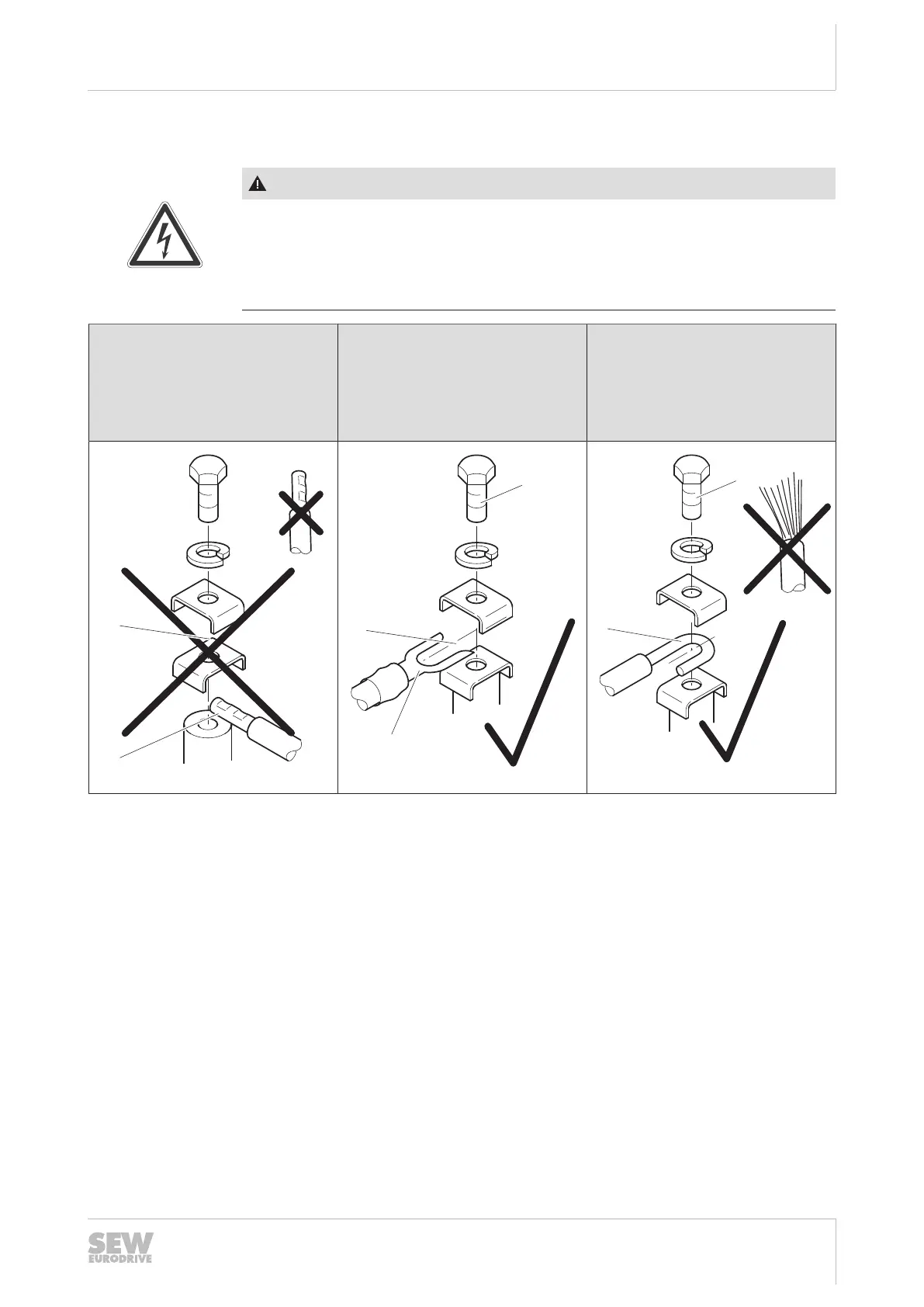

5.3.10 Notes on PE connection
WARNING
Electric shock due to incorrect connection of PE.
Severe or fatal injuries.
• The permitted tightening torque for the screw is 2.0to2.4Nm.
• Observe the following notes regarding PE connection.
Impermissible assembly
Using a conductor end sleeve or
using a straight, rigid core is
not permitted.
Recommendation:
Assembly with cable lug
1)
Permitted for all cross sections
Assembly with solid connecting
wire
1)
Permitted for cross sections up
to
max. 2.5mm
2
9007222159731851
9007222159700491
9007222159689227
1) Use the specified material for the assembly that is included in the accessory bag.
[1] Install the PE connection cable between both U-shaped mounting panels.
[2] Incorrect installation sequence.
[3] Forked cable lug suitable for M5 PE screws.
25891936/EN – 05/2020
