5
Electrical installation
Cable routing and cable shielding
Operating Instructions – MOVIMOT
®
advanced
54
5.7.3 Installation with separately routed binary signal cable
Notes on cable routing and shielding – Recommended cable routing
Note the following when routing and shielding the cables:
• Cable selection
– For cable selection, observe chapter "Technical data and dimension sheets /
connection cables" in the operating instructions.
– You can use unshielded connection cables for the supply system connection.
• Cable shielding
– Connect the shields of the cables to the metal housing of the unit using the
shield clamps of the installation equipment kit. To do so, strip off the cable
sheath around the shield connection surface.
– As an alternative, you can use optionally available EMC cable glands to con-
nect the shield of cables, see chapter "Cable glands".
• External braking resistor
– Also observe the notes in chapter "Terminal assignment".
• Observe the permitted bending radii of the installed cables for cable routing.

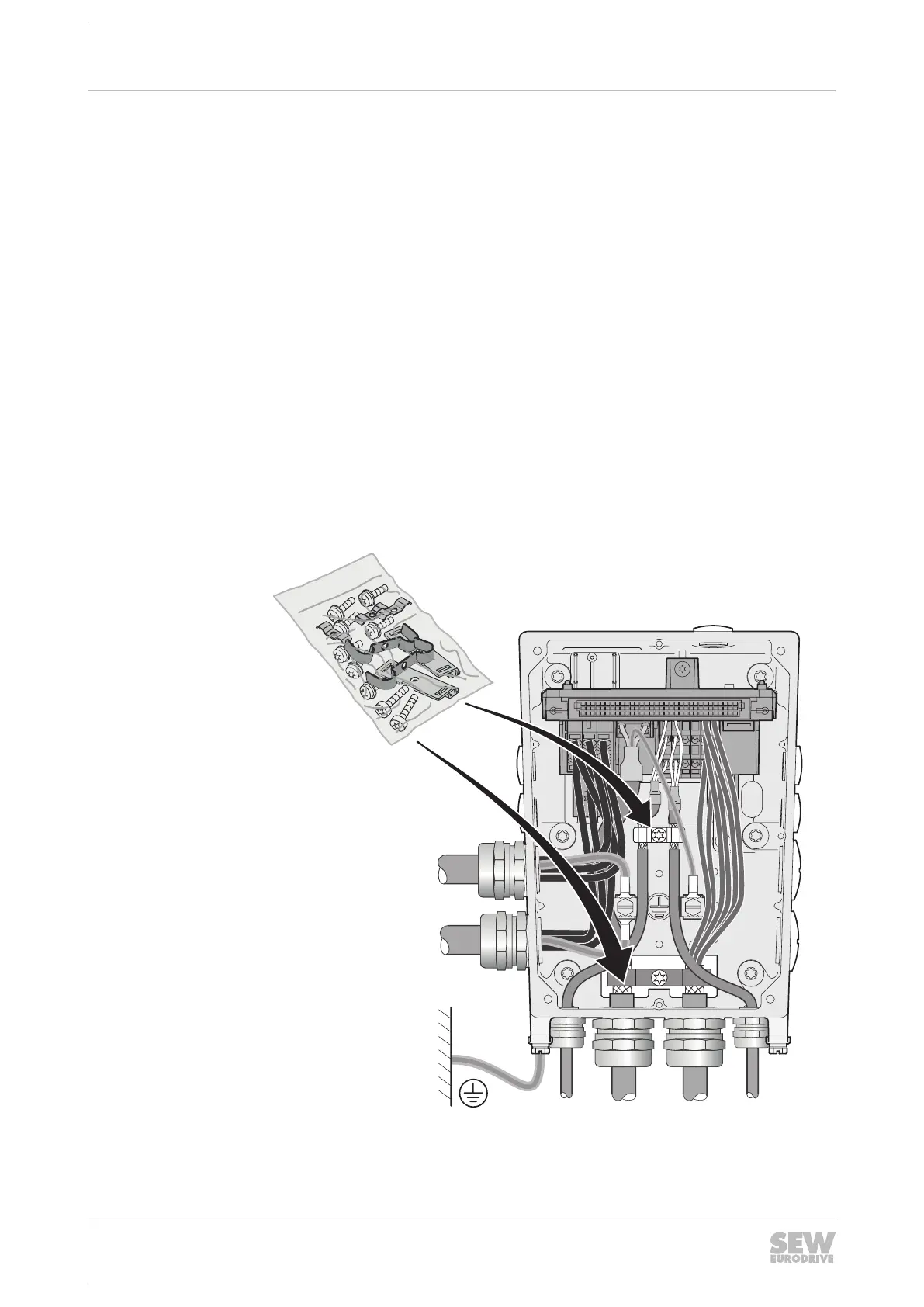

The following figure shows an example of the basic cable routing.
Binary
Supply system
Supply system
BRSTO STO
18014427790689419
25891936/EN – 05/2020
