Electrical installation
Optional plug connector assignment
Operating Instructions – MOVIMOT
®
advanced
84

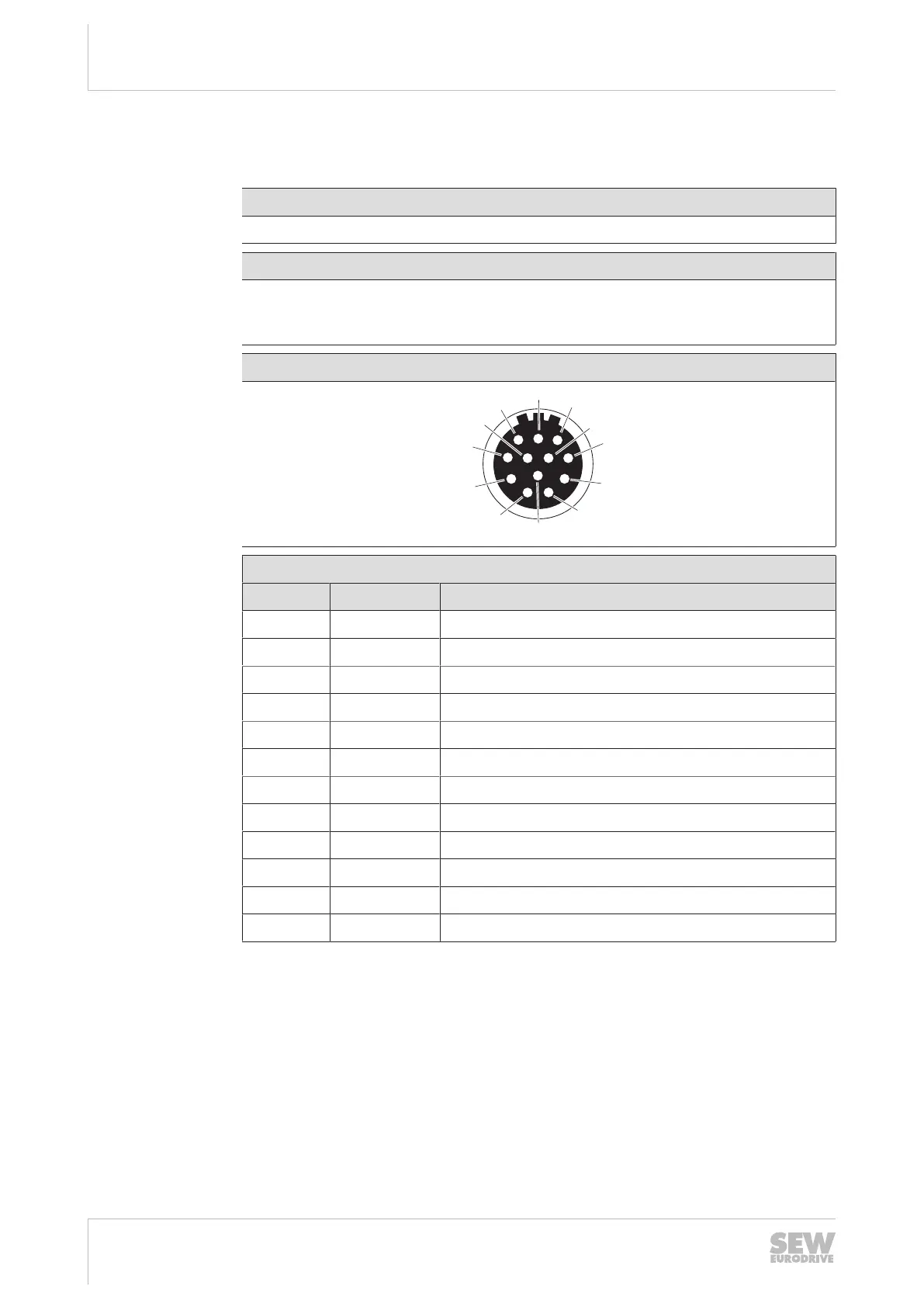

5.10.7 X5136: Digital inputs, relay output
The following table shows information about this connection:
Function
Digital inputs, relay output
Connection type
M23, female, male thread, TE Connectivity - Intercontec products, P insert,
SpeedTec equipment, 12‑pin, 0°-coded, coding ring: without, protected against con-
tact
Connection diagram
9
1
2
7
6
5
11
12
3
4
8
10
Assignment
Contact Signal Description
1 DI01 Digital input DI01
2 DI02 Digital input DI02
3 DI03 Digital input DI03
4 DI04 Digital input DI04
5 Res. Reserved
6 DOR-C Relay output DOR, common contact
7 DOR-NO Relay output DOR, NO contact
8 +24V_O DC24V output
9 0V24_O 0V24 reference potential
10 Res. Reserved
11 +24V_O DC24V output
12 FE Functional earth
