5
Electrical installation
Optional plug connector assignment
Operating Instructions – MOVIMOT
®
advanced
86

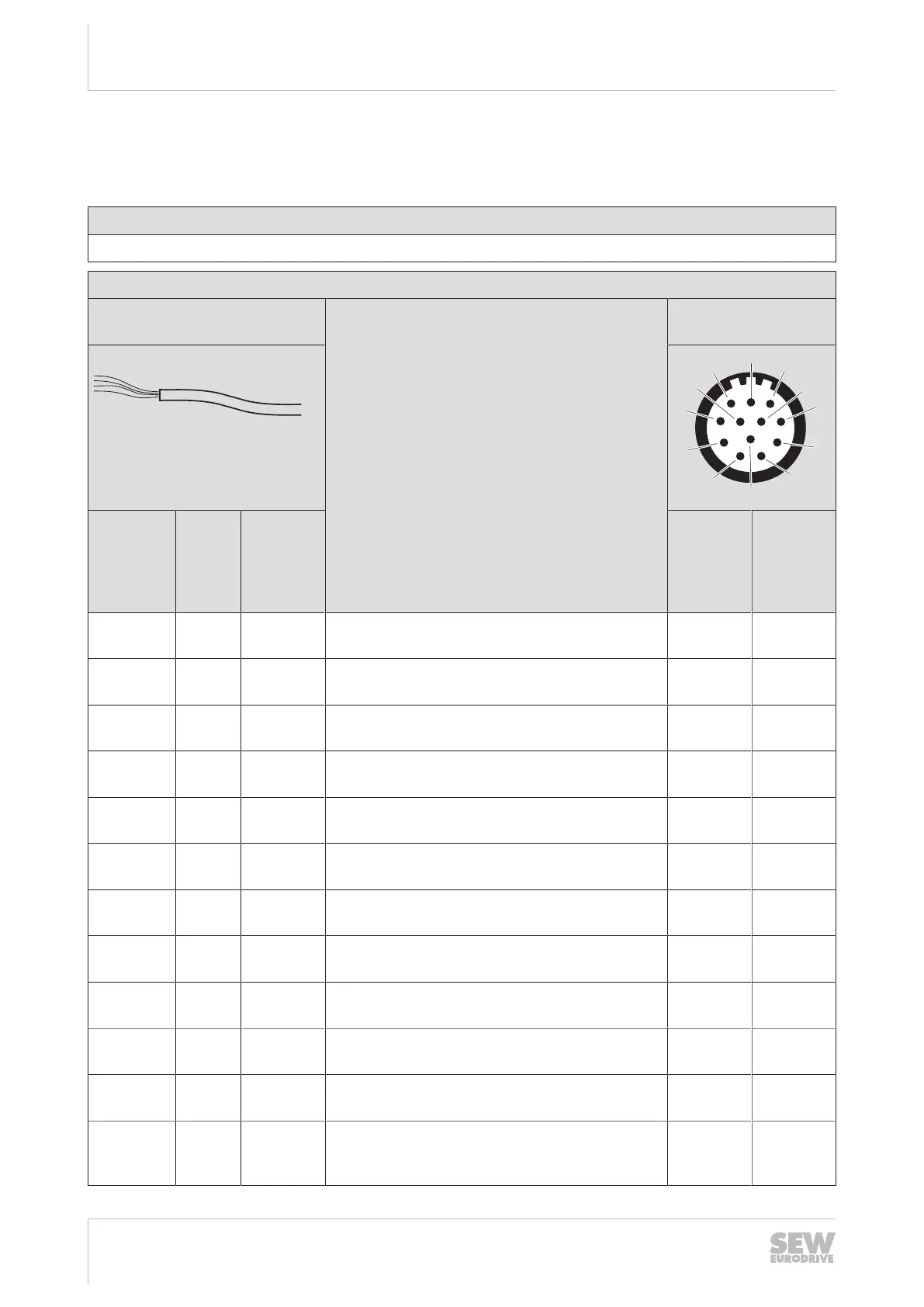

Connection of cables with open end
The following table shows the core assignment of cables with the following part num-
ber:
Part numbers
11741457
Assembly
Open cable end Description Prefabricated plug
connectors
9
1
2
7
6
5
11
12
3
4
8
10
Core
color/
Core
cross sec-
tion
Identi-
fication
Assembly Signal Contact
Pink
0.25mm
2
–
Not pre-
fabricated
Digital input DI01 DI01 1
Gray
0.25mm
2
–
Not pre-
fabricated
Digital input DI02 DI02 2
Red
0.25mm
2
–
Not pre-
fabricated
Digital input DI03 DI03 3
Blue
0.25mm
2
–
Not pre-
fabricated
Digital input DI04 DI04 4
Yellow
0.25mm
2
–
Not pre-
fabricated
Reserved Res. 5
Green
0.25mm
2
–
Not pre-
fabricated
Relay output DOR, common contact DOR-C 6
Purple
0.25mm
2
–
Not pre-
fabricated
Relay output DOR, NO contact DOR-NO 7
Black
0.25mm
2
–
Not pre-
fabricated
DC24V output +24V_O 8
Brown
0.25mm
2
–
Not pre-
fabricated
0V24 reference potential 0V24_O 9
White
0.25mm
2
–
Not pre-
fabricated
Reserved Res. 10
Gray/pink
0.25mm
2
–
Not pre-
fabricated
DC24V output +24V_O 11
Green/yel-
low
0.25mm
2
–
Not pre-
fabricated
Functional earth FE 12
25891936/EN – 05/2020
