Operating Instructions – Electronic Motor DRC.-..-SNI
13
3
Cable entry positions
Unit Structure

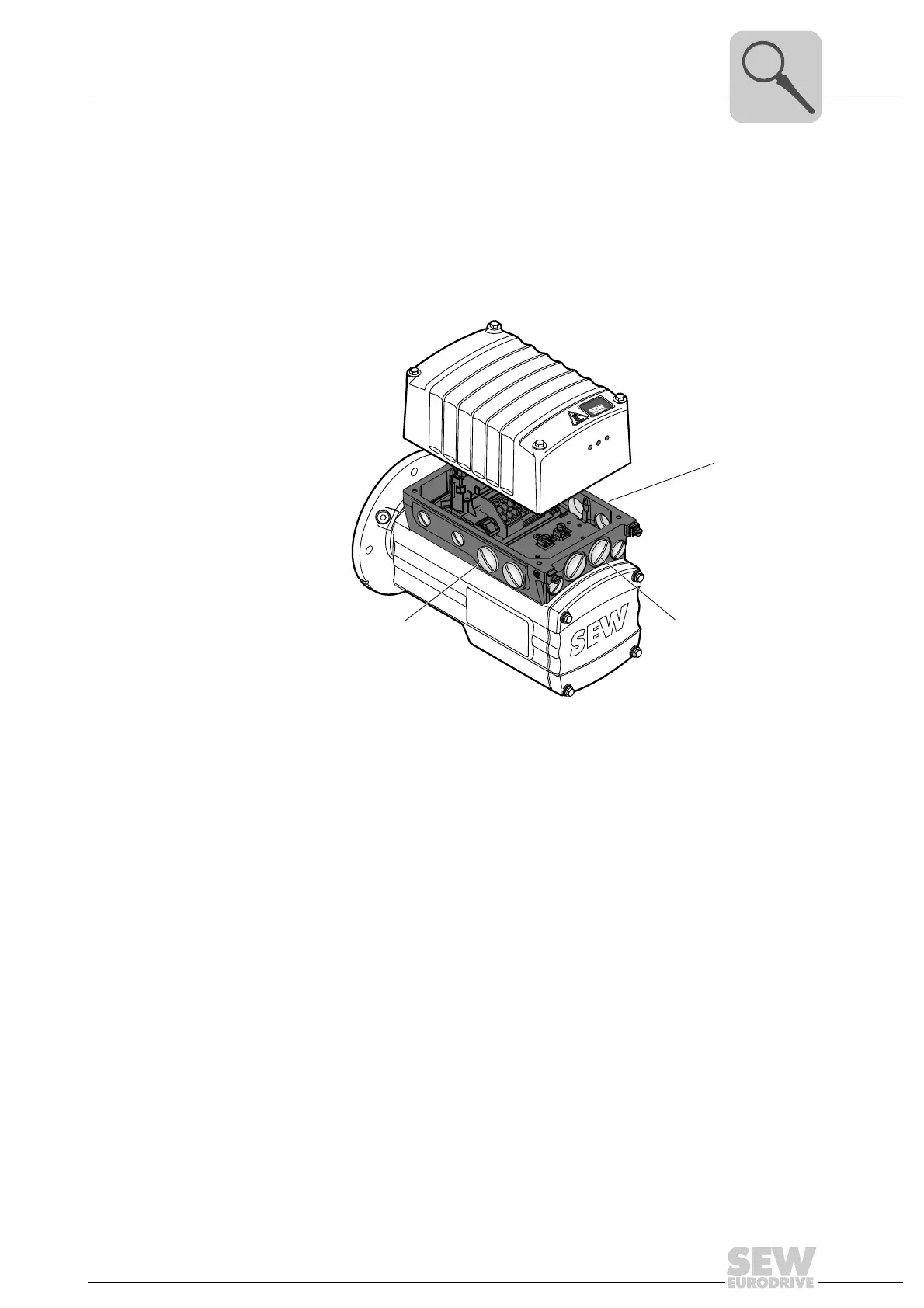

3.2 Cable entry positions
The DRC electronic motor generally comes equipped with the following cable entries
1)
:
• Position X + 2 + 3
– X: 2 x M25 x 1.5 + 2 x M16 x 1.5
– 2: 2 x M25 x 1.5 + 2 x M16 x 1.5
– 3: 2 x M25 x 1.5 + 2 x M16 x 1.5
1) 1 x M16 x 1.5 reserved for pressure compensation fitting (only in conjunction with ASEPTIC/ASEPTIC
plus
variants as well as brakemotors operated at ambient temperatures of < 20 °C)
9007203301611787
RUN
NET
DRIVE
3
X
2
