Operating Instructions – Electronic Motor DRC.-..-SNI
3
Example nameplate and type designation of drive units
Unit Structure
3.3 Example nameplate and type designation of drive units
3.3.1 Nameplate

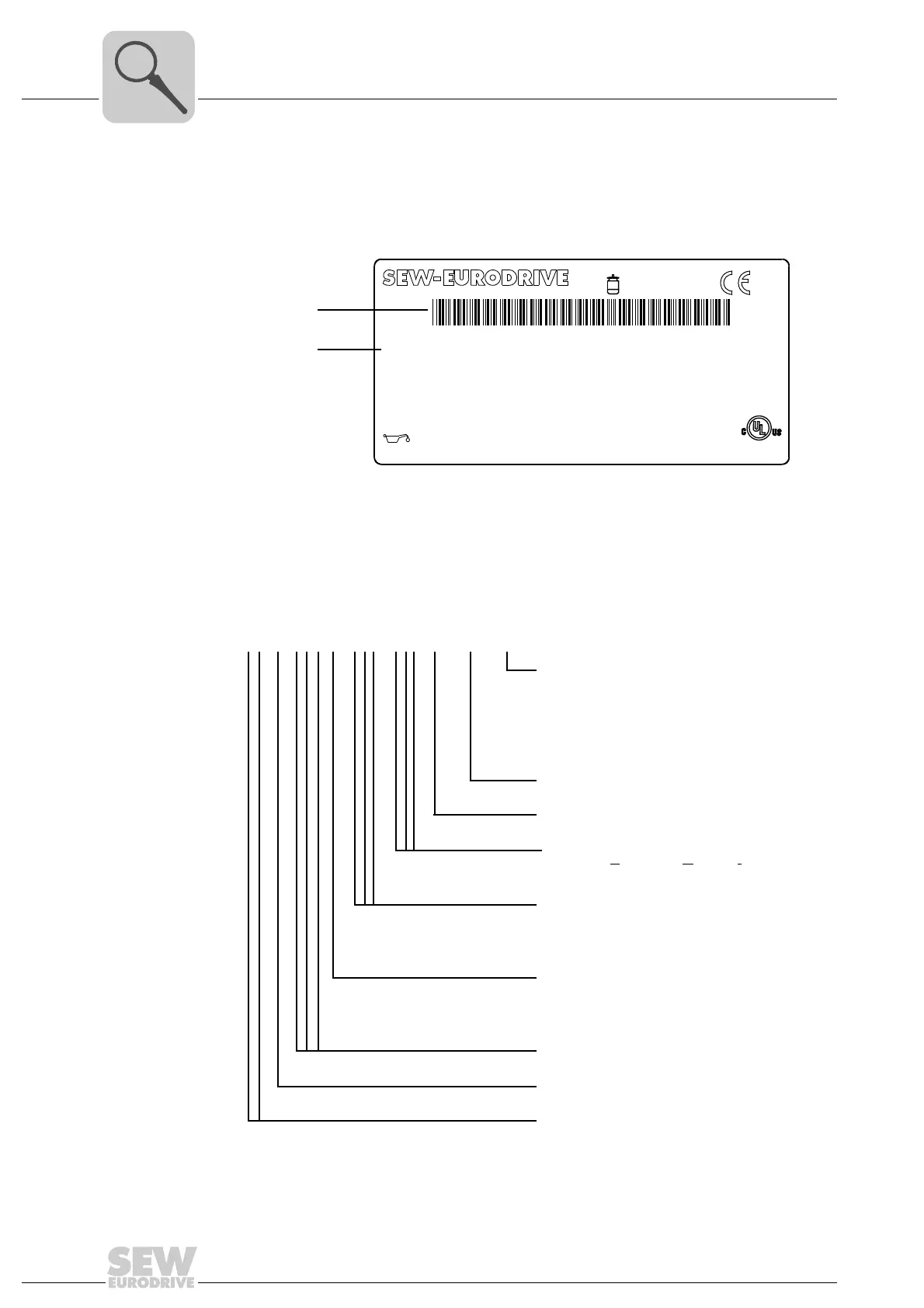

The following figure gives an example of a DRC nameplate. For the structure of the type
designation, refer to chapter "Type designation".
3.3.2 Type designation
The following table shows the type designation of the DRC drive unit:
4762054411
[1] Unique serial number
[2] The bar code on the nameplate (code 39) according to ISO/IEC 16388 represents the unique
serial number (with a period as separator).
[1]
[2]
76646 Bruchsal/Germany
kg AMB 1845 494 1.50°C
M
A
M BR
Ma pk
Nm
IM
Nm
Nm
i
kW
Iso.Kl. M.L. Hz 50-60 V A
nR
r/min IP
eff%
26.000
85...0.04
TENV
87,1 IE4
1.04
156
-20...40 Made in Germany
M1CLP 220 Miner.Öl/0.65 l
1/2000
23.59 62
155
0.55 S1
(
F
)
380...500
65
3~IEC61800
RF47 DRC1-005-SNI-A-ECR/IV
01.1751709009.0001.11
Inverter duty VPWM
RF 47 DRC 1 - 005 - SNI - A - ECR / IV
DRC option
IV = Plug connector
BY1C = Brake DRC1
BY2C = Brake DRC2
BW1 = Integrated braking resistor DRC1
BW2 = Integrated braking resistor DRC2
Extended control range (standard)
Version
DRC installation technology
SNI = S
ingle Line Network Installation
Power rating
005 = 0.55 kW
015 = 1.5 kW
Electronic motor size
1 = DRC1
2 = DRC2
Product line
DRC = Electronic motor
Gear unit size
Gear unit series
