Plug connectors
Electrical Installation
5.9 Plug connectors
The wiring diagrams of the plug connectors depict the contact end of the connection.
5.9.1 Designation key

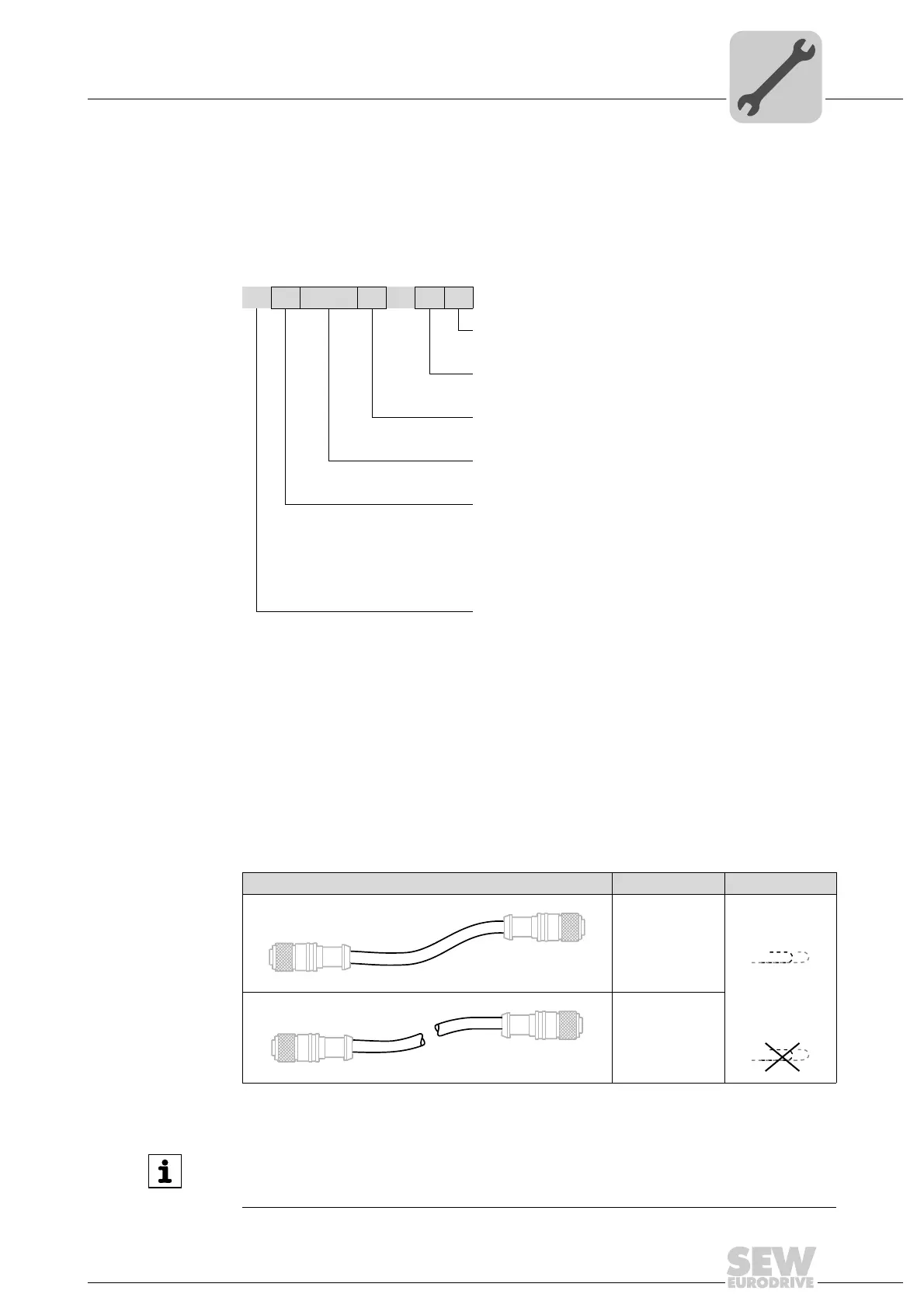

The designation of plug connectors is specified according to the following key:
5.9.2 Connection cables
Connection cables are not included in the scope of delivery.
You can order prefabricated cables from SEW-EURODRIVE. They are described in the
following sections. Specify the part number and length of the required cable in your
order.
The number and type of required connection cables depend on the design of the units
and the components to be connected. This is why not all cables in the list are actually
required.
The following figures show the various cable types:
X 2 0 1 2 _
Sequence number (optional)
In case of several plug connectors in one group
Group number (optional)
For several plug connectors with the same function
Type
Connection diagram of the plug connector within a function
Function
Function of a plug connector within a group
Group
1 = Power input
2 = Power output
3 = Encoder
4 = Bus
5 = Inputs and outputs
Terminal
Cable Length Installation type
Fixed length
Suitable for cable
carrier installation
Not suitable for
cable carrier
installation
Variable length
INFORMATION
For detailed information about cable types, see chapter "Technical data and
dimension sheets".
