SEW DRC2 - Cable Routing and Shielding

Operating Instructions – Electronic Motor DRC.-..-SNI
51
5
Cable routing and shielding
Electrical Installation
5.6 Cable routing and shielding

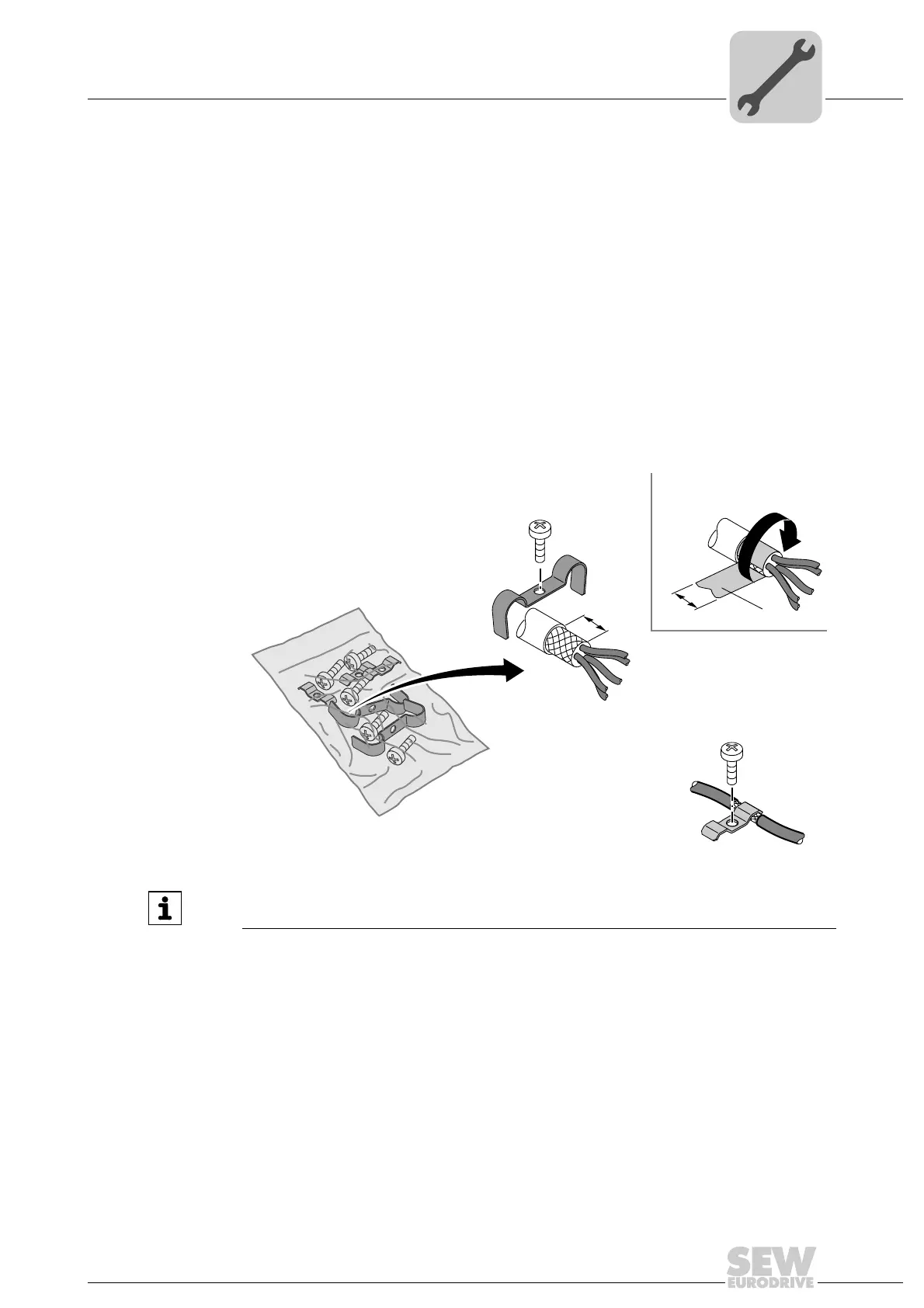

5.6.1 Installation material kit (part no. 1 824 826 8)
Each DRC drive unit
1)
is delivered with an accessory bag that contains installation
material for cable shielding:
• A1: Installation material for line and hybrid cables:
2 x shield clamps and screws
2)
to connect the shield of line cables or hybrid cables
(outer shield).
• A2: Conductive film:
2 x pieces of conductive film to wind around the braid shield. Use the conductive film
if required.
• B: Installation material for control cables and data cables:
3 x shield clamp with screw
2)
to connect the shield of control cables or data cables
(STO, CAN, binary signals).
1) Exception: Not for plug connector variants
2) Self cutting, which is why the holes in the connection box do not have a thread
4071209995
A1:
A2:
B:
2x
2x
3x
3x
M4x10
(2.0 Nm)
M4x10
(2.0 Nm)
20mm
20mm
3x
2x
INFORMATION
For some installation variants, you do not need all the parts of the accessory kit.
