Assignment of optional plug connectors
Electrical Installation
5.10 Assignment of optional plug connectors
5.10.1 X1241_1 and X1241_2: AC 400 V connection with SNI
The following table informs about this connection:
WARNING
Electric shock when disconnecting or connecting voltage-carrying plug connectors.
Severe or fatal injuries
• Switch off the power supply voltage.
• Never plug or unplug plug connectors while they are energized.
Function
AC 400 V connection for supplying the unit/for looping through
with Single Line Network Installation (SNI)
Connection type
M23, SEW insert, SpeedTec-capable, company: Intercontec, female, coding ring: Red, protected against
contact

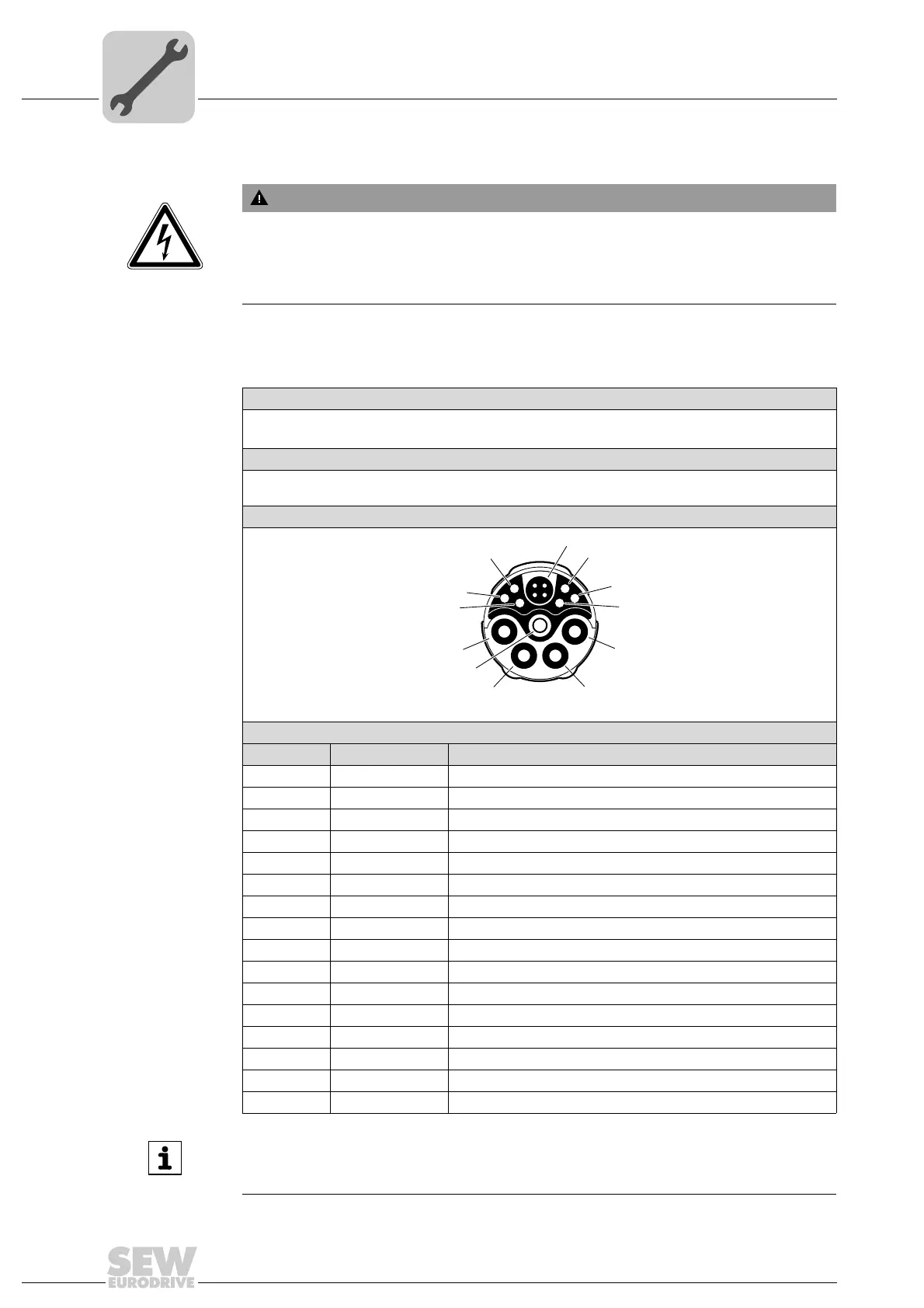

Wiring diagram
2497125387
Assignment
No. Name Function
A L1_SNI Actuator supply phase L1 with SNI communication
B L2_SNI Actuator supply phase L2 with SNI communication
C L3_SNI Actuator supply phase L3 with SNI communication
D n.c. Not connected
PE PE PE connection
1 n.c. Not connected
2 n.c. Not connected
3 n.c. Not connected
4 n.c. Not connected
5 n.c. Not connected
6 n.c. Not connected
7 n.c. Not connected
8 n.c. Not connected
9 n.c. Not connected
10 n.c. Not connected
SHLD n.c. Not connected
A
6
4
5
PE
B
C
D
SHLD
1
2
3
INFORMATION
The communication method requires that you must observe the order of the line
phases L1, L2, L3 between SNI controller and DRC SNI drive units 1 to 10.
