Assignment of optional plug connectors
Electrical Installation

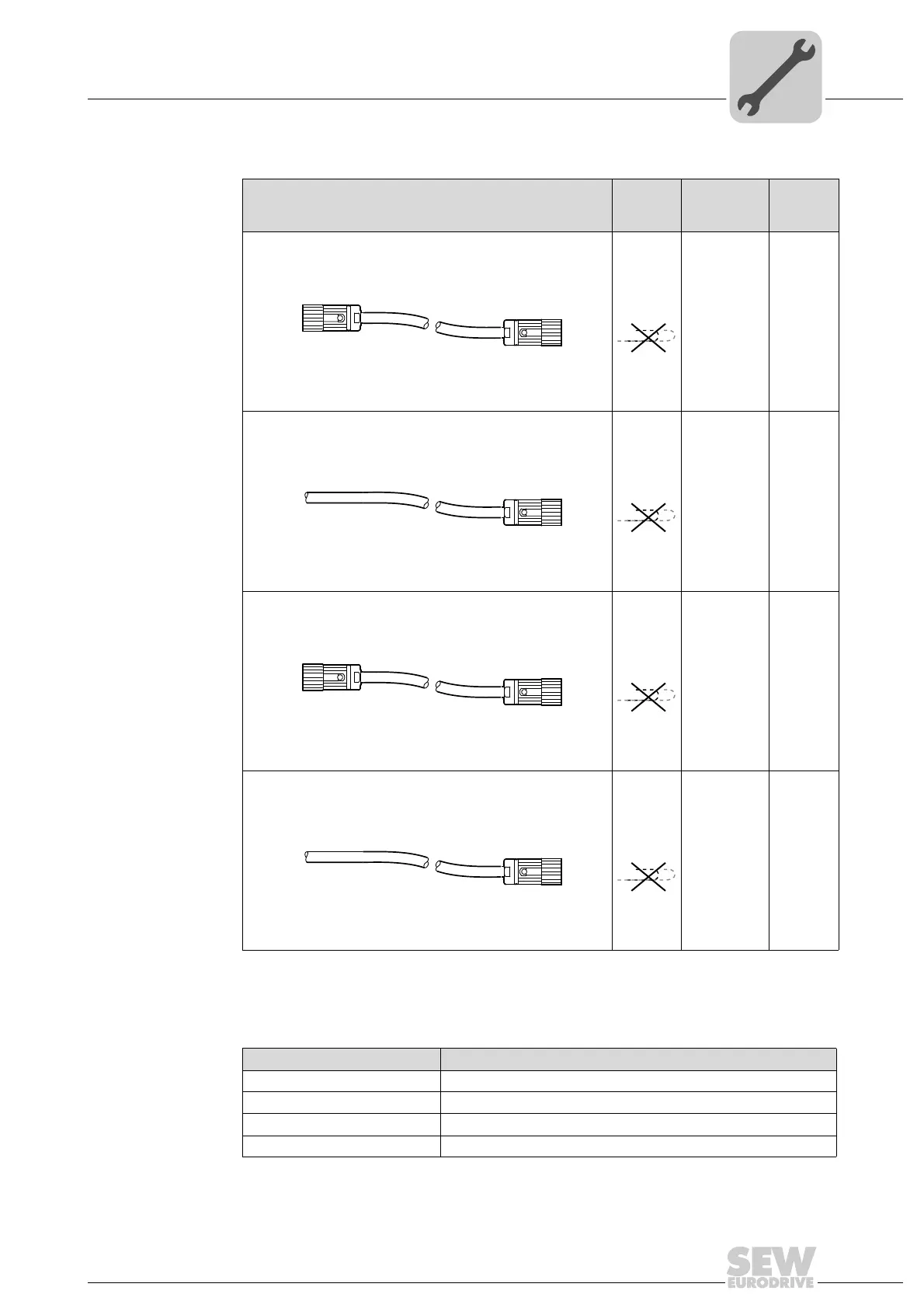

Connection cables The following table provides an overview of the cables available for this connection:
Connection of
cables with open
end
The following table shows the conductor assignment of the cable with the following part
number:
1 812 751 7 and 1 812 753 3
Connection cable
Length/
installa-
tion type
Cable cross-
section/
cable type
Operat-
ing
voltage
Part number 1 812 750 9
Variable
2.5 mm
2
HELUKA-
BEL
TOPFLEX
®
–
EMV-UV-
2YSLCYK-J
AC 500 V
M23, coding ring:
Red
M23, coding ring:
Red
Part number 1 812 751 7
Variable
2.5 mm
2
HELUKA-
BEL
TOPFLEX
®
–
EMV-UV-
2YSLCYK-J
AC 500 V
Open M23, coding ring:
Red
Part number 1 812 752 5
Variable
4 mm
2
HELUKA-
BEL
TOPFLEX
®
–
EMV-UV-
2YSLCYK-J
AC 500 V
M23, coding ring:
Red
M23, coding ring:
Red
Part number 1 812 753 3
Variable
4 mm
2
HELUKA-
BEL
TOPFLEX
®
–
EMV-UV-
2YSLCYK-J
AC 500 V
Open M23, coding ring:
Red
Signal name Color coding
L1_SNI Brown
L2_SNI Black
L3_SNI Gray
PE Green/yellow
