EMC cable glands
Electrical Installation
5.7 EMC cable glands
5.7.1 Cable shielding (alternative) – Control cables
As an alternative to using shield clamps for control cables (STO, binary signals), you can
use EMC cable glands, which are available as an option, to connect the shield.
5.7.2 Assembly of EMC cable glands

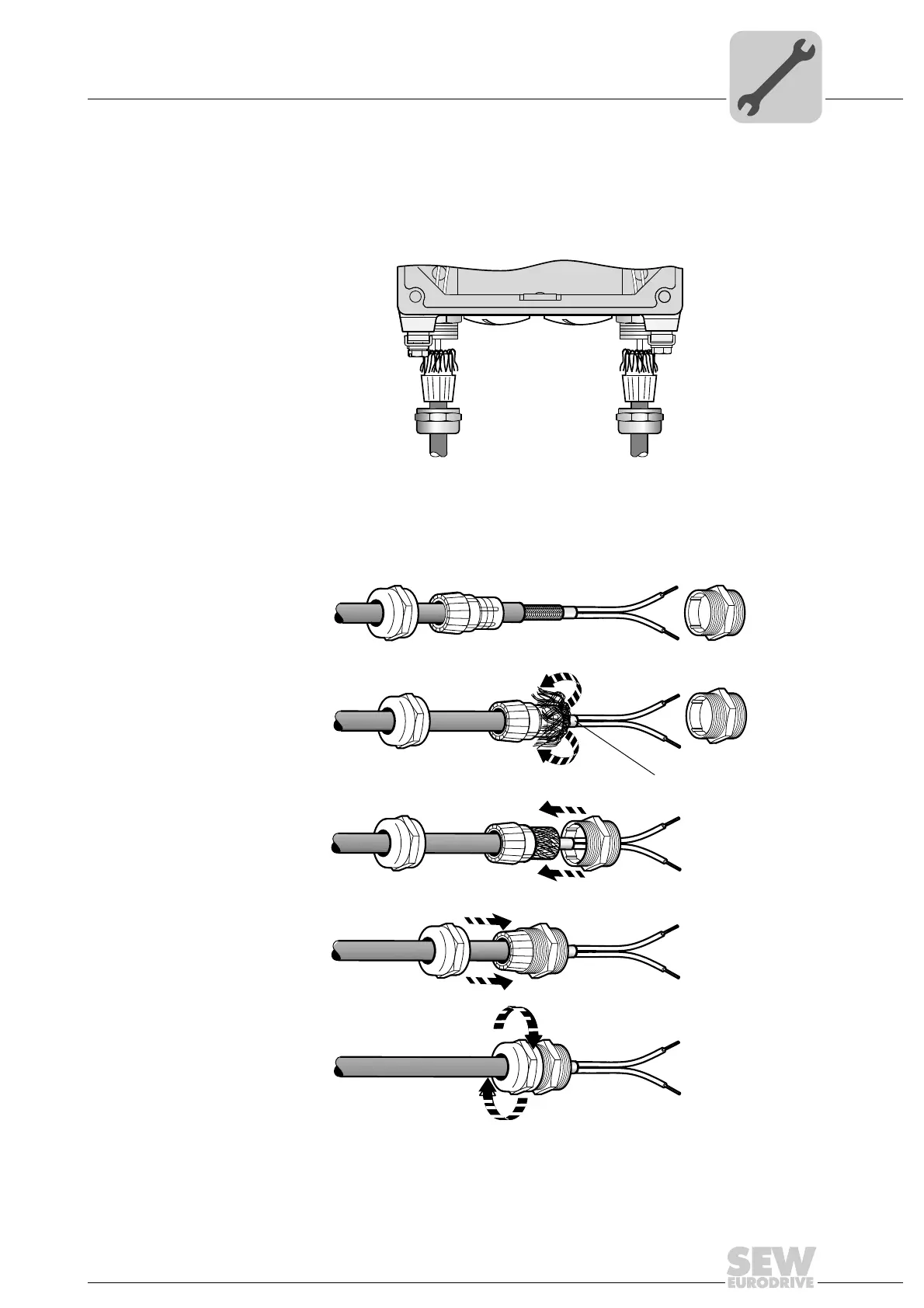

Fit the EMC cable glands supplied by SEW-EURODRIVE according to the following
figure:
3388566411
2661188747
[1] Important: Cut off the insulating foil, do not just fold it back.
[1]
