SEW DRC2 - Description of Status and Operating Displays

146
Operating Instructions – Electronic Motor DRC.-..-SNI
10
Description of status and operating displays
Service
10.5 Description of status and operating displays
10.5.1 LEDs

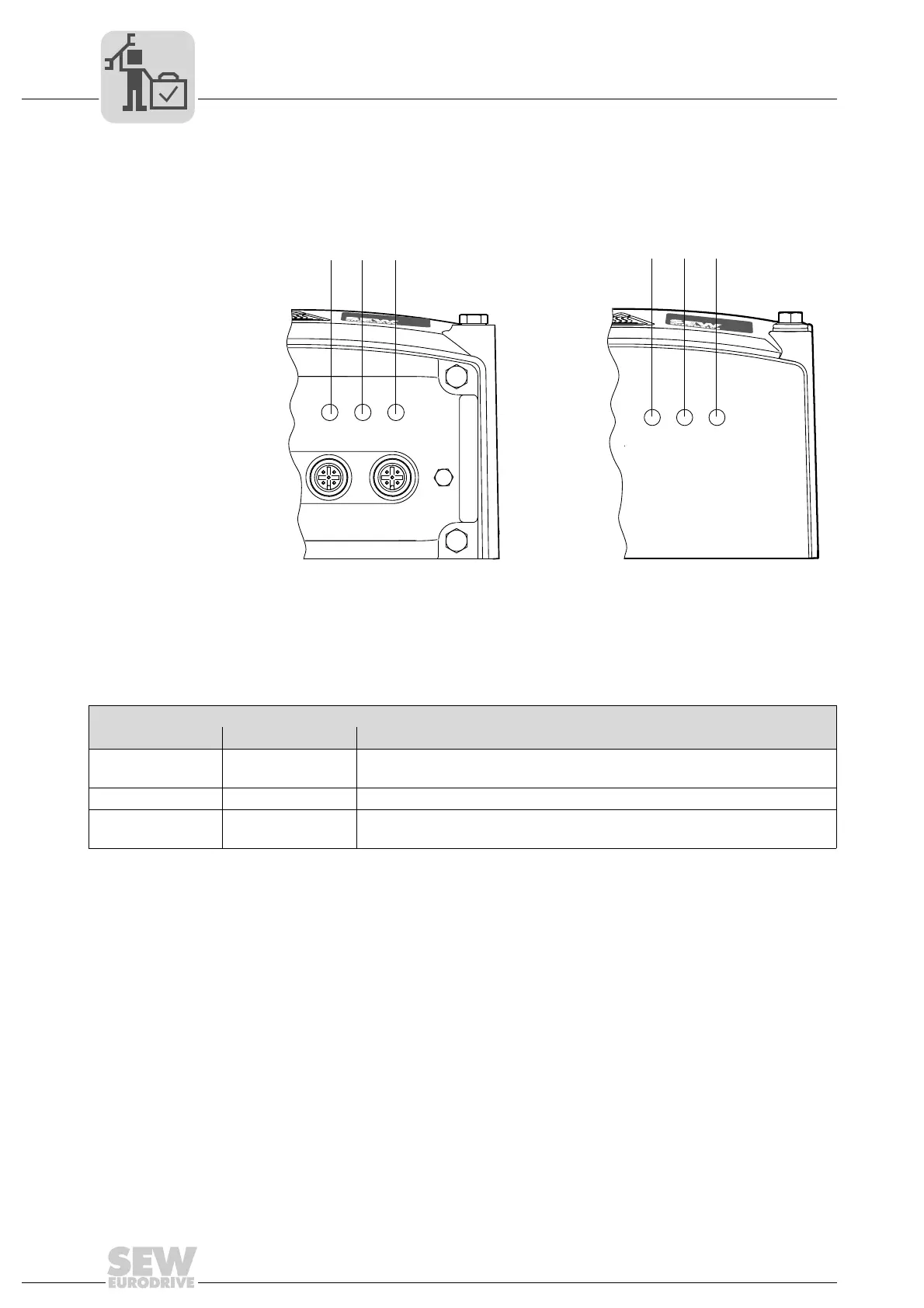

The following figure shows the DRC LEDs:
10.5.2 "NET" LED
9007201629459595
[A] = Variants with application slot
[B] = Variants without application slot
[1] NET LED
[2] RUN LED
[3] "DRIVE" status LED
AB
NET RUN DRIVE
[1] [2] [3]
X3 X2 X1
NET
RUN
DRIVE
[1] [2] [3]
NET LED
Color LED status Description
Green Steady light Communication with the controller not established completely.
Reboot required.
Green Flashing Communication active; data packages are being sent and received.
Green/red Flashing (mixed
color orange)
Communication active; data packages are being sent and received,
Ethernet collision.
