4.5.2 Installing the application options

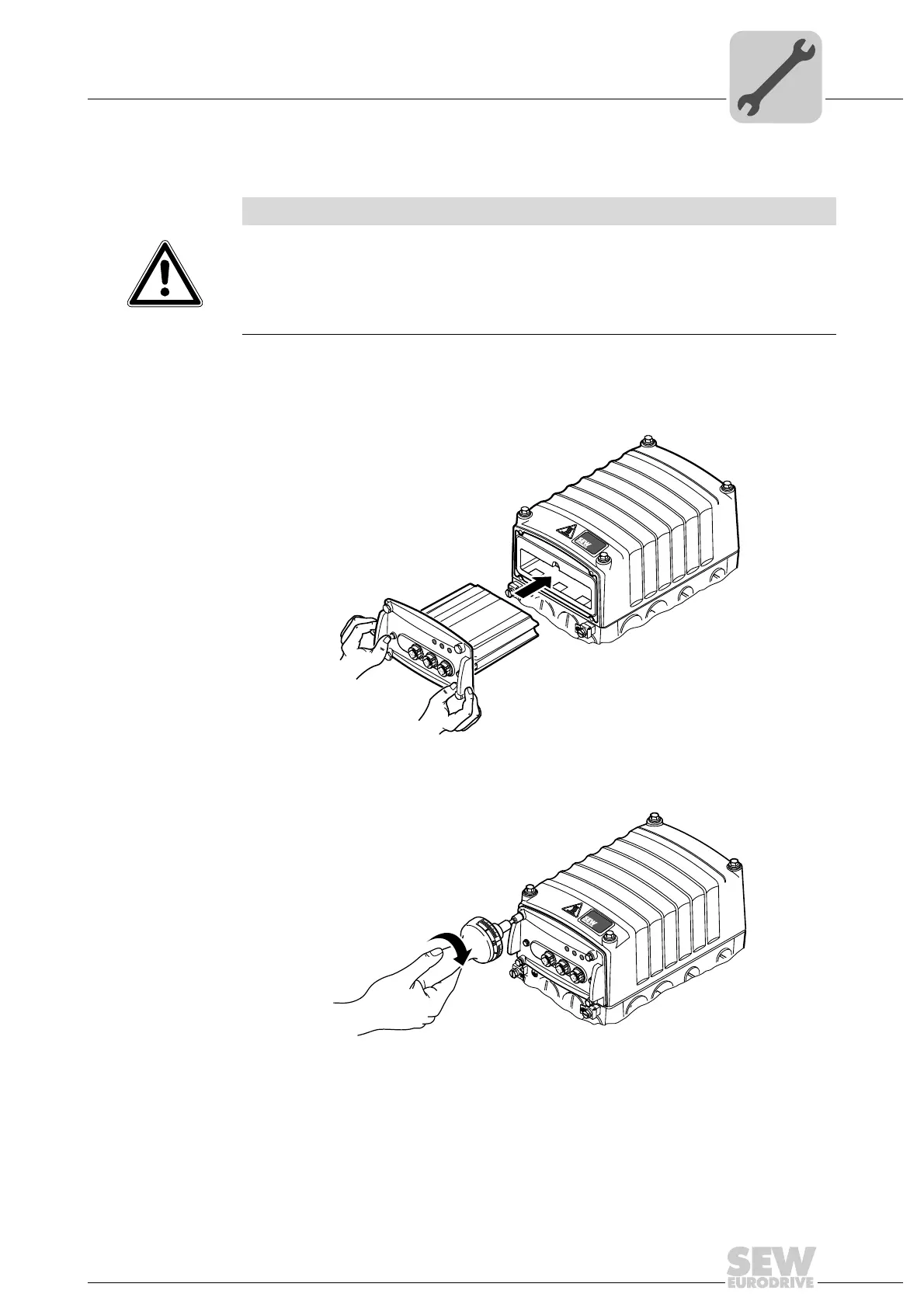

1. You have to remove the application cover or, depending on the design, the paint
protector in order to install an application option:
2. Insert the option into the application slot.
3. Secure the option with the 4 retaining screws. The permitted tightening torque for the
retaining screws is 1.4 - 1.6 Nm.
NOTICE
Loss of the guaranteed degree of protection.
Possible damage to property.
• In disassembled condition, you have to protect the GIO13 application option from
moisture, dust or foreign particles as there are openings for DIP switches.
• Make sure that the application cover is mounted properly.
18014400859846539
18014400859865739
NET
RUN
DRIVE
X4
X3
X2
X1
4 x
