40
8012707/ZVF9/V2-1/2019-04 | SICKOPERATING INSTRUCTIONS | GM32
Subject to change without notice
4 START-UP

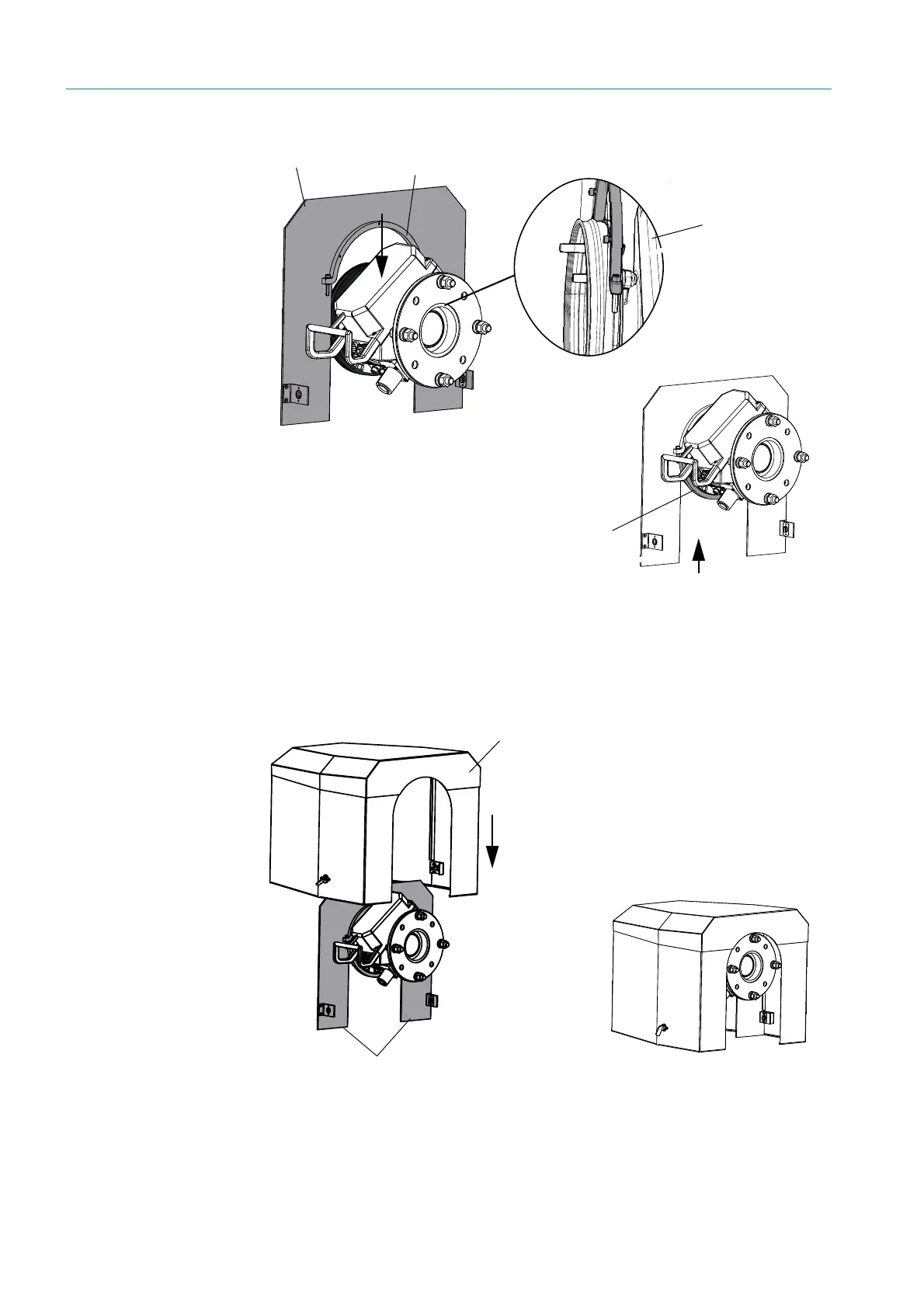

Fig. 24: Fitting the cover on the purge air fixture
▸ Remove the bottom mounting ring.
▸ Place installation plate (1) onto the rubber band of the purge air fixture from the top.
Position the mounting ring on the side of the purge air fixture (2).
▸ Fasten bottom mounting ring (3) again.
2 Fit the cover
Fig. 25: Fitted weatherproof cover
▸ Position the cover on the installation plate from the top.
▸ Engage the locks and close again.
Top mounting ring
Installation plate
Bottom mounting ring
Detailed view
Position the top mount-
ing ring on the side of
the purge air fixture.
(1)
(2)
(3)
Installation plate
Weatherproof cover
