74
8012707/ZVF9/V2-1/2019-04 | SICKOPERATING INSTRUCTIONS | GM32
Subject to change without notice
9 SPECIFICATIONS
9.4 Dimensions

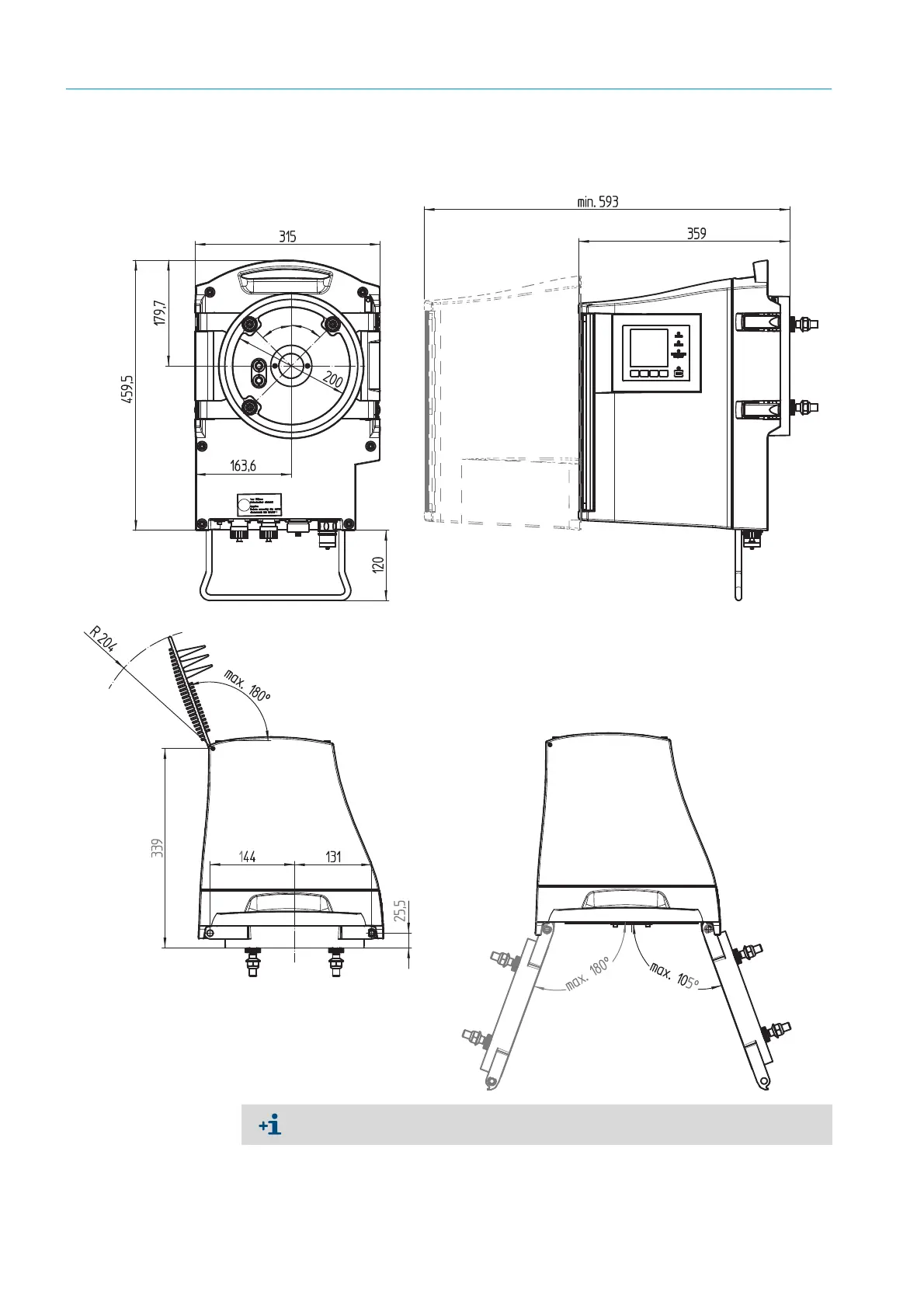

Fig. 39: GM32-sender/receiver unit (all dimensions in mm)
The sender/receiver unit housing can be swiveled to the left or right of the device flange
(max. 180°/105°).
