5 OPERATION
5.2 Operator panel
The operator panel is located on the right side of the SR-unit housing.

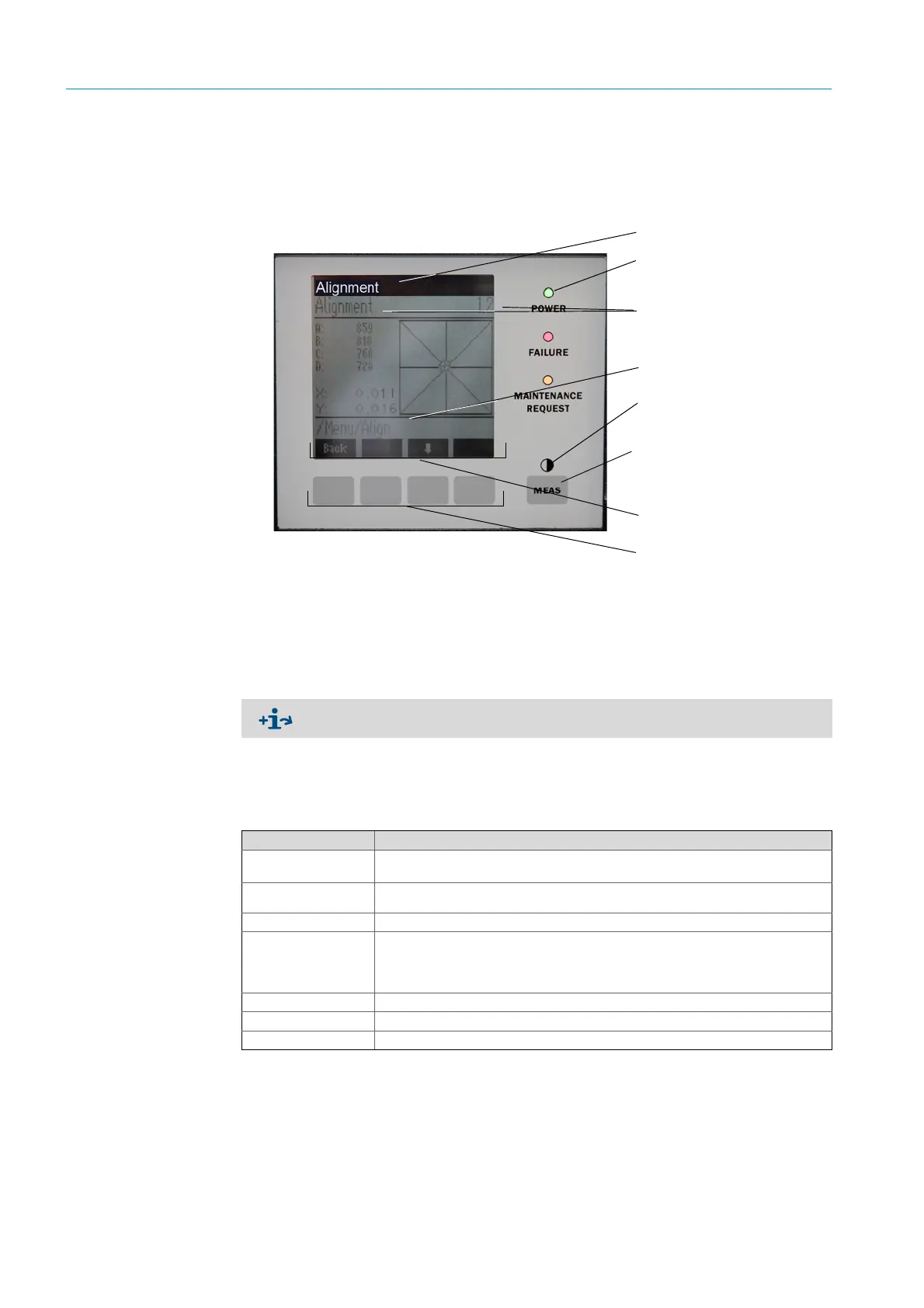

Fig. 26: Significance of display
5.2.1 Status indicators (LEDs)
Significance of LEDs
● Green LED on: Power supply is in order.
● Yellow LED on: Maintenance request.
● Red LED on: Malfunction.
5.2.2 Button assignment
Button assignment depends on the menu selected and is shown above the respective
button.
5.2.3 Contrast setting
1 Press the MEAS button for more than 3 seconds.
2 Set the desired contrast level with both middle buttons  and .
Operating state
Status indicators (LEDs), see
“Diagnosis”, page 44.
Current menu with
menu level (numeric display)
Menu level
Contrast settingsee “Contrast
setting”
MEAS button, see “Button
assignment”.
Significance of button
(menu-dependent), see “But-
ton assignment”.
Buttons
Further information on LED significance, see “Diagnosis”, page 44
Button assignment Significance
MEAS Returns to the display of the measured value screen from any menu
All inputs that have not been terminated with
Save are discarded
F
If the MEAS button is depressed for more than 3 seconds: The contrast setting is displayed
Menu Opens the main menu (menu tree)
Diag
Diag is shown only when there is a message.
Press this button to show message.
Further information on diagnosis,
see “Diagnosis”, page 44
List of error messages, see “Error messages”, page 56
Enter Opens the selected menu level
Save Saves changed parameters
Start Starts the displayed action
