75
8012707/ZVF9/V2-1/2019-04 | SICK OPERATING INSTRUCTIONS | GM32
Subject to change without notice
SPECIFICATIONS 9

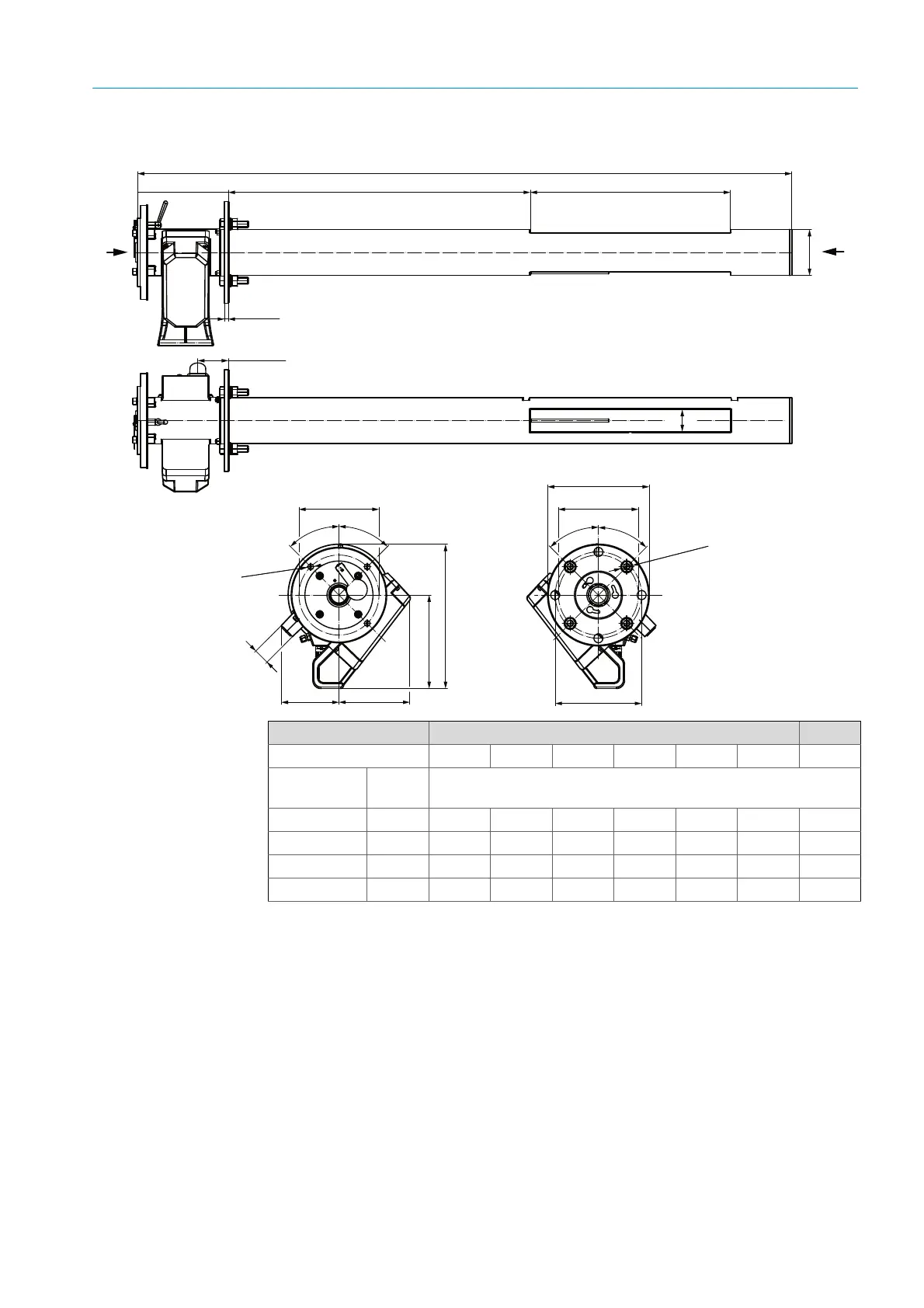

Fig. 40: GM32 measuring probe, type GMP – open measuring probe (all dimensions in mm)
GMP measuring probes Measuring gap L3 (active measuring path)
250 500 750 1.000 1.250 1.500 1.750
Nominal probe
length
L1 L2
900 935 296 -- -- -- -- -- --
1.500 1.644 1.004,5 754,5 504,5 254,5 -- -- --
2.000 2.128 1.489 1.239 989 739 239 239 --
2.500 2.628 1.988 1.738 1.488 1.238 988 738 488
Application-specific lengths on request
Table 36: Probe lengths GMP measuring probes (all dimensions in mm)
Ø 200
Ø 40
Ø 14
360
233,2
176,9
144
45°
45°
Ø 254
Ø 200
Ø 18
Ø 215,8
45°
45°
L1
L2 L3
Ø 114,3
10
227
55
76,4
B
A
B
A
