8012707/ZVF9/V2-1/2019-04 | SICKOPERATING INSTRUCTIONS | GM32
Subject to change without notice
9 SPECIFICATIONS

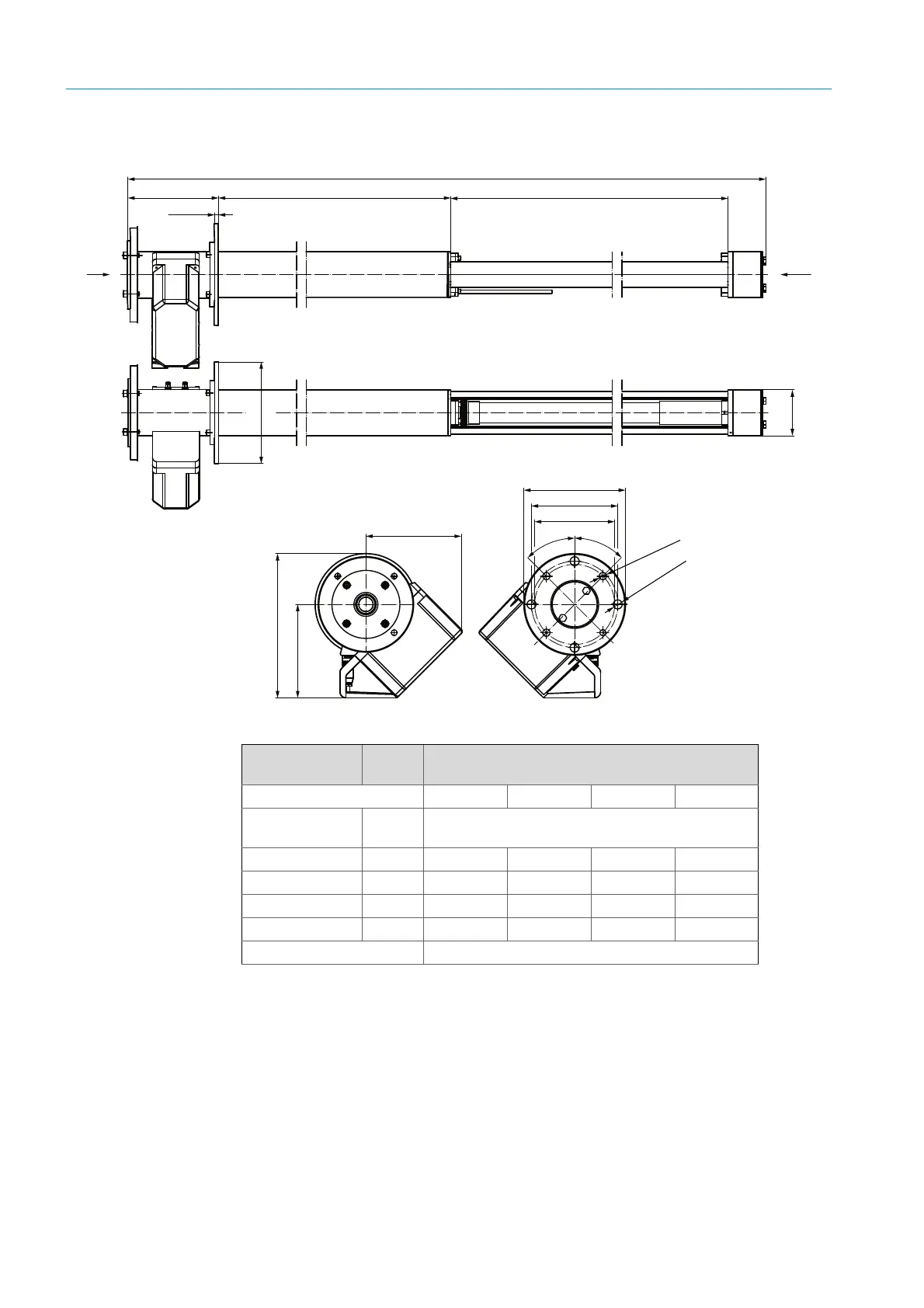

Fig. 41: GM32 measuring probe, type GPP – gas diffusion probe (all dimensions in mm)
GPP measuring
probes
Measuring gap L3 (active measuring path)
227 477 727 977
Nominal probe
length
L1 L2
900 914 353 103 -- --
1,500 1,624 1,063 813 563 313
2,000 2,108 1,547 1,297 1,047 797
2,500 2,608 2,047 1,797 1,547 1,297
All dimensions in mm
Application-specific lengths on request
Table 37: Probe lengths GPP measuring probes (all dimensions in mm)
Ø 254
Ø 215,8
Ø 22,4
45°
Ø 18
45°
Ø 200
B
A
238
360
233
Ø 254
Ø 114,3
L2
L1
L3
B
10
227
A
