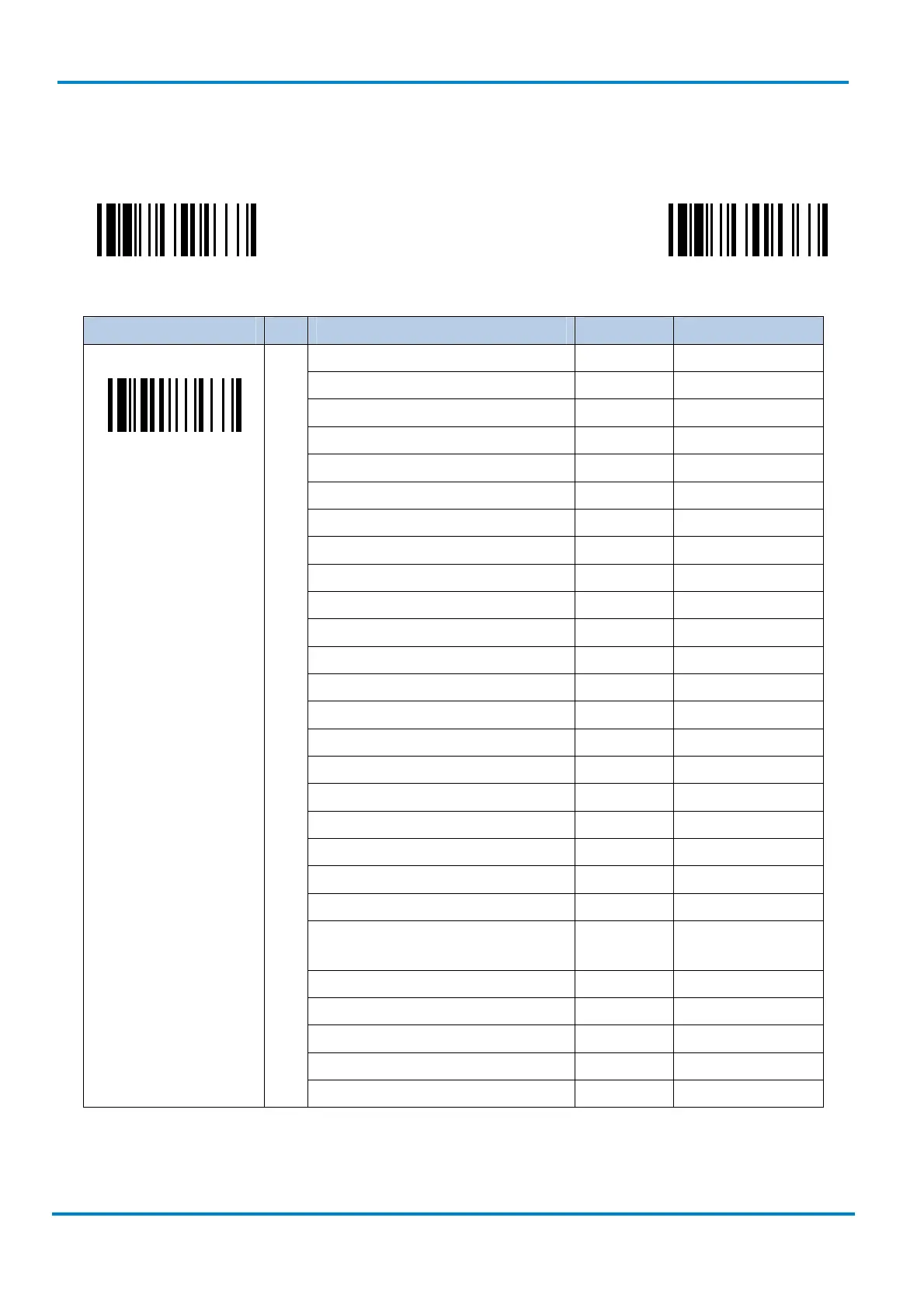

2.4 Symbology Reading Control
2.4.1 User Defined Symbol ID
PROGRAM F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code 2nd Option Code
Code 128 (default=B) 00 (1 character)
GS1-128 (default=C) 01 (1 character)
UPC-A (default=A) 02 (1 character)
EAN-13 (default=F) 03 (1 character)
Codabar/NW-7 (default=D) 04 (1 character)
Code 39/Code 32 (default=G) 05 (1 character)
Code 93 (default=H) 06 (1 character)
Standard/Industrial 2 of 5 (default=I) 07 (1 character)
Interleaved 2 of 5 (default=J) 08 (1 character)
Matrix 2 of 5 (default=K) 09 (1 character)
China Postal Code (default=L) 10 (1 character)
German Postal Code (default=M) 11 (1 character)
IATA (default=O) 12 (1 character)
Code 11 (default=P) 13 (1 character)
MSI/Plessey (default=R) 14 (1 character)
UK/Plessey (default=S) 15 (1 character)
Telepen (default=T) 16 (1 character)
GS1 DataBar (default=X) 17 (1 character)
UPC-E (default=E) 18 (1 character)
EAN-8 (default=N) 19 (1 character)
Trioptic Code 39 (default=W) 20 (1 character)
UCC Coupon Extended Code
(default=Z)
21 (1 character)
PDF417/Micro PDF417 (default=V) 22 (1 character)
Codablock F (default=Y) 23 (1 character)
Code 16K (default=Q) 24 (1 character)
Code 49 (default=U) 25 (1 character)
Symbol ID 1 character
DS
Korea Post Code (default=a) 26 (1 character)
To Next Page
