Keyboard Interface Control
User Instructions
IDM corded
44
© SICK AG · Germany · All rights reserved · Subject to change without notice 8015906/2013-07-02

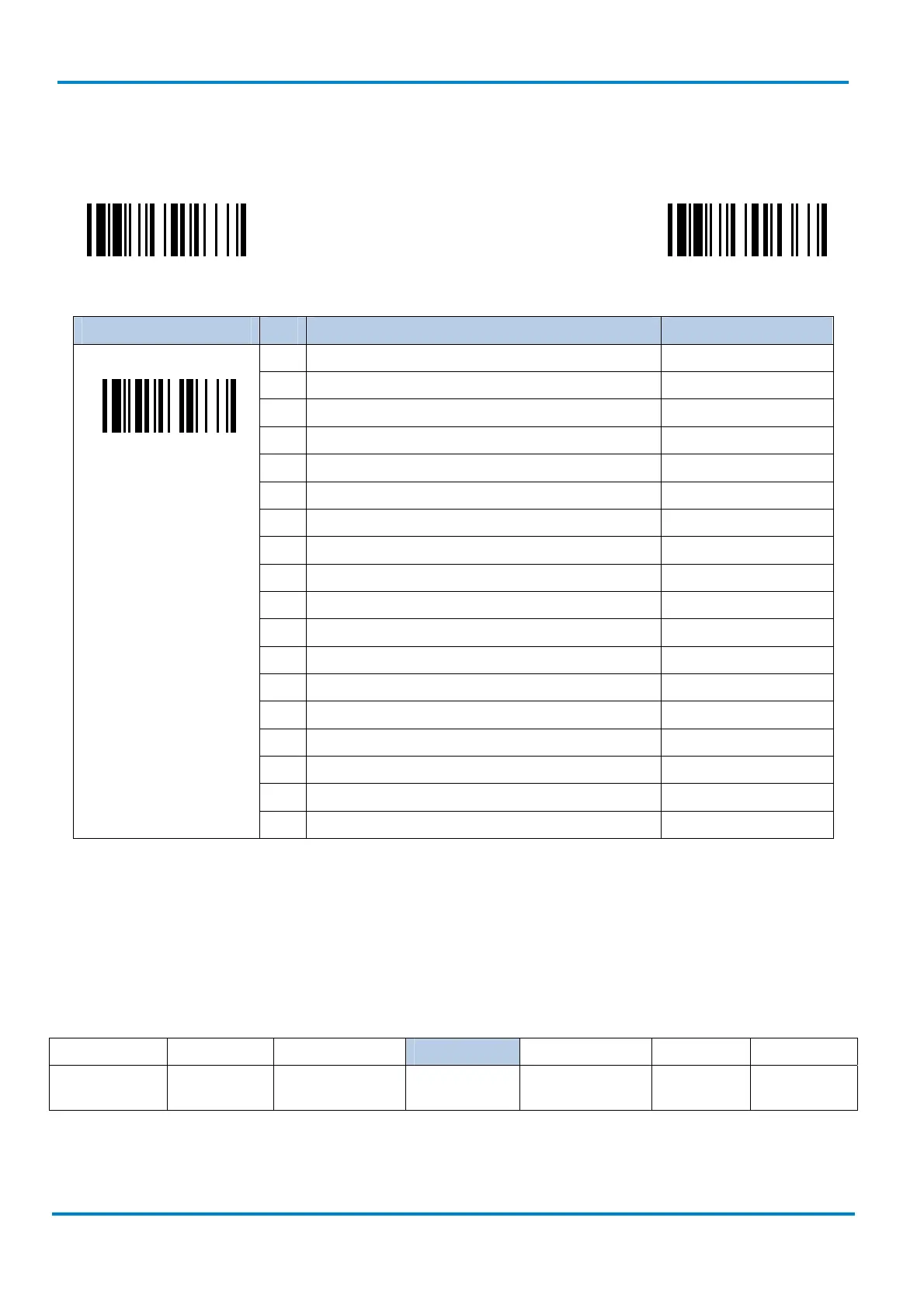

2.5 Keyboard Interface Control
2.5.1 Keyboard Layout (Language) Settings
PROGRAM F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Keyboard Layout
SS USA (QWERTY) 00
SS France (AZERTY) 01
SS Germany (QWERTZ) 02
SS United Kingdom (QWERTY) 03
SS Canadian French (QWERTY) 04
SS Spain (Spanish, QWERTY) 05
SS Sweden/Finland (QWERTY) 06
SS Portugal (QWERTY) 07
SS Norway (QWERTY) 08
SS Spain (Latin America, QWERTY) 09
SS Italy (QWERTY) 10
SS Netherlands (QWERTY) 11
SS Denmark (QWERTY) 12
SS Belgium (AZERTY) 13
SS Switzerland-Germany (QWERTZ) 14
SS Iceland (QWERTY) 15
SS Japan (DOS/V) 16
SS Czech (QWERTY) 17
Please refer to the ASCII/HEX Table listed in the Appendix to determine the HEX codes for characters,
symbols, and functions to be used as preamble or postamble.
To set preamble or postamble as function key output, you must enable the “Function Key Emulation” feature
first.
Keyboard Interface Message String:
Preamble Data Length Prefix Symbol ID Scanned Data
Suffix Symbol ID Postamble Record Suffix
1-15
characters
2-4 digits 1 or 3 characters
Variable
length
1 or 3 characters
1-15
characters
1 character
To Next Page
