User Instructions
Condensed Data Wizard
IDM corded
8015906/2013-07-02 © SICK AG · Germany · All rights reserved · Subject to change without notice
71
2.11.3 Data Verifier Settings
The Data Verifier is used to provide advanced verification for error-free scanning and to work as an Embedded
Data Transmitting Filter. All data must conform to the Identified Barcode Symbologies, Identified Data Length,
and one to three Identified Characters in the checking position. Otherwise, the Hand-held scanner will not
transmit the data to the host computers or terminals, but will instead issue 3 long beeps for verification error
and skip the scanned data. The Data Verifier checks only scanned data without Preamble, Postamble, STX,
ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix. Regarding the “Bar Code Selection” and
“Position Calculation” of Data Verifier, please refer to page 74 and 75 for details. All “Character” input should
be ref
erred to the ASCII/HEX Table listed in the Appendix (page 79) to find matched HEX value.

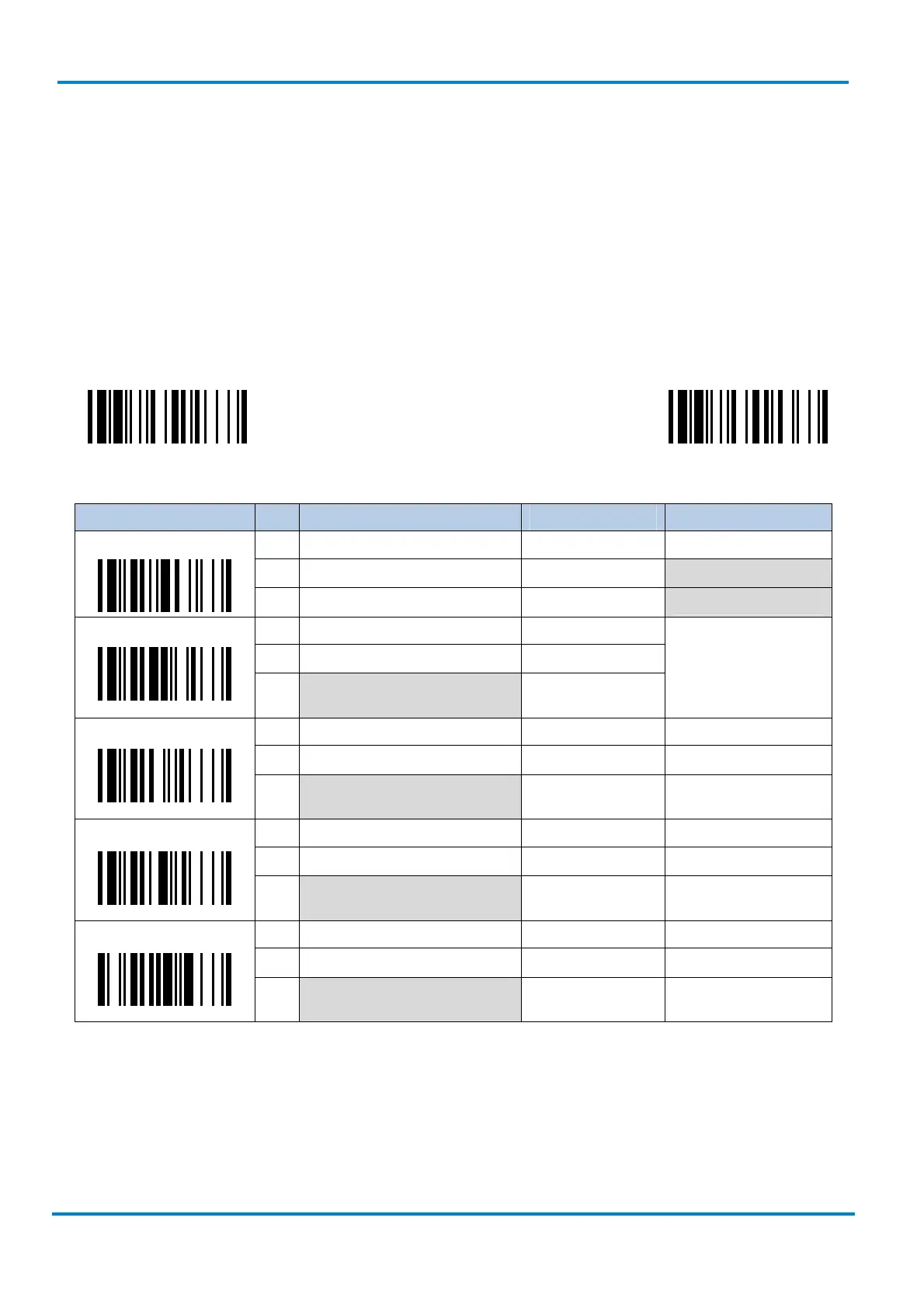

PROGRAM F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code 2nd Option Code
SS Disable FIN
MS
Select one barcode symbology (2 digits)
Automatic termination
Verifier Control
MS
Select all barcode symbologies 00
Automatic termination
SS Disable FIN
DS
Enable (2 digits)
Identified Data Length
Determine the identified data length
for verification.
SS Disable FIN
DS
Enable Position: (2 digits) [00-7F]
1st identified character
2-digits checking position; 1
identified character
SS Disable FIN
DS
Enable Position: (2 digits) [00-7F]
2nd identified character
2-digits checking position; 1
identified character
SS Disable FIN
DS
Enable Position: (2 digits) [00-7F]
3rd identified character
2-digits checking position; 1
identified character
To Next Page
