2.11.5 Data Organizer Settings
The Data Organizer is used to edit the scanned raw data prior to transmitting the data to the host computers
or terminals. It allows you to select desired barcode symbologies for organizer control and provides maximum
two identified positions to send the data forward or backward. It also allows you to control the transmitted
data including or excluding the data of identification position. Please refer to the application example listed in
page 75 for details. While the Data Organizer is enabled, it arranges only scanned data without Preamble,
Posta
mble, STX, ETX, Data Length, Prefix/Suffix Symbology ID or Record Suffix. Regarding the “Bar Code
Selection” and “Position Calculation” of Data Organizer, please refer to page 74 and 75 for details. All
“
Character” input should be referred to the ASCII/HEX Table listed in the Appendix (page 79) to find matched
HEX value.

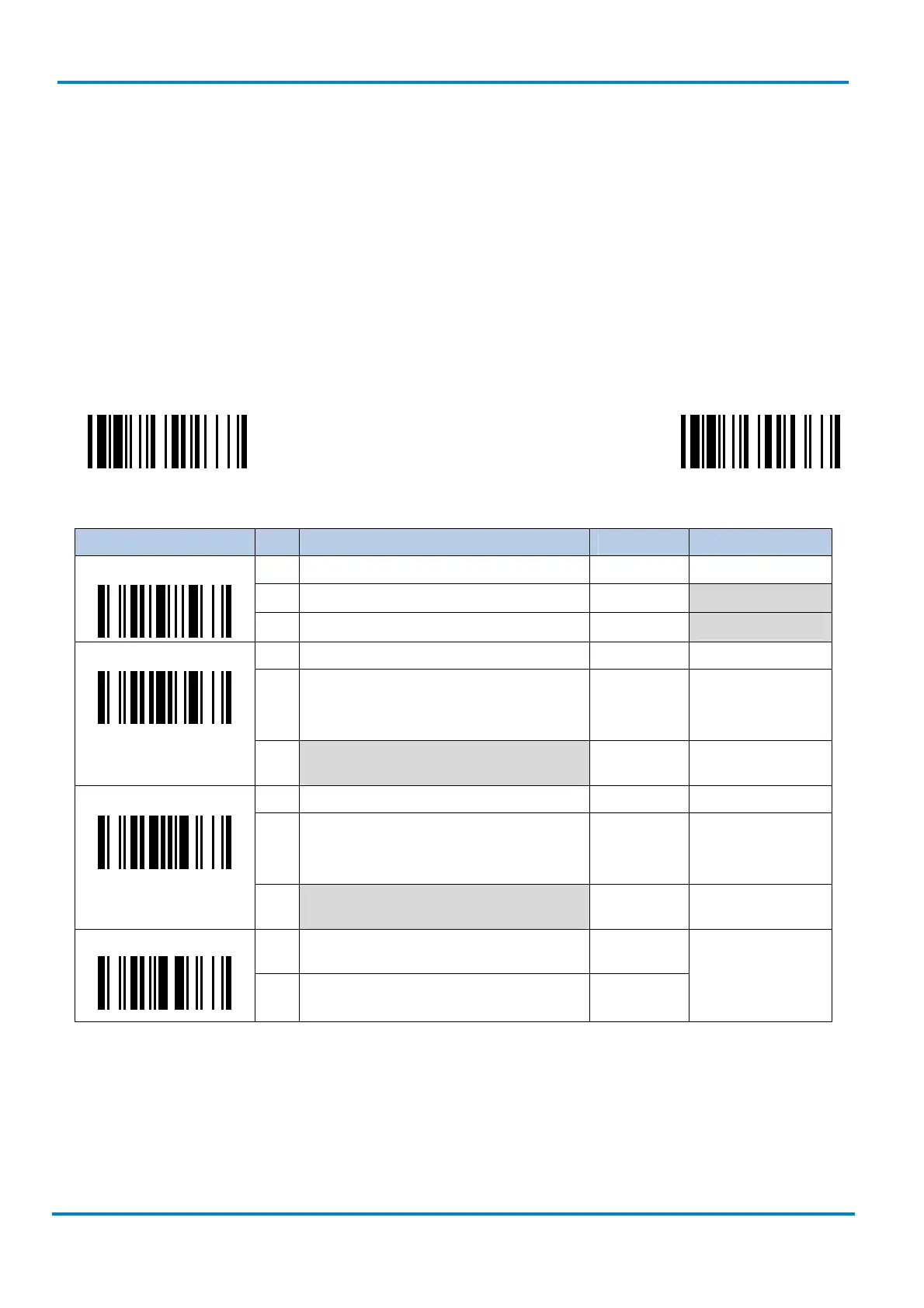

PROGRAM F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code 2nd Option Code
SS Disable FIN
MS
Select one barcode symbology (2 digits)
Automatic termination
Organizer Control
MS
Select all barcode symbologies 00
Automatic termination
SS Disable FIN
DS
Enable (2 digits)
position
direction
0 (Forward)
1 (Backward)
1st Organization
2-digits identified position; Forward/ backward
data transmission setting
SS Disable FIN
DS
Enable (2 digits)
position
direction
0 (Forward)
1 (Backward)
2nd Organization
2-digits identified position; Forward/ backward
data transmission setting
SS Transmitted data excluded the data of
identified position
0
Include/ Exclude Control
DS
Transmitted data included the data of
identified position
1
