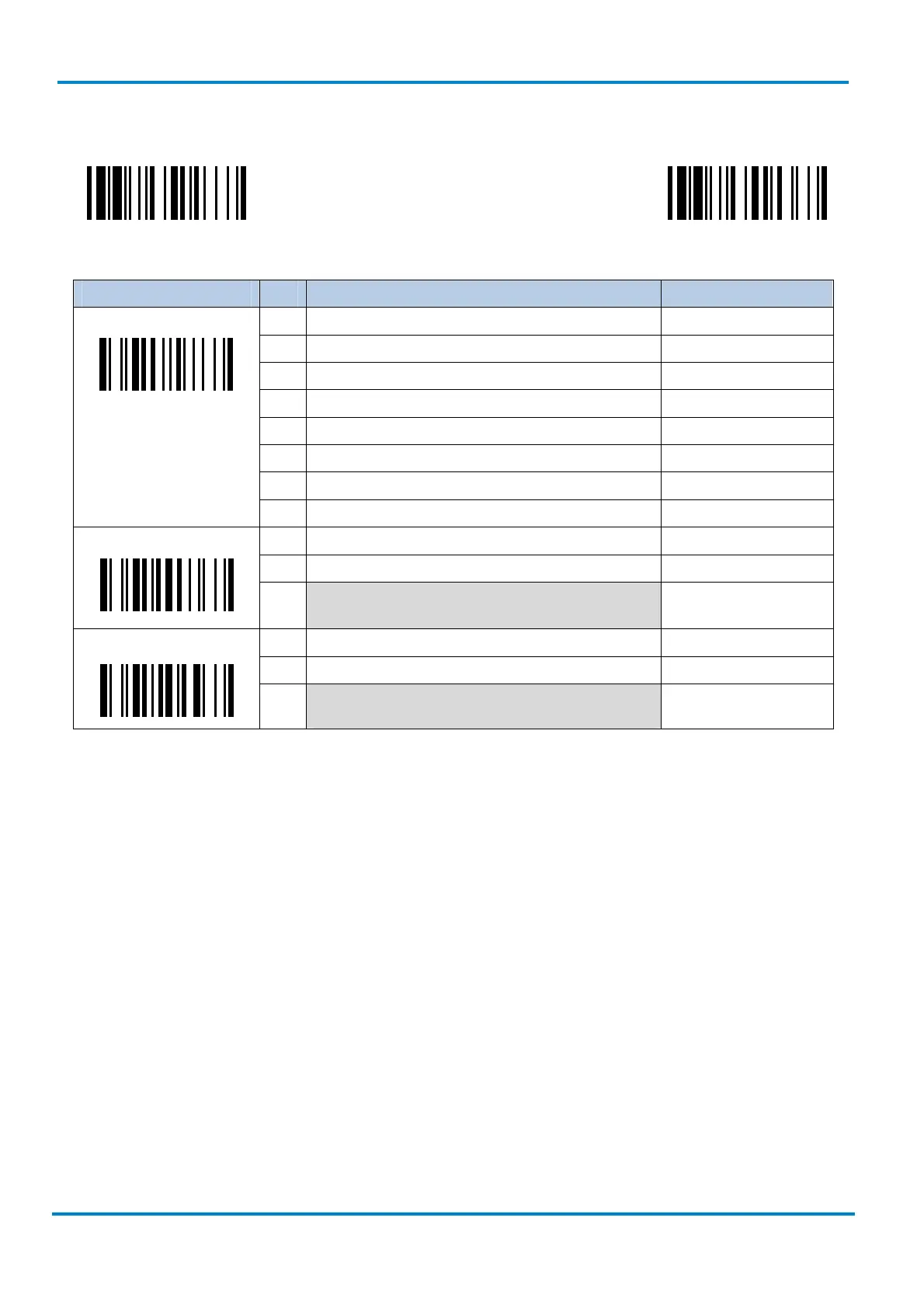

2.4.22 Data Matrix Settings
PROGRAM F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
Data Matrix Settings
SS Disable Data Matrix 0
SS Enable Data Matrix  1
SS Disable Data Matrix Inverse Reading 4
SS Enable Data Matrix Inverse Reading 5
SS Auto Detect Data Matrix Inverse Reading  6
SS Disable Data Matrix Mirror Images 7
SS Enable Data Matrix Mirror Images 8
SS Auto Detect Data Matrix Mirror Images  9
SS Default (01)  FIN
MS 01-Maximum (4 digits)
Data Matrix Min. Length
Scan 4 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
SS Default (3116)  FIN
MS 3116-Minimum (4 digits)
Data Matrix Max. Length
Scan 4 digits from the option code chart in the Appendix;
then the scanner will terminate this selection automatically.
