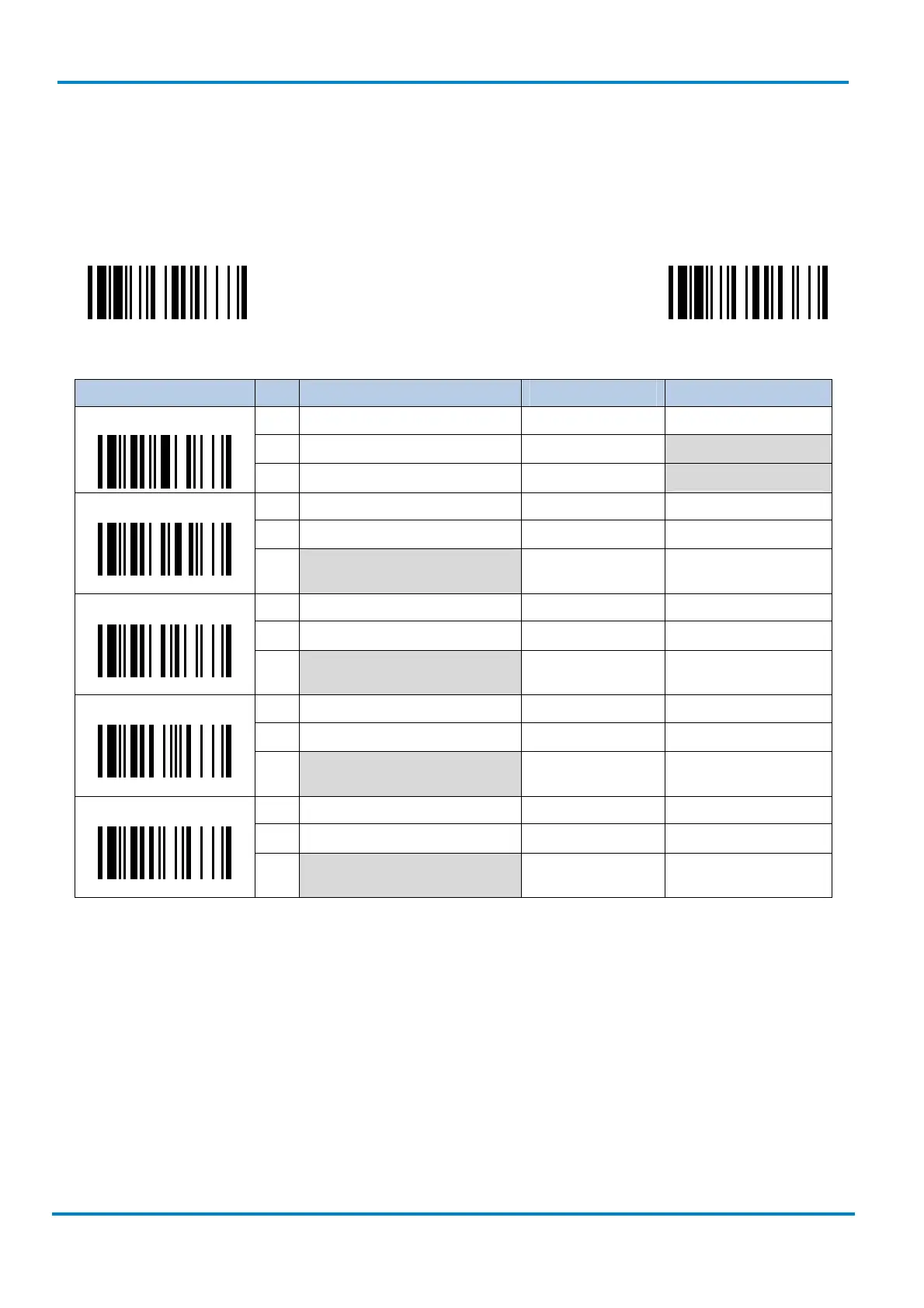

2.11.2 Data Formatter Settings
The Data Formatter is used to edit the scanned raw data prior to transmitting the data to the host computers
or terminals. It allows you to select desired barcode symbologies for formatter control and provides Multiple
Position Insertion and Multiple Character Insertion (max three characters) in the identified position.
PROGRAM F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code 2nd Option Code
SS Disable  FIN
MS
Select one barcode symbology (2 digits)
Automatic termination
Formatter Control
MS
Select all barcode symbologies 00
Automatic termination
SS Disable  FIN
DS
Enable Position: (2 digits) [1-3 characters]; [FIN]
1st insertion

2-digits identified position; max. 3
insertion characters
SS Disable  FIN
DS
Enable Position: (2 digits) [1-3 characters]; [FIN]
2nd insertion

2-digits identified position; max. 3
insertion characters
SS Disable  FIN
DS
Enable Position: (2 digits) [1-3 characters]; [FIN]
3rd insertion

2-digits identified position; max. 3
insertion characters
SS Disable  FIN
DS
Enable Position: (2 digits) [1-3 characters]; [FIN]
4th insertion

2-digits identified position; max. 3
insertion characters
While the Data Formatter is enabled, it arranges only scanned data without Preamble, Postamble, STX, ETX,
Data Length, Prefix/Suffix Symbology ID or Record Suffix. All of the above programmable parameters perform
the same function depending on your setting.
Regarding the “Bar Code Selection” and “Position Calculation” of data formatter, please refer to page 74 and
75 for details. All “Character” input should be referred to th
e ASCII/HEX Table listed in the Appendix (page 79)
to find matched HEX value.
