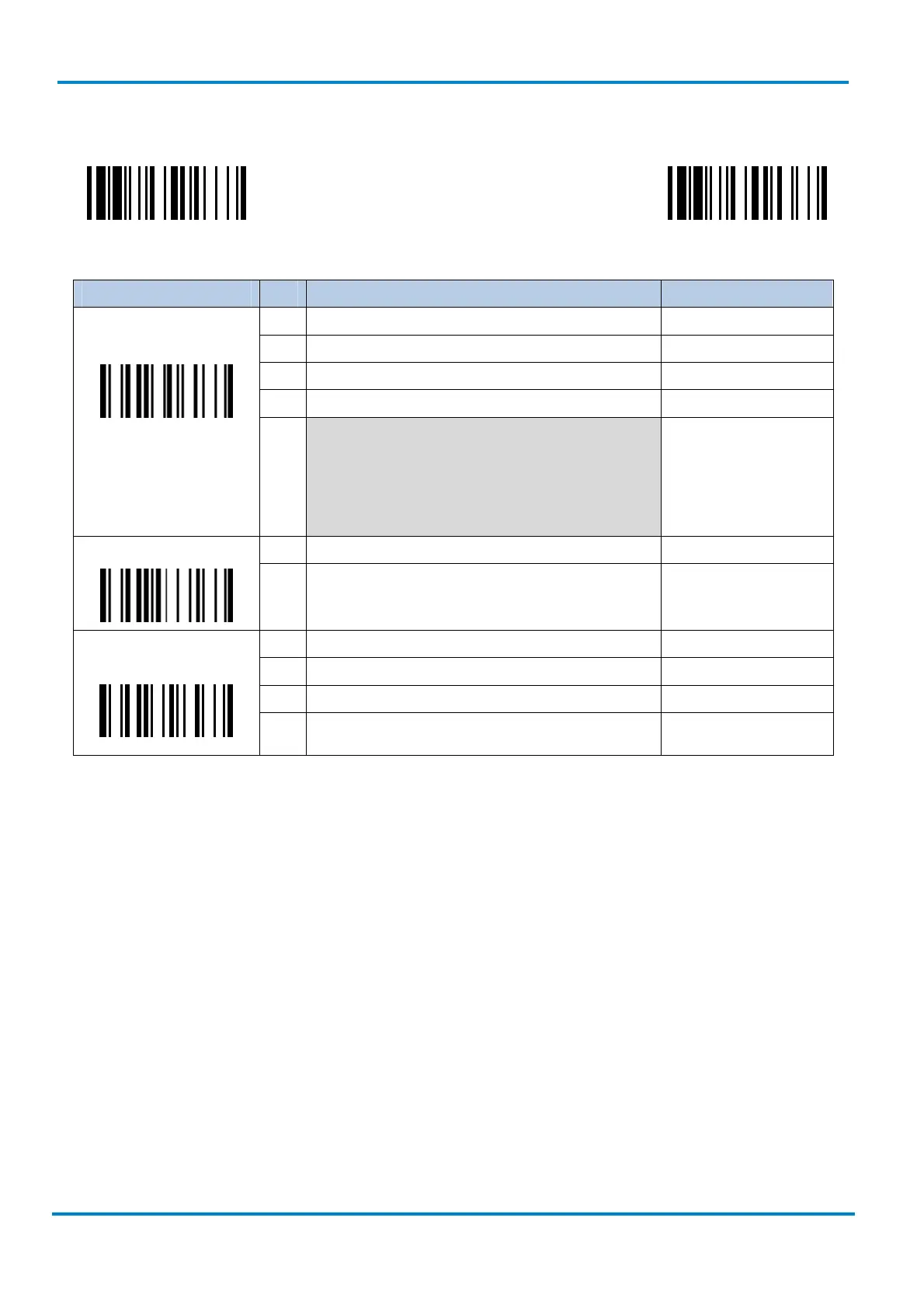

2.4.19 Composite Codes, Codablock F, PDF417, Micro PDF417 Settings
PROGRAM F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
SS Disable composite codes 0
SS Enable composite codes 1
SS UPC Composite Mode: UPC never linked 2
SS UPC Composite Mode: UPC always linked 3
Composite Codes
Settings
If “UPC Composite Mode: UPC never linked” is selected, UPC
barcodes are transmitted whether Micro PDF417 symbol is
detected or not.
If “UPC Composite Mode: UPC always linked” is selected,
UPC barcodes are only transmitted when the Micro PDF417
is detected.
SS Disable 0
Codablock F Settings
SS Enable
1
SS Disable PDF417 0
SS Enable PDF417 1
SS Disable MicroPDF417 2
PDF417/ Micro PDF417
Settings
SS Enable MicroPDF417 3
To Next Page
