Symbology Reading Control
User Instructions
IDM corded
26
© SICK AG · Germany · All rights reserved · Subject to change without notice 8015906/2013-07-02
Supplement Scan Voting
The Supplement Scan Voting is the number of times the same UPC/EAN with 2/5 supplement digits has to be
decoded before it is transmitted. It is helpful when decoding a mix of UPC/EAN symbols with and without
supplement digits. This function is effective when you select UPC/EAN with only 2 supplement digits,
UPC/EAN with only 5 supplement digits or UPC/EAN with 2/5 supplement digits. The default value is Level 3.
When you select a higher level, it may impact the reading speed on poorly-printed, low contrast or damaged
barcode labels.

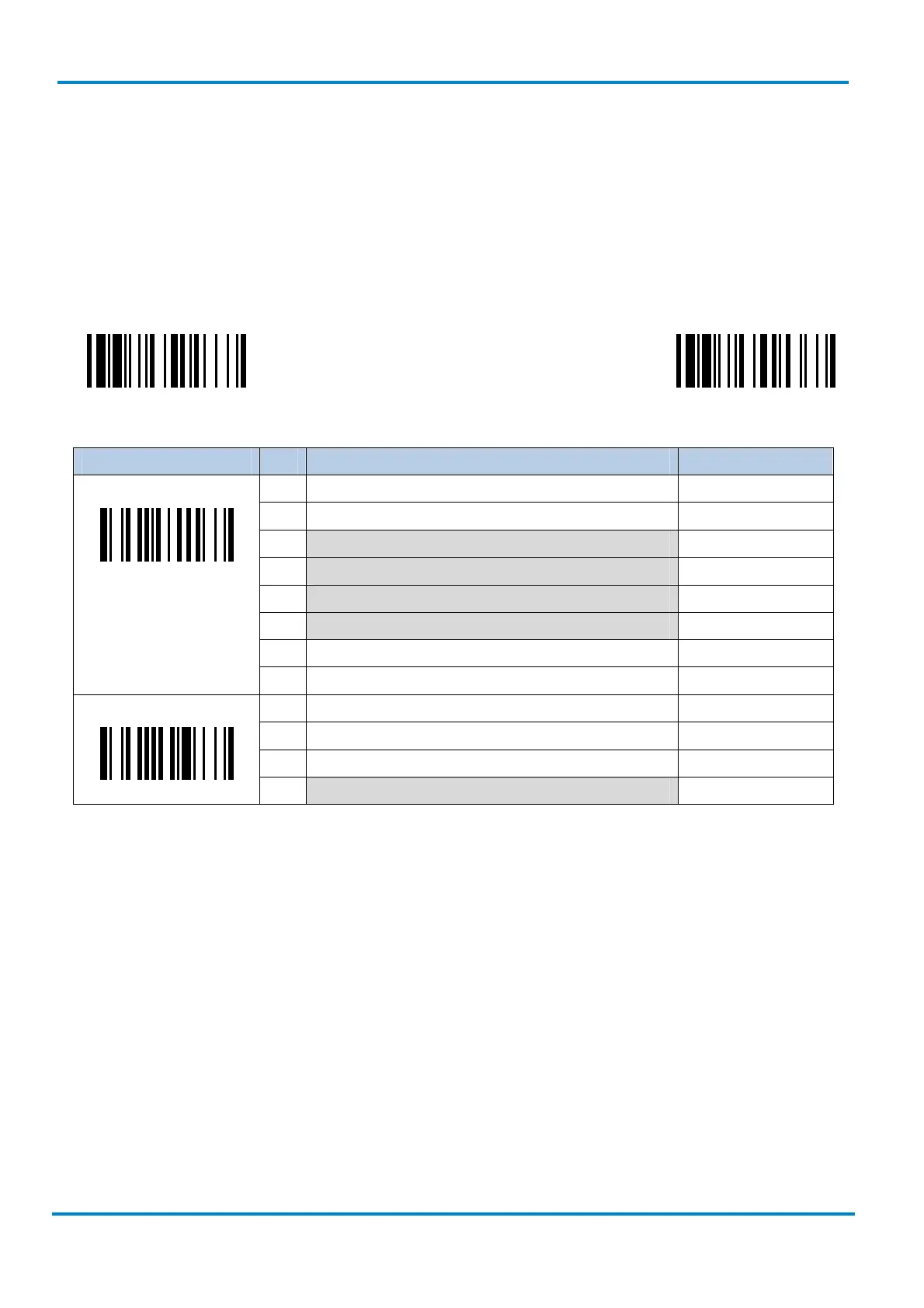

PROGRAM F_DEFAULT
Family Code Selection P.C. Parameter Selection Option Code
EAN Supplement Control
SS Disable all specific prefix supplement digital output 0
SS Enable all specific prefix supplement digital output 1
SS Enable 491 Supplement Digit Output 2
SS Enable 978/979 Supplement Digit Output 3
SS Enable 977 Supplement Digit Output 4
SS Enable 378/379 Supplement Digit Output 5
SS Enable 414/419 Supplement Digit Output 6
SS Enable 434/439 Supplement Digit Output 7
SS Level 0 0
SS Level 1 1
SS Level 2 2
UPC/ EAN Security Level
Only available for UPC-A & EAN-13
EAN Supplement Control
If you select EAN with only 2 or 5 or 2/5 supplement digits and enable 491 prefix supplement digit output, the
scanner will transmit EAN with 2, or 5 or 2/5 supplement digits bar codes starting with 491 prefix. The EAN
without supplement digit will not be transmitted.
If you select EAN with only 2 or 5 or 2/5 supplement digits and enable the other except 491 prefix
supplement digit output, the scanner will transmit EAN with 2, or 5, or 2/5 supplement digits bar codes
starting with specific prefix. The EAN without supplement digit will be transmitted.
