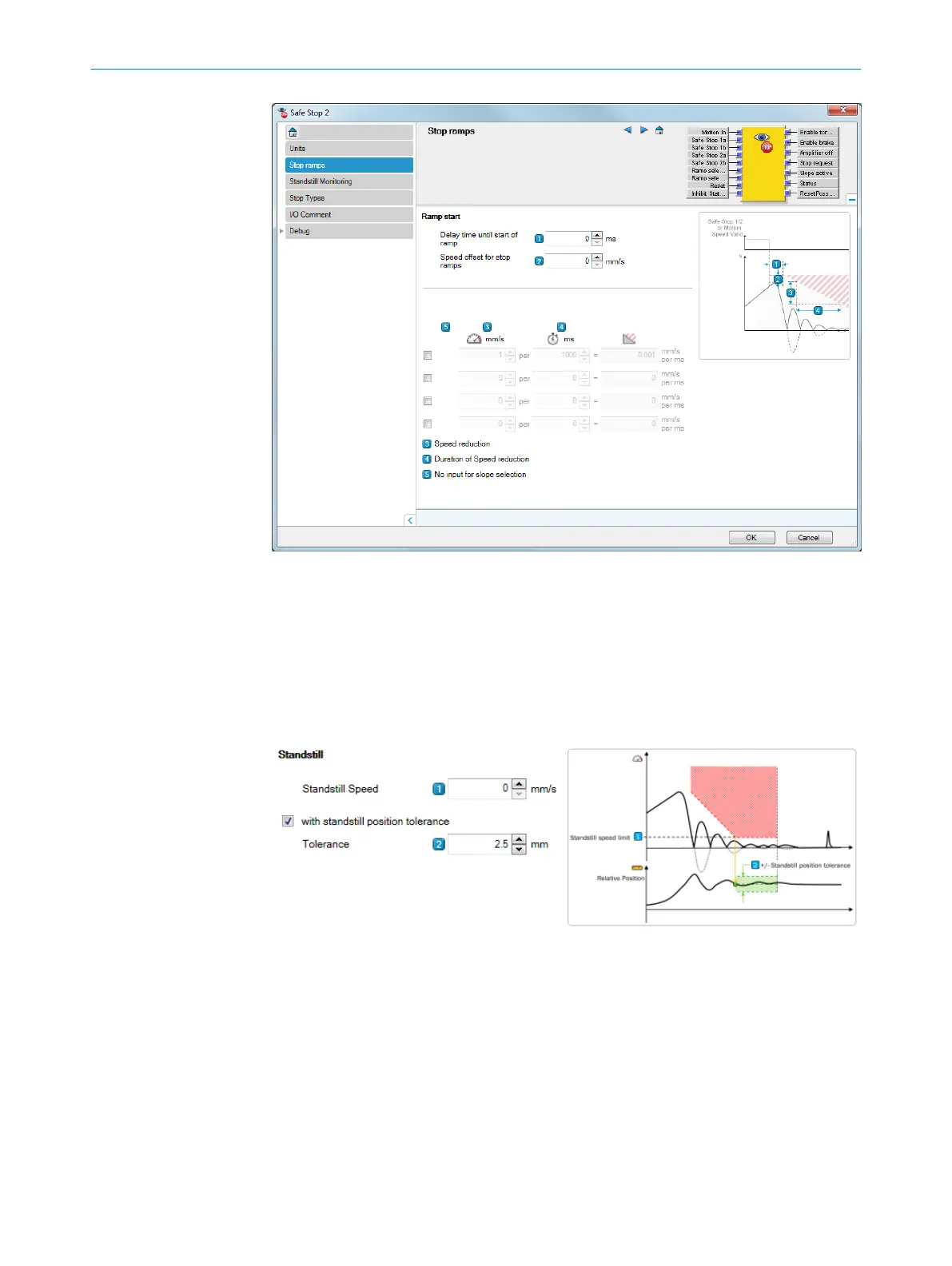

Figure 16: Stop Ramps function block
7.3.7.2 Safe Stop settings - Standstill Monitoring function block
The Safe Stop function block includes a separate function block called Standstill Moni‐
t
oring.
This Standstill Monitoring function block is only used for the Safe Stop function. It is
used to determine when a ramp ends or to monitor the standstill position in the case of
a Safe Stop 2 function.
Figure 17: Standstill Monitoring function block
CONFIGURATION 7
8020941/12O9/2019-08-05 | SICK O P E R A T I N G I N S T R U C T I O N S | Safe Linear Positioning
47
Subject to change without notice
