4.4.2 Collision protection
The S100 is used for collision protection between vehicles on an electrical overhead
conveyor. The laser scanner is, for example, integrated into the control such that the
interruption of switching field 1 slows down the vehicle, the interruption of switching field 2
stops the vehicle.
4.4.3 Protection of the area behind a vehicle
The S100 supports the driver when reversing. Switching field 2 switches on a warning
signal, switching field 1 reduces the vehicle speed to creep speed.

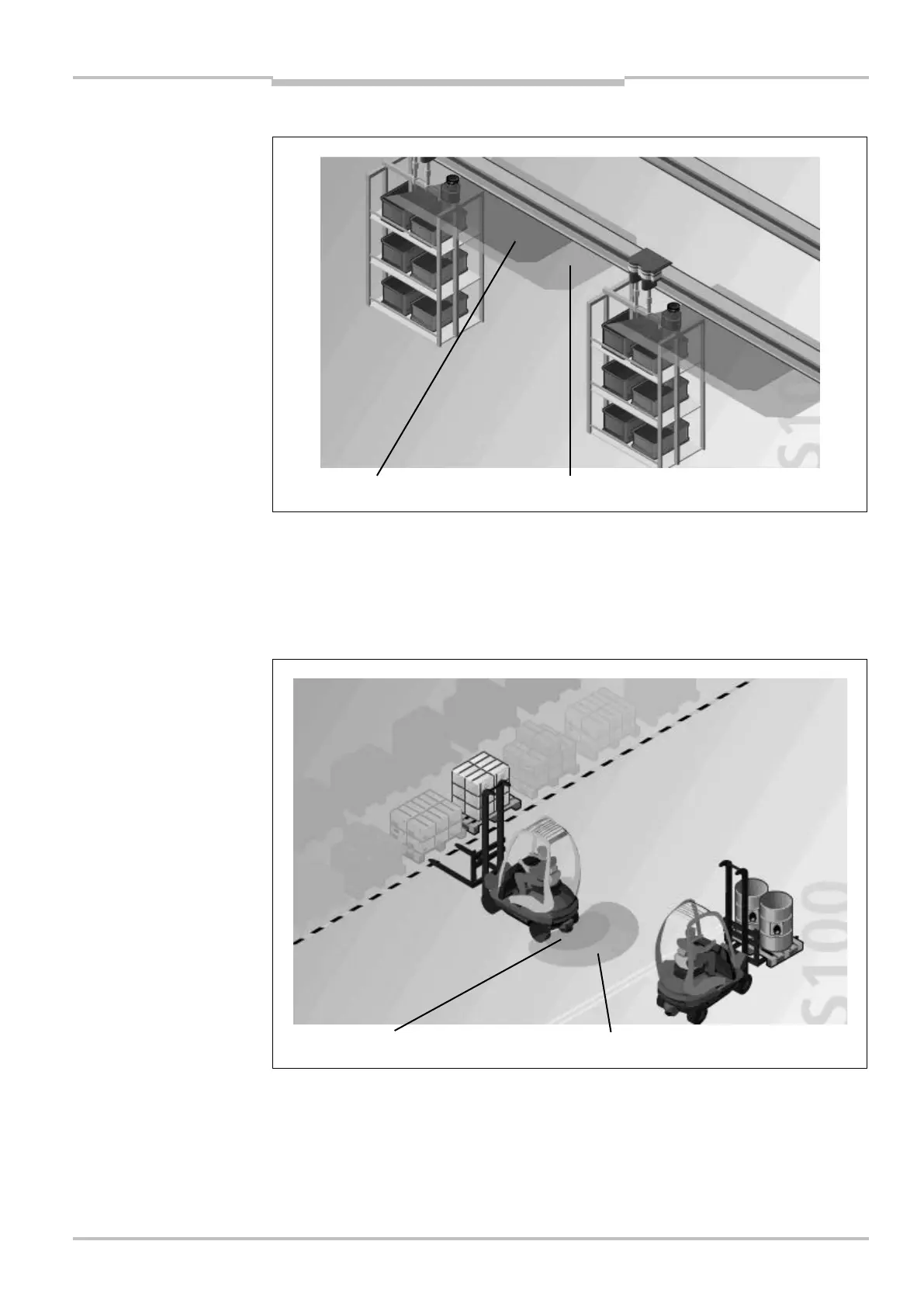

Fig. 7: Example collision
protection
Fig. 8: Example protection of
the area behind a vehicle
Switching field 1
Switching field 2
Switching field 2
Switching field 1
