Chapter 5 Operating instructions
S100
28 © SICK AG • Subject to change without notice 8012238/YY30/2015-02-20
Mounting
Mount mounting kit 1a or 1b on the mounting surface.
Then mount the S100 on the mounting kit 1a or 1b.
During mounting, please observe the dimensional drawings (see section 12.4 “Dimen-
sional drawings” on page 60).

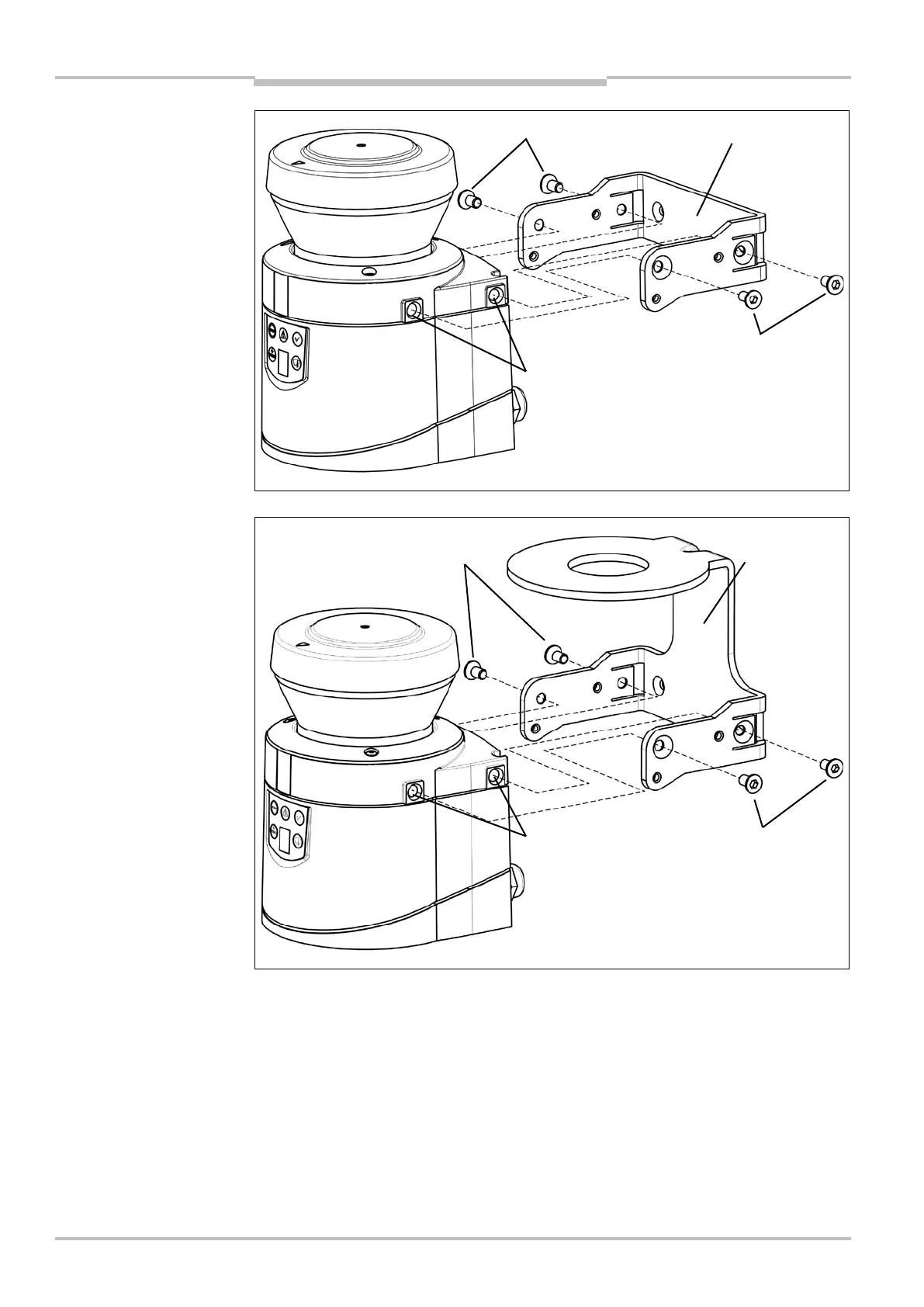

Fig. 13: Mounting with
mounting kit 1a
Fig. 14: Mounting with
mounting kit 1b incl.
protection for the optics
cover
Note
Mounting kit 1a
Threaded holes M5
×
8
Fixing screws
Mounting
kit
1b
Fixing screws
Threaded holes M5
×
8
Fixing screws
Fixing screws
