6. Save your custom webpage.
The meter will display translated content if it exists in the meter’s memory. If
translated content is not available, English is displayed.
7. Connect to your meter’s internal FTP site.
– If you have created a data viewing webpage, copy your custom webpage to
web > monitoring.
– If you have created a configuration webpage, copy your custom webpage to
web > setup.
8. Login to your meter’s webpages.
Your custom webpage is available from the webpage menu under the monitoring (data
viewing) or setup (configuration) tab.
Related Topics
• FTP
Sample data viewing webpage
You can create custom data viewing webpages using the sample webpage stored on
your meter.
The sample webpages are stored in the documents folder on your meter’s internal FTP
site.
Your meter’s Modbus register map is available from www.usa.siemens.com/pds.
If required, your meter’s ION handles document is packaged with the meter firmware
file which is available for download from www.usa.siemens.com/pds.
The data viewing webpage must be stored on your meter’s internal FTP site in the
folder for Monitoring. The custom webpage is viewed by selecting the Monitoring main
menu tab on your meter’s webpage.
Configuring the HTML code other than where described is an advanced procedure and
should only be performed by those with an advanced understanding of webpages and
how your meter processes them.

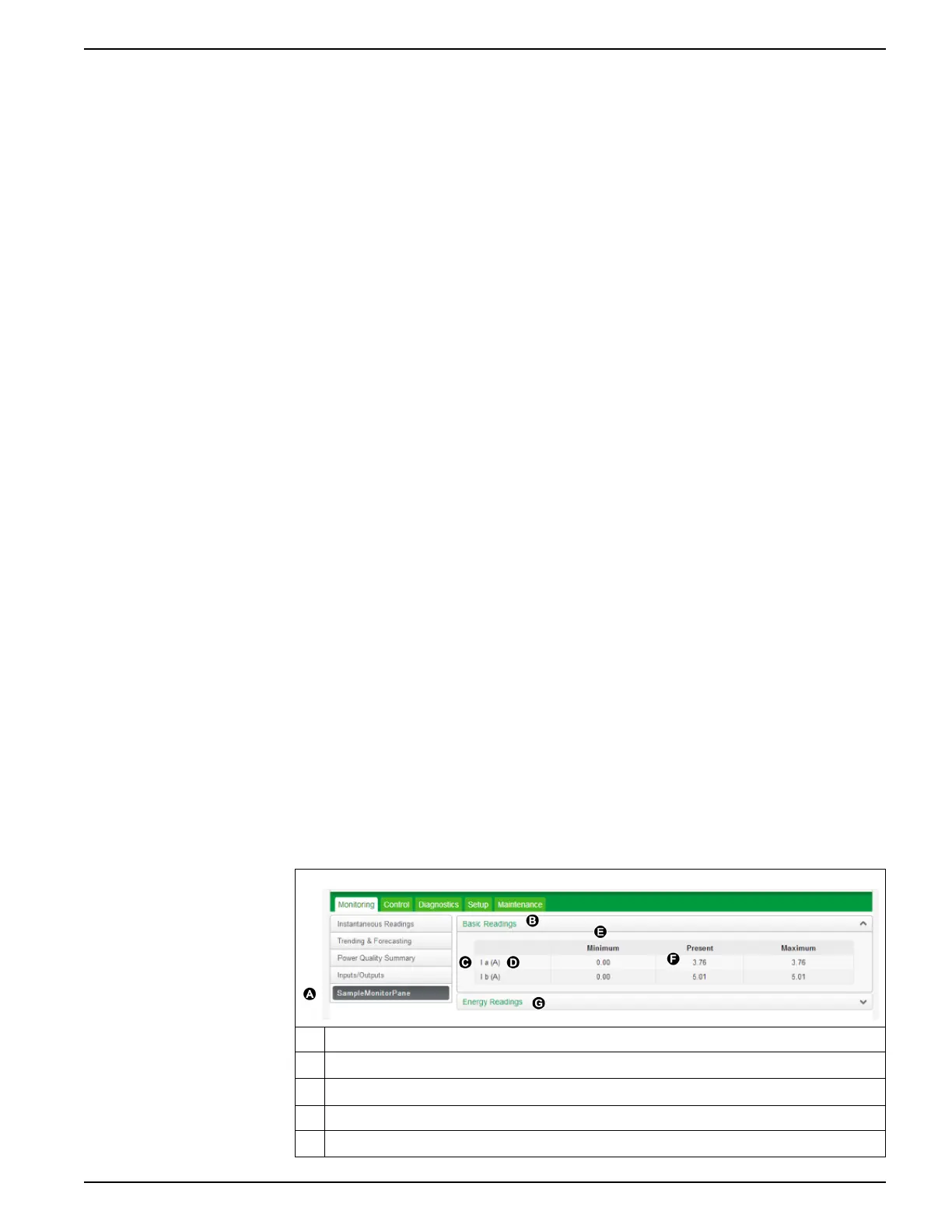

Sample webpage data viewing result
NOTE: This graphic is representative only, and your meter’s webpages may
appear different than shown.
A HTML filename
B Content pane title
C Row heading
D Units
E Column heading
