9410 series Meter display
Icon Description

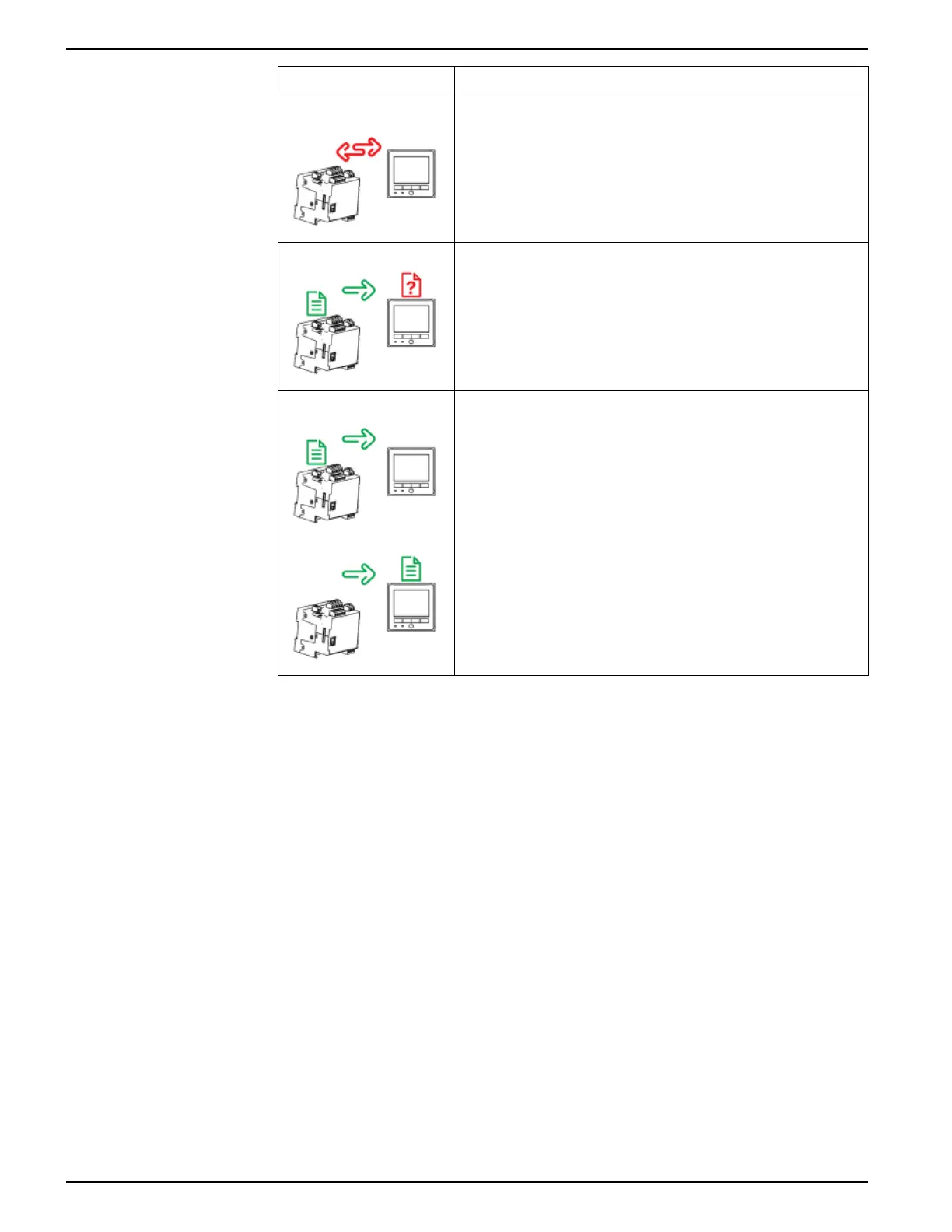

Your remote display cannot communicate to your meter. Check the
connection between your meter and the display. Check the meter’s
status LED to confirm that the meter is operating normally.
Your remote display needs updated firmware for compatibility with your
meter.
Your remote display is undergoing a firmware upgrade. Do not
disconnect your remote display from your meter.
Creating custom displays using ION Setup
You can use ION Setup to program new custom displays.
1. Start ION Setup.
2. Open the Setup Assistant for your meter.
3. Navigate to Custom Displays.
4. Select Custom Displays from the Front Panel tab and click Edit. ION Setup
loads your meter’s display information into the Display Editor screen.
5. Rename, delete, or change the order of custom displays through the Display
Editor screen. Click New to add a new display. Click Edit to bring up the Display
setup screen, where you can configure new or existing custom displays.
6. Configure your screen.
• Screen Type: Specify the number of parameters displayed on the screen.
• Screen Title: Enter the title to be shown at the top of your custom display.
7. Click Edit to select the displayed parameters. The number of parameters
displayed is determined in the Screen Type selection described above.
40 7EN05-0336-03
